User manual Electro-Voice ELX118 18" Live X Passive F.01U.170.825

Operating instructions and pdf manual for use - Electro-Voice ELX118 18" Live X Passive F.01U.170.825 User manual, User manual Electro-Voice ELX118 18" Live X Passive F.01U.170.825, Electro-Voice, ELX118, 18, Live, X, Passive, F.01U.170.825,


User manual for Electro-Voice ELX118 18" Live X Passive F.01U.170.825

Electro-Voice ELX118 18
  • Manufacturer: Electro-Voice
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - PA Speakers
  • Safety instructions
  • Startup and operation of the pa speakers
  • Tips for setting up your Electro-Voice
  • Settings and expert assistance
  • Contact Electro-Voice service
  • Troubleshooting
  • Warranty information
  • Price: 499 USD
We recommend checking out our discussion threads on the Electro-Voice ELX118 18" Live X Passive F.01U.170.825, which address similar problems with connecting and setting up PA Speakers Electro-Voice.



User manual for the Electro-Voice ELX118 18" Live X Passive F.01U.170.825

The user manual for the Electro-Voice ELX118 18" Live X Passive F.01U.170.825 provides necessary instructions for the proper use of the product Pro Audio - Live Sound - PA Speakers.

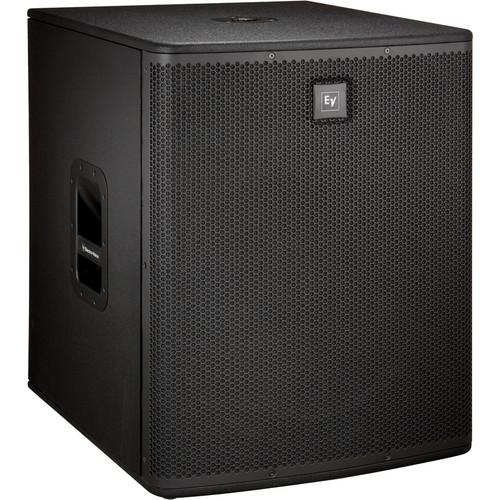

The ELX118 from Electro-Voice is a passive subwoofer that offers pro-quality bass reinforcement, and is an ideal companion for full-range loudspeakers such as the ELX112 and ELX115. The sub has an 18" woofer to provide bass frequencies as low as 35Hz. The sub has a 400W continuous (1600W peak) power handling capability to provide a strong, distortion-free performance.

The plywood cabinet has a standard 35mm pole socket for creating stacks or mounting speakers on top. A pair of NL4 Speakon connectors allow you to connect to virtually any professional sound system. The steel grille protects the driver and provides a sleek look. Integrated carrying handles provide convenient transportation.
If you own a Electro-Voice pa speakers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Electro-Voice ELX118 18" Live X Passive F.01U.170.825 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Electro-Voice ELX118 18Download user manual for Electro-Voice ELX118 18" Live X Passive F.01U.170.825
(PDF file, 1.64 MB)
Additional parameters of the Electro-Voice ELX118 18" Live X Passive F.01U.170.825:
Active or Passive Passive
Frequency Response 50-100Hz ±3dB
35-200Hz ±10dB
Power Capacity 400W Continuous, 1600W Peak
Maximum Sound Pressure Level (SPL) 134dB
Nominal Sensitivity 96dB
Impedance Nominal: 8 Ohms
Minimum: 6.7 Ohms
Coverage Omnidirectional
Low Frequency Driver 18" (457mm) Woofer
Enclosure Material 9-Ply 15mm Plywood, Internally Braced with Textured Paint, 18-Guage Powder-Coated Steel Grille, and Integrated Handles
Input Connections 2 x NL4 Speakon Connectors
Mounting 35mm Pole Socket
Dimensions (HxWxD) 26.02 x 19.96 x 22.6" (661 x 507 x 574mm)
Weight 70.11 lbs (31.8kg)
Packaging Info
Package Weight 80.0 lb
Box Dimensions (LxWxH) 26.02 x 22.6 x 19.96"
The user manual for the Electro-Voice ELX118 18" Live X Passive F.01U.170.825 can be downloaded in .pdf format if it did not come with your new pa speakers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Electro-Voice users keep a unique electronic library for Electro-Voice pa speakerss, where you can use our link to download the user manual for the Electro-Voice ELX118 18" Live X Passive F.01U.170.825.

The user manual lists all of the functions of the Electro-Voice ELX118 18" Live X Passive F.01U.170.825, all the basic and advanced features and tells you how to use the pa speakers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Electro-Voice service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Electro-Voice ELX118 18" Live X Passive F.01U.170.825. User manuals are also available on the Electro-Voice website under Pro Audio - Live Sound - PA Speakers.
