User manual for the Electro-Voice ETX-15P 15" Portable Powered F.01U.289.234
The user manual for the Electro-Voice ETX-15P 15" Portable Powered F.01U.289.234 provides
necessary instructions for the proper use of the product Pro Audio - Live Sound - PA Speakers.

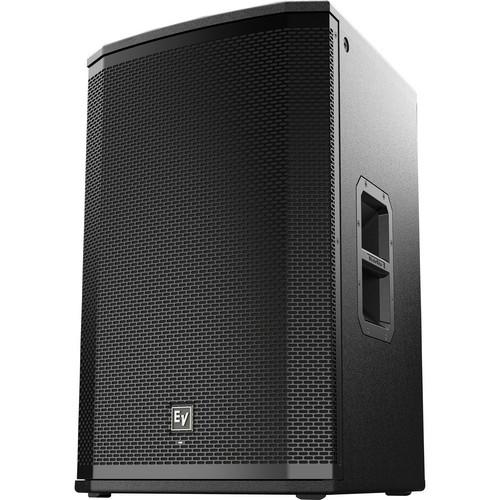

The ETX-15P 15" Portable Powered Loudspeaker from Electro-Voice is a portable powered Class-D loudspeaker that can be used as a floor monitor, mounted on a tripod, or suspended from the ceiling. It is capable of up to 2,000-watts of output for a peak SPL rating of up to 135 dB and features a 15-inch woofer and a 1.25-inch titanium high-frequency driver. The speaker's integrated DSP can be controlled via the rear panel LCD and provides EQ, boundary compensation, a limiting function, delay, and more.
Featuring Electro-Voice's SST waveguide, the EXT-15P has a uniform beamwidth, allowing for even distribution of sound thanks to the time-alignment of the high and low-frequency transducers. Sturdy construction is provided in the form of the die-cast aluminum chassis, pole cup, and handles.
|
If you own a Electro-Voice pa speakers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Electro-Voice ETX-15P 15" Portable Powered F.01U.289.234 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Electro-Voice ETX-15P 15" Portable Powered F.01U.289.234:
| Frequency Response | 48 Hz to 20 kHz (-3 dB)
40 Hz to 20 kHz (-10 dB) | | Maximum SPL | 135 dB, peak | | Coverage | 90° x 60° (H x V) | | Power Rating | 2,000 W | | Transducer | LF: 15" (380 mm)
HF: 1.25" (31.75 mm) titanium compression driver | | Crossover | 1500 Hz | | Connectors | 2x Combo XLR/TRS jacks
1x XLR Link output | | Enclosure | 0.7" (18 mm), 13-ply birch plywood with EVCoat | | Grille | 16 AWG steel with powdercoat | | Suspension | 8x M10 suspension points | | Power Consumption | 100 - 240 V, 50 - 60 Hz, 1.6 - 0.8 A | | Dimensions (HxWxD) | 27 x 17 x 18" (691 x 431 x 447 mm) | | Weight | 61.1 lb (27.7 kg) | | Package Weight | 71.4 lb | | Box Dimensions (LxWxH) | 27.5 x 20.0 x 18.2" | |
The user manual for the Electro-Voice ETX-15P 15" Portable Powered F.01U.289.234 can be downloaded in .pdf
format if it did not come with your new pa speakers, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Electro-Voice users keep a unique electronic library
for Electro-Voice pa speakerss,
where you can use our link to download the user manual for the Electro-Voice ETX-15P 15" Portable Powered F.01U.289.234.
The user manual lists all of the functions of the Electro-Voice ETX-15P 15" Portable Powered F.01U.289.234,
all the basic and advanced features and tells you how to use the pa speakers.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Electro-Voice service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Electro-Voice ETX-15P 15" Portable Powered F.01U.289.234. User manuals are also
available on the Electro-Voice website under Pro Audio - Live Sound - PA Speakers.
