User manual Electro-Voice ZLX-15 15" Two-Way Passive F.01U.272.256

Operating instructions and pdf manual for use - Electro-Voice ZLX-15 15" Two-Way Passive F.01U.272.256 User manual, User manual Electro-Voice ZLX-15 15" Two-Way Passive F.01U.272.256, Electro-Voice, ZLX-15, 15, Two-Way, Passive, F.01U.272.256,

User manual for Electro-Voice ZLX-15 15" Two-Way Passive F.01U.272.256

Electro-Voice ZLX-15 15
  • Manufacturer: Electro-Voice
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - PA Speakers
  • Safety instructions
  • Startup and operation of the pa speakers
  • Tips for setting up your Electro-Voice
  • Settings and expert assistance
  • Contact Electro-Voice service
  • Troubleshooting
  • Warranty information
  • Price: 399 USD
We recommend checking out our discussion threads on the Electro-Voice ZLX-15 15" Two-Way Passive F.01U.272.256, which address similar problems with connecting and setting up PA Speakers Electro-Voice.


User manual for the Electro-Voice ZLX-15 15" Two-Way Passive F.01U.272.256

The user manual for the Electro-Voice ZLX-15 15" Two-Way Passive F.01U.272.256 provides necessary instructions for the proper use of the product Pro Audio - Live Sound - PA Speakers.

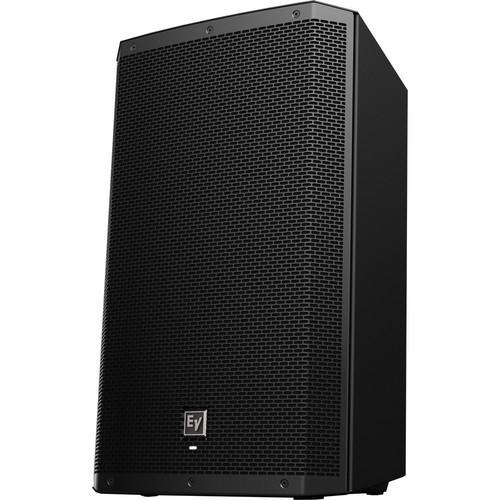

The black Electro Voice ZLX-15 15" Two-Way Passive Loudspeaker is a compact and versatile loudspeaker featuring custom engineered drivers in a rugged enclosure. The loudspeaker features a grille made of 18-gauge steel with black powder coat. Whether pole-mounted or used as a floor monitor, the loudspeaker delivers stunning sonic impact and intelligibility.
If you own a Electro-Voice pa speakers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Electro-Voice ZLX-15 15" Two-Way Passive F.01U.272.256 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Electro-Voice ZLX-15 15Download user manual for Electro-Voice ZLX-15 15" Two-Way Passive F.01U.272.256
(PDF file, 4.82 MB)
Additional parameters of the Electro-Voice ZLX-15 15" Two-Way Passive F.01U.272.256:
Specifications
    Frequency Response 56 Hz to 18 kHz

    Full space measurement, will have low frequency extension when mounted on floor or wall.
    Frequency Range 44 Hz to 20 kHz
    Sensitivity Axial: 96 dB
    Maximum SPL 126 dB
    Frequency Recommended HP: 40 Hz
    Coverage 90 x 60° (H x V)
    Power Handling 250 W continuous, 1000 W peak
    Transducer Type LF: EVS-15L, 15" (381 mm)
    HF: DH-1K
    Crossover Frequency 1.7 kHz
    Impedance Nominal: 8 Ω, Minimum: 7 Ω
    Connectors Dual NL4
    Enclosure Polypropylene
    Grille 18-gauge steel with black powder coat
    Dimensions (H x W x D) 27.0 x 17.0 x 15.0" (685.8 x 431.8 x 381.0 mm)
    Weight 36.5 lb (16.5 kg)
    Packaging Info
    Package Weight 49.25 lb
    Box Dimensions (LxWxH) 29.0 x 19.0 x 18.45"
    The user manual for the Electro-Voice ZLX-15 15" Two-Way Passive F.01U.272.256 can be downloaded in .pdf format if it did not come with your new pa speakers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Electro-Voice users keep a unique electronic library for Electro-Voice pa speakerss, where you can use our link to download the user manual for the Electro-Voice ZLX-15 15" Two-Way Passive F.01U.272.256.

    The user manual lists all of the functions of the Electro-Voice ZLX-15 15" Two-Way Passive F.01U.272.256, all the basic and advanced features and tells you how to use the pa speakers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Electro-Voice service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Electro-Voice ZLX-15 15" Two-Way Passive F.01U.272.256. User manuals are also available on the Electro-Voice website under Pro Audio - Live Sound - PA Speakers.
