User manual Electro-Voice ZXA1 8" 2-Way 800W Compact F.01U.265.608

Operating instructions and pdf manual for use - Electro-Voice ZXA1 8" 2-Way 800W Compact F.01U.265.608 User manual, User manual Electro-Voice ZXA1 8" 2-Way 800W Compact F.01U.265.608, Electro-Voice, ZXA1, 8, 2-Way, 800W, Compact, F.01U.265.608,


User manual for Electro-Voice ZXA1 8" 2-Way 800W Compact F.01U.265.608

Electro-Voice ZXA1 8
  • Manufacturer: Electro-Voice
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - PA Speakers
  • Safety instructions
  • Startup and operation of the pa speakers
  • Tips for setting up your Electro-Voice
  • Settings and expert assistance
  • Contact Electro-Voice service
  • Troubleshooting
  • Warranty information
  • Price: 499 USD
We recommend checking out our discussion threads on the Electro-Voice ZXA1 8" 2-Way 800W Compact F.01U.265.608, which address similar problems with connecting and setting up PA Speakers Electro-Voice.



User manual for the Electro-Voice ZXA1 8" 2-Way 800W Compact F.01U.265.608

The user manual for the Electro-Voice ZXA1 8" 2-Way 800W Compact F.01U.265.608 provides necessary instructions for the proper use of the product Pro Audio - Live Sound - PA Speakers.

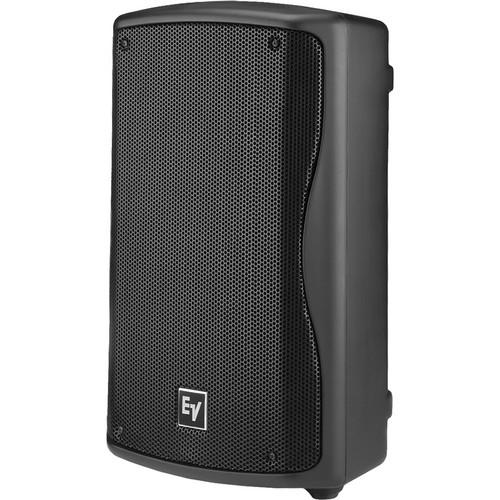

The ZXA1 from Electro Voice is a compact and lightweight powered loudspeaker, ideal for use in clubs, houses of worship, and more. The cabinet houses an 8" high-output woofer and a 1" true compression tweeter to provide a wide frequency response. The internal 800W power amplifier delivers a high-energy performance with low distortion for crisp, clear audio. The speaker provides a 90 x 50° coverage pattern, and has a rotatable horn design for terrific flexibility.

The rear panel has mic and line level inputs, allowing you to connect a wide variety of microphones, instruments, music players, mixers, and more. A selectable high-pass filter allows you to use the loudspeaker with a subwoofer for enhanced bass response. The speaker weighs under 20 pounds and has an integrated handle for easy mobility. A pole mount socket lets you mount the unit on a standard speaker pole.
If you own a Electro-Voice pa speakers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Electro-Voice ZXA1 8" 2-Way 800W Compact F.01U.265.608 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Electro-Voice ZXA1 8Download user manual for Electro-Voice ZXA1 8" 2-Way 800W Compact F.01U.265.608
(PDF file, 3.6 MB)
Additional parameters of the Electro-Voice ZXA1 8" 2-Way 800W Compact F.01U.265.608:
Specifications
    Active or Passive Active
    Frequency Response 48Hz - 20kHz (-10dB)
    Power Capacity 800W
    Maximum Sound Pressure Level (SPL) 123dB
    Nominal Sensitivity Not Specified by Manufacturer
    Crossover 1.8kHz
    Low Frequency Driver 8" (203mm) Woofer
    High Frequency Driver 1" (25mm) Compression Tweeter
    Enclosure Material High-Impact Polystyrene with Galvanized Steel Grill
    Connectors 1 x XLR Mic Input
    1 x XLR/TRS Combo Line Input
    1 x XLR Output
    1 x AC Power Input
    Dimensions (HxWxD) 18 x 11.1 x 10.4" (457 x 282 x 264mm)
    Weight 19 lbs (8.6kg)
    Packaging Info
    Package Weight 23.0 lb
    Box Dimensions (LxWxH) 19.0 x 13.1 x 12.0"
    The user manual for the Electro-Voice ZXA1 8" 2-Way 800W Compact F.01U.265.608 can be downloaded in .pdf format if it did not come with your new pa speakers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Electro-Voice users keep a unique electronic library for Electro-Voice pa speakerss, where you can use our link to download the user manual for the Electro-Voice ZXA1 8" 2-Way 800W Compact F.01U.265.608.

    The user manual lists all of the functions of the Electro-Voice ZXA1 8" 2-Way 800W Compact F.01U.265.608, all the basic and advanced features and tells you how to use the pa speakers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Electro-Voice service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Electro-Voice ZXA1 8" 2-Way 800W Compact F.01U.265.608. User manuals are also available on the Electro-Voice website under Pro Audio - Live Sound - PA Speakers.
