User manual for the Elektron Octatrack Dynamic Performance Sampler OCTATRACK DPS-1
The user manual for the Elektron Octatrack Dynamic Performance Sampler OCTATRACK DPS-1 provides
necessary instructions for the proper use of the product Pro Audio - Musical Instruments - Sampling Workstations.

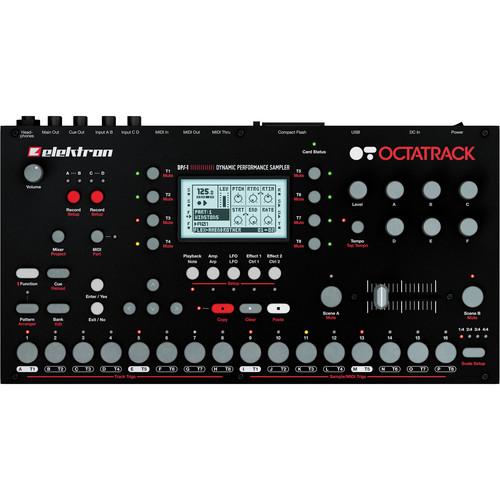

The Elektron Octatrack Dynamic Performance Sampler is intuitive, powerful yet portable hardware designed to deliver flexible sampling, loop manipulation, effects processing and pattern sequencing for producers, remixers, live performances, DJs and more. The Octatrack reads samples from a compact flash card or USB 2.0 device, and features up to 80MB of internal RAM. There are 4 audio inputs for sampling from external audio devices and instruments.
|
If you own a Elektron sampling workstations and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Elektron Octatrack Dynamic Performance Sampler OCTATRACK DPS-1 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Elektron Octatrack Dynamic Performance Sampler OCTATRACK DPS-1:
| Sequencer | 8 internal tracks
16 banks per project 256 patterns per project
8 arrangements per project 4 parts per bank
16 scenes per part Supports swing and slide
Microtiming Unlimited parameter locks on each pattern step
Full real-time control 8 Track external MIDI sequencer | | Software | Machines:
Flex Machines (RAM-based Sample Playback) Static Machines (Streaming Playback from Compact Flash)
Thru Machines (External Input Playback) Neighbor Machines (Track Chaining Playback) | | Effects | Spatializer
Spring Reverb
Dark Reverb
12/24dB Multi Mode Filter
2-band Parametric EQ DJ-style Kill EQ
2-10 Stage Phaser Flanger
2-5 Tap Chorus Delay with Repeat Functionality
Gatebox Plate Reverb Compressor
Comb Filter | | Audio Output | Headphones out level: +15dBu
Main/cue outputs level: +10dBu Output impedance: 560 Ω unbalanced
S/N ratio: 102dBFS (20Hz - 20kHz) | | Audio Inputs | Input level: +8dBu maximum
Audio input impedance: 9k Ω S/N Ratio: 99dBFS (20Hz - 20kHz) | | Connections | MIDI In/Out/Thru 4x 1/4" impedance balanced audio out jacks
4x 1/4" audio in jacks 1x 1/4" stereo headphone jack USB 2.0 port | | Hardware | 128x64 pixel backlit LCD
Compact Flash card reader Infinium optical crossfader
80MB RAM per project Advanced triple DSP system
44.1kHz, 24-bit D/A and A/D converters Flash-EEPROM upgradable OS | | Construction | Sturdy steel chassis | | Power Supply | Unit power consumption: 8W typical, 18W maximum
Recommended power supply: 6 VDC, 3A PSU-2 Electrical Specs:
Input voltage range: 100-240V (43-60Hz) Input connector: IEC320-C8 (2 prong)
In-rush current: 50A maximum Output voltage: 5.7-6.3 VDC
Output current: 3.5A maximum Output connector: 5.5 x 2.5mm DC plug, power at center. | | Dimensions (WxDxH) | 13.4 x 7 x 2.4" (340 x 181 x 63mm) | | Weight | 5.2lb (2.4kg) | | Package Weight | 8.05 lb | | Box Dimensions (LxWxH) | 18.3 x 9.1 x 4.4" | |
