User manual for the Elvid StudioVision Dual 7" Monitor Rackmount SRM-7X2-LT

The user manual for the Elvid StudioVision Dual 7" Monitor Rackmount SRM-7X2-LT provides necessary instructions for the proper use of the product Professional Video - Monitors - Production Monitors.

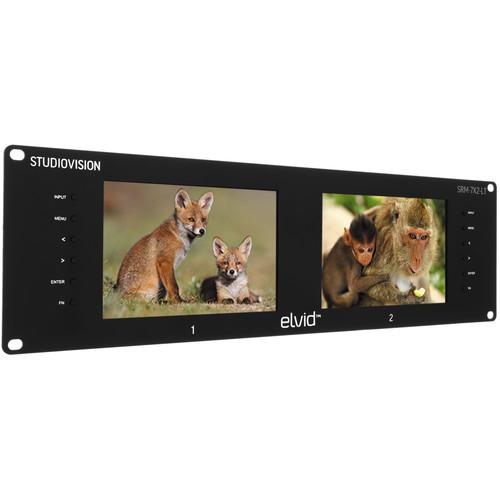

Monitor two signals in high image quality with Elvid's StudioVision Dual 7" Monitor Rackmount for 19" racks. View your images in 1280 x 800 resolution and 800:1 contrast ratio. Switch between simultaneously active 3G-SDI, HDMI, and analog inputs per monitor, and loop out all the signals at the same time. Operate each monitor using dedicated front panel buttons or with the included control software via an Ethernet connection. Apply Pixel-to-Pixel, Picture-in-Picture, Zoom, H/V Delay, and altogether about a dozen features. And connect your tally system to a 15-pin tally port.

The StudioVision has a robust build and sleek design. The front panel also features an assignable function button for each monitor. The Picture-in-Picture feature can also be set as Picture-by-Picture, which shows the images side-by-side and scaled, or as Picture-over-Picture, which displays images side-by-side and stretched.
If you own a Elvid production monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Elvid StudioVision Dual 7" Monitor Rackmount SRM-7X2-LT in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Elvid StudioVision Dual 7Download user manual for Elvid StudioVision Dual 7" Monitor Rackmount SRM-7X2-LT
(PDF file, 0.85 MB)
Additional parameters of the Elvid StudioVision Dual 7" Monitor Rackmount SRM-7X2-LT:
Specifications
    Display 2 x 7" (17.8 cm) LED backlit IPS panels
    Aspect Ratios 16:10, 16:9, 4:3, 1.85:1, 2.35:1
    Resolution 1280 x 800
    Contrast Ratio 800:1
    Brightness 400 cd/m²
    Viewing Angle 178°/178°
    Inputs Per Monitor:
    1x 3G-SDI
    1x HDMI
    1x Composite on BNC
    1x Component on BNC

    For Both Monitors:
    1x Tally on DB-15 connector
    1x RJ-45
    Outputs Per Monitor:
    1x 3G-SDI loop output
    1x HDMI loop output
    1x Composite loop output on BNC
    1x Component loop output on BNC
    HDCP Compliant Yes
    Input Voltage 7 - 24 VDC, 1.5 A
    Current 1500 mA
    Power Consumption ≤ 18 W
    Dimensions 18.9 x 5.3 x 1" (48 x 13.5 x 2.5 cm)
    Weight 6.4 lb (2.9 kg)
    Packaging Info
    Package Weight 6.4 lb
    Box Dimensions (LxWxH) 23.386 x 7.008 x 3.937"
    The user manual for the Elvid StudioVision Dual 7" Monitor Rackmount SRM-7X2-LT can be downloaded in .pdf format if it did not come with your new production monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Elvid users keep a unique electronic library for Elvid production monitorss, where you can use our link to download the user manual for the Elvid StudioVision Dual 7" Monitor Rackmount SRM-7X2-LT.

    The user manual lists all of the functions of the Elvid StudioVision Dual 7" Monitor Rackmount SRM-7X2-LT, all the basic and advanced features and tells you how to use the production monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Elvid service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Elvid StudioVision Dual 7" Monitor Rackmount SRM-7X2-LT. User manuals are also available on the Elvid website under Professional Video - Monitors - Production Monitors.
