User manual for the EOTech Model 512 Holographic Sight with Laser Battery 512.LBC
The user manual for the EOTech Model 512 Holographic Sight with Laser Battery 512.LBC provides
necessary instructions for the proper use of the product Optics - Riflescopes & Sights - Red Dot/Holographic Sights.

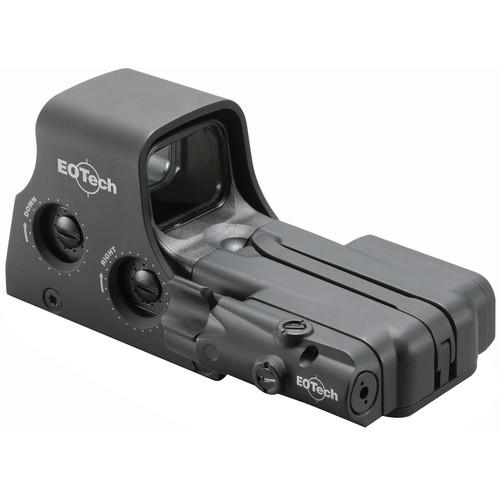

The 2015 edition of EOTech's black Model 512 Holographic Weapon Sight (HWS) features a visible red aiming laser located on the battery case to provide enhanced target acquisition and tracking speed when mounted on small to medium caliber platforms, and is intended for close to medium encounters. It is designed with an illuminated holographic red dot reticle and anti-reflection multicoated optics, with a wide 90' field of view at 100 yards and an unlimited eye relief to ensure users maintain their situational awareness, especially when moving quickly.
If you own a EOTech red dot/holographic sights and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the EOTech Model 512 Holographic Sight with Laser Battery 512.LBC in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the EOTech Model 512 Holographic Sight with Laser Battery 512.LBC:
Specifications
Magnification
1x
Objective Lens Diameter
1.2" x 0.85" / 3.0 x 2.3 cm
Field of View
90' @ 100 yd / 30 m @ 100 m, at a 3" eye relief
Exit Pupil Diameter
N/A
Mounting System
Picatinny/Weaver rail
Impact Point Correction
0.5 MOA per click
Maximum Windage/Elevation Adjustment
±40 MOA
Aiming Dot
Class 3R laser, visible red Peak power: 5mW Wavelength: 635nm
Weatherproofing
Submersible to 10' / 3.0 m Fog resistant
Battery
2 x AA Lithium, Alkaline, or Rechargeable
Runtime
Lithium: 60 hr, continuous at setting #12 with laser on Alkaline: 50 hr, continuous at setting #12 with laser on
Dimensions
5.6 x 2.8 x 2.5" / 14.3 x 7.0 x 6.4 cm
Weight
12.6 oz / 357 g
The user manual for the EOTech Model 512 Holographic Sight with Laser Battery 512.LBC can be downloaded in .pdf
format if it did not come with your new red dot/holographic sights, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other EOTech users keep a unique electronic library
for EOTech red dot/holographic sightss,
where you can use our link to download the user manual for the EOTech Model 512 Holographic Sight with Laser Battery 512.LBC.
The user manual lists all of the functions of the EOTech Model 512 Holographic Sight with Laser Battery 512.LBC,
all the basic and advanced features and tells you how to use the red dot/holographic sights.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from EOTech service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the EOTech Model 512 Holographic Sight with Laser Battery 512.LBC. User manuals are also
available on the EOTech website under Optics - Riflescopes & Sights - Red Dot/Holographic Sights.
