User manual Epiphan AV.io SDI Portable Video Grabber ESP0964

Operating instructions and pdf manual for use - Epiphan AV.io SDI Portable Video Grabber ESP0964 User manual, User manual Epiphan AV.io SDI Portable Video Grabber ESP0964, Epiphan, AV.io, SDI, Portable, Video, Grabber, ESP0964, Video


User manual for Epiphan AV.io SDI Portable Video Grabber ESP0964

Overall rating 4.0
Overall Rating: 4.0

80% of respondents would recommend this to a friend.

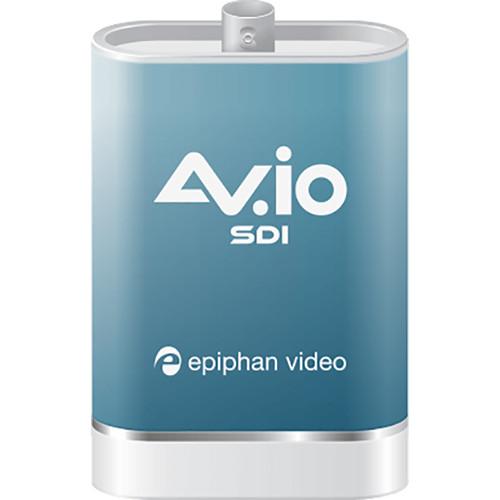

Epiphan  AV.io SDI Portable Video Grabber ESP0964
  • Manufacturer: Epiphan
  • Basic description and contents of package
  • Product classification: Professional Video - Post Production - Computer Hardware
  • Safety instructions
  • Startup and operation of the computer hardware
  • Tips for setting up your Epiphan
  • Settings and expert assistance
  • Contact Epiphan service
  • Troubleshooting
  • Warranty information
  • Price: 380 USD
We recommend checking out our discussion threads on the Epiphan AV.io SDI Portable Video Grabber ESP0964, which address similar problems with connecting and setting up Computer Hardware Epiphan.



User manual for the Epiphan AV.io SDI Portable Video Grabber ESP0964

The user manual for the Epiphan AV.io SDI Portable Video Grabber ESP0964 provides necessary instructions for the proper use of the product Professional Video - Post Production - Computer Hardware.

The AV.io SDI Portable Video Grabber from Epiphan can be used with your favorite webcam capture application on Windows, Mac, and Linux systems for high-quality video capture from any 3G-SDI, HD-SDI, or SD-SDI video source. It also captures audio from 3G-SDI and HD-SDI too. The AV.io SDI transfers uncompressed video at 60 fps with resolutions up to 1920 x 1080 over USB 3.0.
If you own a Epiphan computer hardware and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Epiphan AV.io SDI Portable Video Grabber ESP0964 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Epiphan  AV.io SDI Portable Video Grabber ESP0964Download user manual for Epiphan AV.io SDI Portable Video Grabber ESP0964
(PDF file, 1.08 MB)
Additional parameters of the Epiphan AV.io SDI Portable Video Grabber ESP0964:
Specifications
Interface USB 3.0 and USB 2.0.
Drivers Operating System: UVC and UAC device
Connectors 1 x BNC
1 x USB 3.0 Type-B
Input 3G-SDI, HD-SDI, SD-SDI (including embedded audio for 3G-SDI and HD-SDI)
Input Resolution Up to 1920 x 1080
Output Frame Rate Output Resolution:
640 x 360 @ 15, 30, 60 fps
640 x 480 @ 15, 30, 60 fps
960 x 540 @ 15, 30, 60 fps
1280 x 720 @ 15, 30, 60 fps
1920 x 1080 @ 15, 30, 60 fps
Output Colorspace YUV 4:2:2
Audio Input: 16 and 24-bit PCM encoded audio 48 kHz (audio capture supported from 3G-SDI and HD-SDI)
Output: 16-bit 48 kHz stereo audio
LED One LED to indicate the status of the AV.io SDI (power, readiness, and operation in progress)
OS Support Windows 7, 8.1, 10; Mac OS X 10.10 and up; Linux distribution with kernel 3.5.0 or higher supported
Dimensions 3.54 x 2.36 x 0.91" (9.0 x 6.0 x 2.3 cm)
Packaging Info
Package Weight 1.0 lb
Box Dimensions (LxWxH) 10.8 x 6.9 x 2.7"
The user manual for the Epiphan AV.io SDI Portable Video Grabber ESP0964 can be downloaded in .pdf format if it did not come with your new computer hardware, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Epiphan users keep a unique electronic library for Epiphan computer hardwares, where you can use our link to download the user manual for the Epiphan AV.io SDI Portable Video Grabber ESP0964.

The user manual lists all of the functions of the Epiphan AV.io SDI Portable Video Grabber ESP0964, all the basic and advanced features and tells you how to use the computer hardware. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Epiphan service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Epiphan AV.io SDI Portable Video Grabber ESP0964. User manuals are also available on the Epiphan website under Professional Video - Post Production - Computer Hardware.
