User manual for the Epson BrightLink Pro 1420Wi Interactive WXGA 3LCD V11H612520T
The user manual for the Epson BrightLink Pro 1420Wi Interactive WXGA 3LCD V11H612520T provides
necessary instructions for the proper use of the product A/V Presentation - Projectors - Multimedia Projectors.

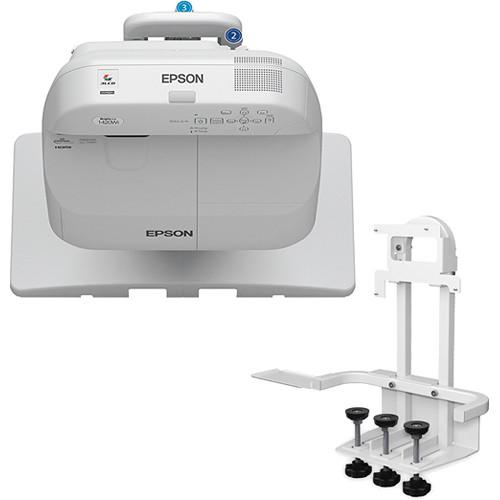

The Epson BrightLink Pro 1420Wi Interactive WXGA 3LCD Projector with Table Mount delivers 3300 lumens of white, color, and interactive brightness with a low noise level of only 28 dB when using the Eco-mode. To ensure sharp detail with deep blacks and brilliant whites, the BrightLink Pro 1420Wi provides an impressive 10,000:1 contrast ratio. The projector also features high-definition WXGA 1280 x 800 native resolution, a 3LCD, 3-chip projection system, LAN connectivity for remote management/control, and a 245W UHE lamp that features a long life up to 6000 hours in Eco-mode. It also supports wireless iOS/Android mobile device connectivity and wireless LAN hook-up thanks to the included wireless module. Epson's free iProjection App for iOS or Android is also required for wireless smartphone/tablet connection.
|
If you own a Epson multimedia projectors and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Epson BrightLink Pro 1420Wi Interactive WXGA 3LCD V11H612520T in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Epson BrightLink Pro 1420Wi Interactive WXGA 3LCD V11H612520T:
| Display System | 3-Chip LCD | | Native Resolution | WXGA - 1280 x 800 | | Supported Resolutions | VGA - 640 x 580
SVGA - 800 x 600
SXGA - 1152 x 864
XGA - 1024 x 768
SXGA2 - 1280 x 960
SXGA3 - 1280 x 1024
WXGA 60-1 - 1280 x 768
WXGA+ - 1360 x 768
WXGA+ - 1440 x 900
WSXGA+ - 1440 x 900
WXGA++ - 1600 x 900 | | Format | NTSC
NTSC 4.43
PAL
PAL M
PAL N
PAL 60
SECAM | | Pixels | 3,072,000 | | Brightness | Color: 3300 Lumens
White: 3300 Lumens | | Aspect Ratio | Native: 16:10
Supported: 16:9
Supported: 4:3 | | Contrast Ratio | 10000:1 | | Color Range | 1 Billion | | Focus | Fixed | | Lens | F 1.8 (f = 3.71 mm) | | Zoom | Digital: 1-1.35x | | Throw Ratio | .27 - 0.37:1 | | Projection Size | 60 - 100" / 152.40 - 254.00 cm | | Keystone Correction | Manual: Vertical: ± 3°
Manual: Horizontal: ± 3° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-in Speaker | 16 W (Mono) | | Closed Captioning | Yes | | Inputs/Outputs | 1x HDMI with MHL Support Audio/Video (Input)
1x HDMI Audio/Video (Input)
1x 15-pin VGA Video (Input)
1x 15-pin VGA Video (Input/Output)
1x S-Video Video (Input)
1x RCA Composite Video (Input)
3x 1/8" (3.5 mm) Mini Audio (Input)
1x 1/8" (3.5 mm) Mini Microphone (Input)
1x 1/8" (3.5 mm) Mini Audio (Output)
1x 1/8" (3.5 mm) Mini Control (Input)
1x 1/8" (3.5 mm) Mini Control (Output)
1x USB Type-A Female
1x USB Type-B Female
1x Ethernet LAN
1x RS-232C Control | | Lamp (Bulb) | 1x UHE | | Watts | 245 W | | Life | Normal Mode: 4000 Hours
Eco Mode: 6000 Hours | | Fan Noise | Normal Mode: 35 dB
Eco Mode: 28 dB | | Remote Control | Yes | | Security | Cable Lock Slot
Password Protection
Security Bar | | System Requirements | Windows
Mac- OS X 10.5, 10.6, 10.7, 10.8, 10.9
| | Power Requirements | 100-240 VAC +/- 10%, 50/60 Hz | | Power Consumption | Normal Mode: 376 W
Standby Mode (Network on): 4.3 W
Standby Mode (Network off): .33 W | | Temperature | Operating
41 to 95°F (5 to 35°C) | | Dimensions (WxHxD) | 14.5 x 7.5 x 14.8" / 368.3 x 190.5 x 375.9 mm without feet | | Weight | 12.3 lb / 5.58 kg without slide plate
14.1 lb / 6.40 kg with slide plate | |
