User manual Epson Home Cinema 3500 1080p 3LCD Projector V11H651020

Operating instructions and pdf manual for use - Epson Home Cinema 3500 1080p 3LCD Projector V11H651020 User manual, User manual Epson Home Cinema 3500 1080p 3LCD Projector V11H651020, Epson, Home, Cinema, 3500, 1080p, 3LCD, Projector, V11H651020,


User manual for Epson Home Cinema 3500 1080p 3LCD Projector V11H651020

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.

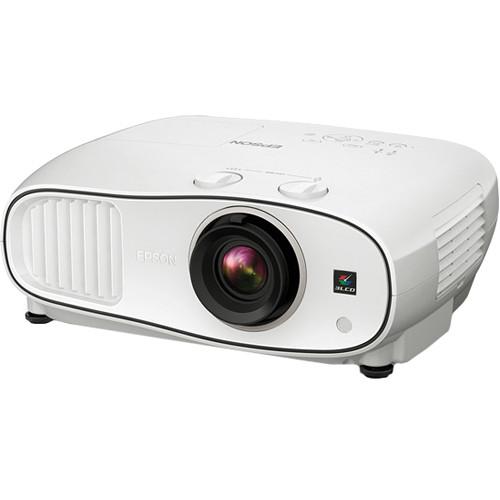

Epson Home Cinema 3500 1080p 3LCD Projector V11H651020
  • Manufacturer: Epson
  • Basic description and contents of package
  • Product classification: A/V Presentation - Projectors - Home Theater Projectors
  • Safety instructions
  • Startup and operation of the home theater projectors
  • Tips for setting up your Epson
  • Settings and expert assistance
  • Contact Epson service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Epson Home Cinema 3500 1080p 3LCD Projector V11H651020, which address similar problems with connecting and setting up Home Theater Projectors Epson.



User manual for the Epson Home Cinema 3500 1080p 3LCD Projector V11H651020

The user manual for the Epson Home Cinema 3500 1080p 3LCD Projector V11H651020 provides necessary instructions for the proper use of the product A/V Presentation - Projectors - Home Theater Projectors.

Bringing the movie theater experience to your living room, the Epson Home Cinema 3500 1080p 3LCD Projector supports Full HD in both 2D and 3D and features a brightness of 2500 lumens. A 1.6x zoom, 1.32 to 2.15:1 throw ratio, and vertical and horizontal lens shift mean this adaptable projector can accommodate many different room and screen sizes, and is suitable for screens up to 300" diagonal. Not only can the projector accept video in its native 1080p, but it can also take a range of non-native resolutions from 480i up to WXGA (1280 x 800) thanks to internal scaling.

The Home Cinema 3500 features multiple inputs so that you can connect it to all sorts of devices, from Blu-ray players to computers. There are two HDMI inputs, one with MHL support so that you can keep your mobile device's battery topped up while it's plugged in. Next is a component input for analog SD and HD devices, which sits alongside a composite input for legacy SD equipment such as VCRs. A VGA port is provided, as well, and is mainly used for connecting computers that lack HDMI output.

An IR remote is included, plus there is RS-232 for integrating the projector with automation systems such as Crestron.
If you own a Epson home theater projectors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Epson Home Cinema 3500 1080p 3LCD Projector V11H651020 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Epson Home Cinema 3500 1080p 3LCD Projector V11H651020Download user manual for Epson Home Cinema 3500 1080p 3LCD Projector V11H651020
(PDF file, 2.59 MB)
Additional parameters of the Epson Home Cinema 3500 1080p 3LCD Projector V11H651020:
Specifications
    Image Display
    Display System 3LCD: Epson Poly-silicon TFT active matrix; 0.61"-wide panel with MLA
    Native Resolution 1920 x 1080
    Supported Resolutions 2D:
    WXGA at 60 Hz
    WXGA
    SXGA
    XGA
    SVGA
    VGA

    480i
    576i
    480p
    576p

    3D:
    720p at 50/60 Hz
    1080i at 50/60 Hz
    1080p at 50/60/24 Hz
    Standard NTSC, NTSC4.43, PAL, M-PAL, N-PAL, PAL60, SECAM
    3D Support Yes
    Brightness Color Brightness: 2500 lumens
    White Brightness: 2500 lumens
    Aspect Ratio Native: 16:9
    Supported: 16:9, 4:3
    Contrast Ratio Dynamic: Up to 70,000
    Color Range 1.07 billion
    Color Processing 10-bit
    Lens
    Lens Aperture: f/1.51 to 1.99
    Focal Length: 18.2 to 29.2mm
    Zoom Optical: 1.6x (manual)
    Throw Ratio 1.32 to 2.15:1
    Lens Shift Vertical: 60% maximum (up and down)
    Horizontal: 24% maximum (left and right)
    Image Size 30 to 300" / 76.2 to 762 cm
    Projection Distance 29 to 47.3' / 8.8 to 14.4 m
    Features
    Keystone Correction Vertical: ±30 degrees (auto)
    Horizontal: ±30 degrees (slide bar)
    Projection Method Front, rear, ceiling mount
    Color Modes Auto, Dynamic, Living Room, Natural, Cinema, 3D Dynamic, 3D Cinema
    Built-in Speaker 2 x 10 W
    Remote Control Yes
    Security Kensington Security Lock Port
    Connectivity
    Inputs 1 x HDMI with MHL
    1 x HDMI
    1 x Component video on 3 x RCA
    1 x Composite videe on RCA
    1 x Stereo audio on 2 x RCA
    USB 1 x USB type A female for slideshows, wireless LAN module, and firmware updates
    1 x Mini-USB type B female for service
    Control 1 x RS-232C
    Low Voltage Control 1 x LVC trigger output
    Remote Control
    Remote Receiver Locations From and rear
    Operating Angle ±30°
    Operating Distance Up to 32' / 9.8 m
    General
    Lamp 250 W UHE
    Lamp Life ECO Mode: Up to 5000 hours
    Normal Mode: Up to 3500 hours
    Fan Noise 24 to 35 dB
    Power Requirements 100 to 240 VAC ±10%, 50/60 Hz
    Power Consumption ECO Mode: 296 W
    Normal Mode: 385 W
    Standby: 0.29 W
    Operating Temperature 41 to 95°F / 5 to 35°C
    Dimensions With Feet: 16.1 x 12.6 x 6.4" / 40.9 x 32 x 16.3 cm
    Weight 14.9 lb / 6.8 kg
    Packaging Info
    Package Weight 20.8 lb
    Box Dimensions (LxWxH) 19.0 x 19.0 x 9.0"
    The user manual for the Epson Home Cinema 3500 1080p 3LCD Projector V11H651020 can be downloaded in .pdf format if it did not come with your new home theater projectors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Epson users keep a unique electronic library for Epson home theater projectorss, where you can use our link to download the user manual for the Epson Home Cinema 3500 1080p 3LCD Projector V11H651020.

    The user manual lists all of the functions of the Epson Home Cinema 3500 1080p 3LCD Projector V11H651020, all the basic and advanced features and tells you how to use the home theater projectors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Epson service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Epson Home Cinema 3500 1080p 3LCD Projector V11H651020. User manuals are also available on the Epson website under A/V Presentation - Projectors - Home Theater Projectors.
