User manual Epson PowerLite 4855WU WUXGA 3LCD Projector V11H543120

Operating instructions and pdf manual for use - Epson PowerLite 4855WU WUXGA 3LCD Projector V11H543120 User manual, User manual Epson PowerLite 4855WU WUXGA 3LCD Projector V11H543120, Epson, PowerLite, 4855WU, WUXGA, 3LCD, Projector, V11H543120,


User manual for Epson PowerLite 4855WU WUXGA 3LCD Projector V11H543120

Overall rating 4.0
Overall Rating: 4.0

80% of respondents would recommend this to a friend.

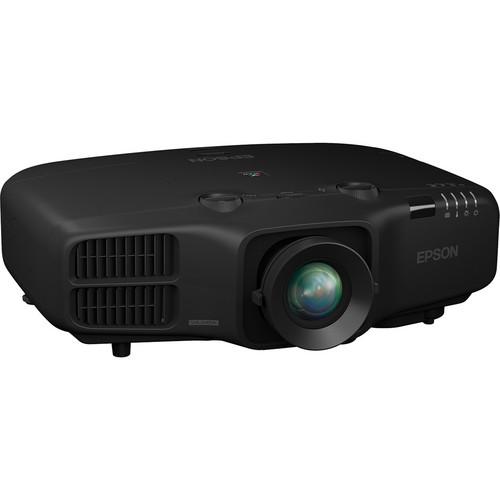

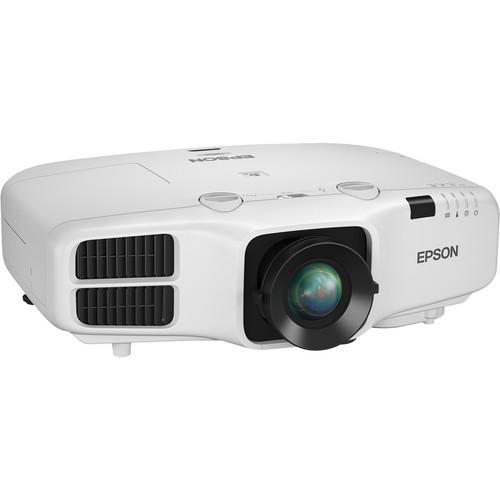

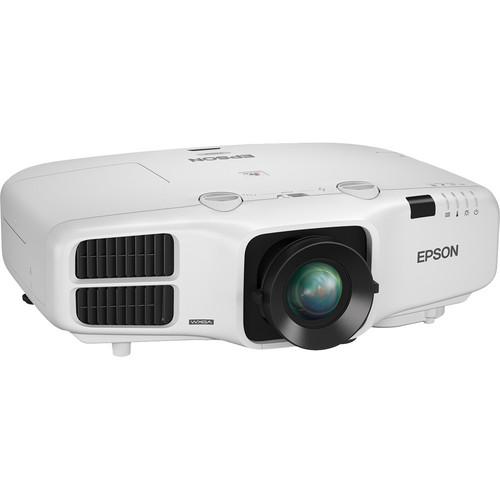

Epson PowerLite 4855WU WUXGA 3LCD Projector V11H543120
  • Manufacturer: Epson
  • Basic description and contents of package
  • Product classification: A/V Presentation - Projectors - Multimedia Projectors
  • Safety instructions
  • Startup and operation of the multimedia projectors
  • Tips for setting up your Epson
  • Settings and expert assistance
  • Contact Epson service
  • Troubleshooting
  • Warranty information
Epson PowerLite 4855WU WUXGA 3LCD Projector V11H543120 Epson PowerLite 4855WU WUXGA 3LCD Projector V11H543120 Epson PowerLite 4855WU WUXGA 3LCD Projector V11H543120 Epson PowerLite 4855WU WUXGA 3LCD Projector V11H543120
Click to enlarge image

We recommend checking out our discussion threads on the Epson PowerLite 4855WU WUXGA 3LCD Projector V11H543120, which address similar problems with connecting and setting up Multimedia Projectors Epson.



User manual for the Epson PowerLite 4855WU WUXGA 3LCD Projector V11H543120

The user manual for the Epson PowerLite 4855WU WUXGA 3LCD Projector V11H543120 provides necessary instructions for the proper use of the product A/V Presentation - Projectors - Multimedia Projectors.

The PowerLite 4855WU WUXGA 3LCD Projector from Epson provides brilliant color and high image quality with 4000 lumens of color brightness and 4000 lumens of white brightness. It renders high-resolution imagery via a 3-chip optical engine with 3LCD technology and native WUXGA 1920 x 1200 resolution.

The 4855WU has an international 100 to 240 VAC, 50 / 60 Hz power supply, and it can handle NTSC, PAL, and SECAM TV signals. It can also project 720p, 1080i, and 1080p high-definition signals. This projector also features flexible installation with horizontal and vertical lens shift, point and arc correction, and more. Advanced digital connectivity, including HDMI and DisplayPort, makes it easy to display content from nearly any device.
If you own a Epson multimedia projectors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Epson PowerLite 4855WU WUXGA 3LCD Projector V11H543120 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Epson PowerLite 4855WU WUXGA 3LCD Projector V11H543120Download user manual for Epson PowerLite 4855WU WUXGA 3LCD Projector V11H543120
(PDF file, 3.12 MB)
Additional parameters of the Epson PowerLite 4855WU WUXGA 3LCD Projector V11H543120:
Image Display
Display System 3-Chip Polysilicon TFT LCD
Native Resolution WUXGA - 1920 x 1200
Supported Resolutions VGA - 640 x 480
SVGA - 800 x 600
SXGA - 1280 x 1024
SXGA+ - 1400 x 1050
Format NTSC 4.43
PAL 60, M, N
SECAM
HDTV Compatibility 720p
1080i
1080p
Pixels 2,304,000
Brightness Normal Mode: 4000 Lumens
Uniformity 90%
Aspect Ratio Supported: 4:3
Supported: 16:9
Supported: 16:10
Dynamic Contrast Ratio 5000:1
DLP Link 3D Yes
Color Range 1.07 Billion
Scan Horizontal: 15 - 92 kHz
Vertical: 50 - 85 Hz
Lens
Focus Manual
Lens F 1.5 - 2.14 (f = 16.72 - 33.47 mm)
Lens Shift Horizontal: ±38%
Vertical: ±50%
Zoom 1-1.8x
Throw Ratio 1.26 - 2.3:1
Projection Size 50 - 300" / 1270.00 - 7620.00 mm
Features
Keystone Correction Yes, Vertical: ± 30°
Yes, Horizontal: ± 30°
Ceiling Mountable Yes
Rear Screen Projection Yes
Projection Tilt Option Yes
Input/Output Connectors
Inputs/Outputs 1x HDMI Audio/Video (Input)
1x DisplayPort Video (Input)
1x 15-pin VGA Video (Input)
1x 5-BNC Video (Input)
1x RCA Composite Video (Input)
1x BNC Video (Input)
1x S-Video Video (Input)
3x 1/8" (3.5 mm) Mini Audio (Input)
1x RCA Stereo (L/R) Audio (Input)
1x Ethernet LAN (Input)
1x USB Type-B Female (Input)
1x USB Type-A Female (Input)
1x RS-232C Control (Input)
1x Proprietary Remote (Input)
1x 15-pin VGA Video (Output)
General
Lamp (Bulb) 1x UHE
Watts 260 W
Life Normal Mode: 4000 Hours
Eco Mode: 5000 Hours
Fan Noise Normal Mode: 38 dB
Eco Mode: 32 dB
Maximum Pixel Clock 162 MHz
Remote Control Yes
Security Cable Lock Slot
Power Requirements 100-240 VAC +/- 10%, 50/60 Hz
Power Consumption Normal Mode: 387 W
Eco Mode: 311 W
Standby Mode (Network off): .4 W
Standby Mode (Network on): 4.3 W
Temperature Operating
32 to 113°F (0 to 45°C)
Dimensions (WxHxD) 18.6 x 6.3 x 13.9" / 472.4 x 160.0 x 353.1 mm Including feet
18.6 x 5.3 x 12.6" / 472.4 x 134.6 x 320.0 mm Excluding feet and lens
Weight 14.3 lb / 6.49 kg
Packaging Info
Package Weight 23.0 lb
Box Dimensions (LxWxH) 24.4 x 21.65 x 9.2"
The user manual for the Epson PowerLite 4855WU WUXGA 3LCD Projector V11H543120 can be downloaded in .pdf format if it did not come with your new multimedia projectors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Epson users keep a unique electronic library for Epson multimedia projectorss, where you can use our link to download the user manual for the Epson PowerLite 4855WU WUXGA 3LCD Projector V11H543120.

The user manual lists all of the functions of the Epson PowerLite 4855WU WUXGA 3LCD Projector V11H543120, all the basic and advanced features and tells you how to use the multimedia projectors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Epson service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Epson PowerLite 4855WU WUXGA 3LCD Projector V11H543120. User manuals are also available on the Epson website under A/V Presentation - Projectors - Multimedia Projectors.
