User manual for the Epson PowerLite 585W WXGA 3LCD Ultra-Short-Throw V11H602020

The user manual for the Epson PowerLite 585W WXGA 3LCD Ultra-Short-Throw V11H602020 provides necessary instructions for the proper use of the product A/V Presentation - Projectors - Multimedia Projectors.

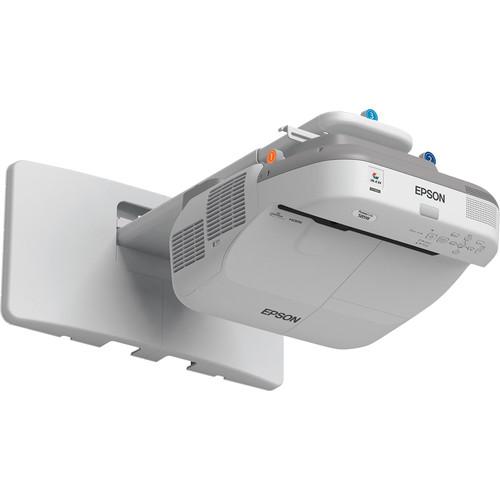

The PowerLite 585W WXGA 3LCD Ultra-Short-Throw Projector from Epson is designed for use in classroom settings, and is an ideal companion for digital whiteboards and document cameras. It outputs 3300 lumens and features a 1280 x 800 (WXGA) native resolution and a 16:10 native aspect ratio - through pillaring and scaling can accept a range of other input resolutions up to 1600 x 900 (WXGA++), though loss of quality may result. Falling into the ultra-short-throw category, the PowerLite 585W features a throw ratio of 0.27 to 0.37:1 (digital zoom only) - this means, for example, at 12" from the screen or whiteboard it can throw a 100" diagonal image.

The projector features a number of inputs for the greatest flexibly. There is a VGA input paired with a mirrored VGA loop-out for computers with analog graphics cards and analog document cameras. Two HDMI inputs are provided for newer computers, Blu-ray players, and other HDTV-compatible equipment. And there is a Composite and S-Video input for use with standard definition analog devices such as VCRs and camcorders. A USB type A port allows the projector to show "PC-less" presentations from a USB storage device and is compatible with many document cameras that have USB output. A USB type B port allows the projector to be connected to a computer, as an alternative to using VGA or HDMI - using USB may impact the quality of video because of bandwidth limitations.

The projector can be controlled directly from surface buttons. However, since it will typically be wall or ceiling mounted, an IR remote is included which can be picked up from the back or front of the projector. For remote operation, even from another location, there is an Ethernet port and an RS-232 serial port. With Ethernet the projector can be accessed through a Web browser, and it is possible to stream presentations to it using the iProjection App or use the Multi-PC Collaboration feature. RS-232, meanwhile, allows it to be controlled from automaton systems such as Crestron RoomView.
If you own a Epson multimedia projectors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Epson PowerLite 585W WXGA 3LCD Ultra-Short-Throw V11H602020 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Epson PowerLite 585W WXGA 3LCD Ultra-Short-Throw V11H602020Download user manual for Epson PowerLite 585W WXGA 3LCD Ultra-Short-Throw V11H602020
(PDF file, 3.77 MB)
Additional parameters of the Epson PowerLite 585W WXGA 3LCD Ultra-Short-Throw V11H602020:
Image Display
Display System 3-Chip Polysilicon TFT LCD
Native Resolution WXGA - 1280 x 800
Supported Resolutions VGA - 640 x 580
SVGA - 800 x 600
SXGA - 1152 x 864
XGA - 1024 x 768
SXGA2 - 1280 x 960
SXGA3 - 1280 x 1024
WXGA 60-1 - 1280 x 768
WXGA+ - 1360 x 768
WXGA+ - 1440 x 900
WSXGA+ - 1440 x 900
WXGA++ - 1600 x 900
Supported Formats Photo: BMP, JPG, PNG
Video: AVI, GIF

Up to 8192 x 8192 for .jpg; Up to 1280 x 800 for .png and .gif; up to 1280 x 720 for .avi.

Format NTSC
NTSC 4.43
PAL
PAL M
PAL N
PAL 60
SECAM
Brightness 3300 Lumens
Aspect Ratio Native: 4:3
Supported: 16:9
Supported: 16:10
Supported: 1.1:1
Dynamic Contrast Ratio 10000:1

Depending on projector settings, screen surface, presence of ambient light and other factors.

Lens
Focus Fixed
Lens F 1.8 (f = 3.71 mm)
Lens Shift None
Zoom Digital: 1-1.35x
Throw Ratio .27 - 0.37:1
Projection Size 60 - 100" / 152.40 - 254.00 cm
Features
Keystone Correction Manual: Yes, Vertical: ± 3°
Manual: Yes, Horizontal: ± 3°
Ceiling Mountable Yes
Rear Screen Projection Yes
Built-in Speaker Yes, 16 W (Mono)
Input/Output Connectors
Inputs/Outputs 1x 15-pin VGA Video (Input)
2x HDMI Audio/Video (Input)
1x S-Video Video (Input)
1x RCA Composite Video (Input)
1x USB Type-A Female (Input)
1x RS-232C Control (Input)
1x Ethernet Control/Service (Input)
2x 1/8" (3.5 mm) Mini Audio (Input)
1x 1/8" (3.5 mm) Mini Microphone (Input)
1x 15-pin VGA Video (Output)
1x 1/8" (3.5 mm) Mini Audio (Output)
1x USB Type-B Female (Output)
General
Lamp (Bulb) 1x E-TORL
Watts 245 W
Life Eco Mode: 6000 Hours
Normal Mode: 4000 Hours
Fan Noise Eco Mode: 28 dB
Normal Mode: 35 dB
Remote Control Yes

Up to 19.7' (6 m) line-of-sight; front or rear.

Security Cable Lock Slot
Password Protection
System Requirements Windows
  • 2000
    XP
    7
    8

Mac
  • OS X

For connection via USB only - connection to a computer through any other input does not require a driver.

Power Requirements 100-240 VAC +/- 10%, 50/60 Hz
Power Consumption Eco Mode: 280 W
Normal Mode: 376 W
Communication on Mode: 4.3 W
Communication off Mode: .3 W
Temperature Operating
41 to 95°F (5 to 35°C)
Dimensions (WxHxD) 14.4 x 7.6 x 14.8" / 36.6 x 19.3 x 37.6 cm
14.4 x 6.1 x 14.8" / 36.6 x 15.5 x 37.6 cm without feet
Weight 11.7 lb / 5.31 kg
Packaging Info
Package Weight 42.0 lb
Box Dimensions (LxWxH) 31.8 x 20.5 x 12.8"
