User manual Epson PowerLite Home Cinema 2030 2D/3D 1080p 3LCD V11H561020

Operating instructions and pdf manual for use - Epson PowerLite Home Cinema 2030 2D/3D 1080p 3LCD V11H561020 User manual, User manual Epson PowerLite Home Cinema 2030 2D/3D 1080p 3LCD V11H561020, Epson, PowerLite, Home, Cinema, 2030, 2D/3D, 1080p,


User manual for Epson PowerLite Home Cinema 2030 2D/3D 1080p 3LCD V11H561020

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
Epson PowerLite Home Cinema 2030 2D/3D 1080p 3LCD V11H561020
  • Manufacturer: Epson
  • Basic description and contents of package
  • Product classification: A/V Presentation - Projectors - Home Theater Projectors
  • Safety instructions
  • Startup and operation of the home theater projectors
  • Tips for setting up your Epson
  • Settings and expert assistance
  • Contact Epson service
  • Troubleshooting
  • Warranty information
  • Price: 700 USD
We recommend checking out our discussion threads on the Epson PowerLite Home Cinema 2030 2D/3D 1080p 3LCD V11H561020, which address similar problems with connecting and setting up Home Theater Projectors Epson.



User manual for the Epson PowerLite Home Cinema 2030 2D/3D 1080p 3LCD V11H561020

The user manual for the Epson PowerLite Home Cinema 2030 2D/3D 1080p 3LCD V11H561020 provides necessary instructions for the proper use of the product A/V Presentation - Projectors - Home Theater Projectors.

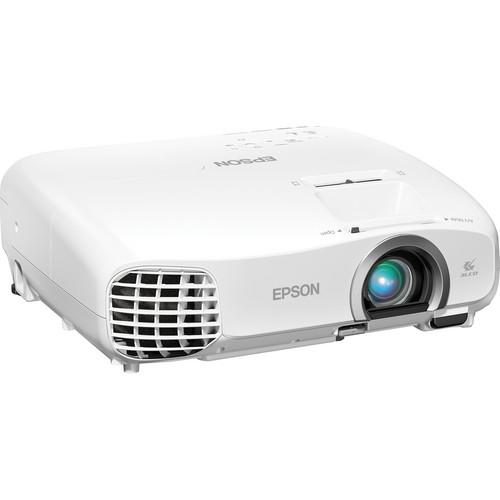

The Epson PowerLite Home Cinema 2030 2D/3D 1080p 3LCD Projector delivers 2000 lumens of white brightness and 2000 lumens of color brightness with a low noise level of only 29 dB when using the ECO operating mode. It features four different color modes and up to a 15,000:1 contrast ratio. The projector features Full HD 1920 x 1080p native resolution with support for 2D and 3D content. It's also equipped with a 3LCD, 3-chip RGB liquid crystal shutter projection system and a 200W UHE E-TORL lamp that provides up to 6000 hours of life.
If you own a Epson home theater projectors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Epson PowerLite Home Cinema 2030 2D/3D 1080p 3LCD V11H561020 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Epson PowerLite Home Cinema 2030 2D/3D 1080p 3LCD V11H561020Download user manual for Epson PowerLite Home Cinema 2030 2D/3D 1080p 3LCD V11H561020
(PDF file, 2.32 MB)
Additional parameters of the Epson PowerLite Home Cinema 2030 2D/3D 1080p 3LCD V11H561020:
Specifications
    Projection System Epson 3LCD, 3-chip technology
    Driving Method Epson Poly-Silicon TFT Active Matrix
    Projection Method Front
    Rear
    Ceiling mount
    Brightness Color: 2000 lumens
    White: 2000 lumens
    Contrast Ratio Up to 15,000:1
    Native Resolution Full HD 1920 x 1080p
    Pixel Count 2,073,600 dots (1920 x 1080 x 3)
    Projector Output 2D
    3D
    Full HD 1080p
    Aspect Ratio Native: 16:9
    Supported: 16:10
    Supported: 4:3
    Video Compatibility 2D: WXGA (60 Hz), WXGA, SXGA, XGA, SVGA, VGA
    3D: 720p (50/60 Hz), 1080i (50/60 Hz), 1080p (50/60/24 Hz)
    Color Reproduction Full-color (1.07 billion colors)
    Color Processing Full 10-bits
    Display Performance 1920 x 1080 native 1080p
    HD
    2D
    3D
    Color Modes 2D: Dynamic, Living Room, Natural, Cinema, Auto
    3D: 3D Dynamic, 3D Cinema
    Projection Lens Type: Manual focus / Manual zoom
    Aperture: f/1.58 - f/1.72
    Focal Length: 16.9 - 20.28 mm
    Zoom Ratio: 1.0 - 1.2 (manual)
    Lamp Type E-TORL 200 W UHE
    Lamp Life Up to 5000 hours (Normal mode)
    Up to 6000 hours (ECO mode)
    Throw Ratio 1.22 - 1.47:1
    Projection Size 34 - 328" (86.4 - 833.1 cm)
    Keystone Correction Horizontal (Slide Bar): ±30°
    Vertical (Auto): ±30°
    Input Signal Composite: NTSC, NTSC4.43, PAL, M-PAL, N-PAL, PAL60, SECAM
    Component: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p
    HDMI: TMDS
    Interfaces 2 x HDMI inputs
    1 x Composite video input (RCA)
    1 x Audio L/R input (RCA)
    1 x VGA computer input (D-sub 15-pin)
    1 x USB (type-A) port
    1 x 1/8" (3.5 mm) audio output
    1 x RS-232C (DB 9-pin)
    Computer Compatibility PC
    Mac
    Media Format 16:9
    Speaker 2 W (mono)
    Fan Noise 29 - 37 dB
    Security Kensington Security Lock Port
    Remote Control Front directional
    Rear directional
    Operation Angle: ±30° (right/left)
    Operation Angle: ±15° (up/down)
    Operating Distance: 19.7' (6 m)
    Operating Temperature 41 to 95°F (5 to 35°C)
    Power Supply Voltage AC 100 - 240 V ± 10% (50/60 Hz)
    Power Consumption 234 W (ECO mode)
    283 W (Normal mode)
    0.36 W (Standby mode)
    Dimensions (WxHxD) 11.69 x 4.25 x 9.72" (297 x 108 x 247 mm) including feet
    11.69 x 4.13 x 9.72" (297 x 105 x 247 mm) excluding feet
    Weight 6.4 lb (2.9 kg)
    Packaging Info
    Package Weight 9.2 lb
    Box Dimensions (LxWxH) 14.3 x 14.1 x 7.2"
    The user manual for the Epson PowerLite Home Cinema 2030 2D/3D 1080p 3LCD V11H561020 can be downloaded in .pdf format if it did not come with your new home theater projectors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Epson users keep a unique electronic library for Epson home theater projectorss, where you can use our link to download the user manual for the Epson PowerLite Home Cinema 2030 2D/3D 1080p 3LCD V11H561020.

    The user manual lists all of the functions of the Epson PowerLite Home Cinema 2030 2D/3D 1080p 3LCD V11H561020, all the basic and advanced features and tells you how to use the home theater projectors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Epson service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Epson PowerLite Home Cinema 2030 2D/3D 1080p 3LCD V11H561020. User manuals are also available on the Epson website under A/V Presentation - Projectors - Home Theater Projectors.
