User manual Epson SureColor P9000 Commercial Edition 44" SCP9000CE
Operating instructions and pdf manual for use - Epson SureColor P9000 Commercial Edition 44" SCP9000CE User manual, User manual Epson SureColor P9000 Commercial Edition 44" SCP9000CE, Epson, SureColor, P9000, Commercial, Edition, 44, SCP9000CE,

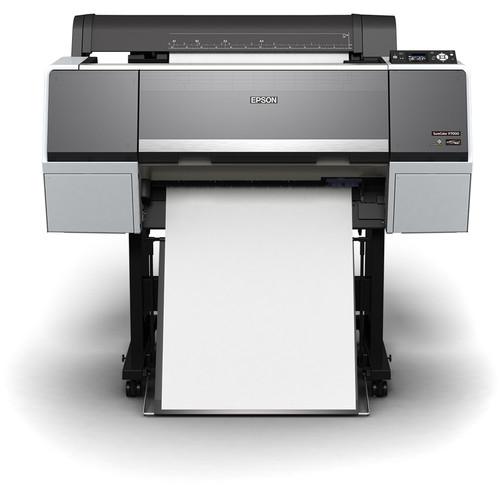

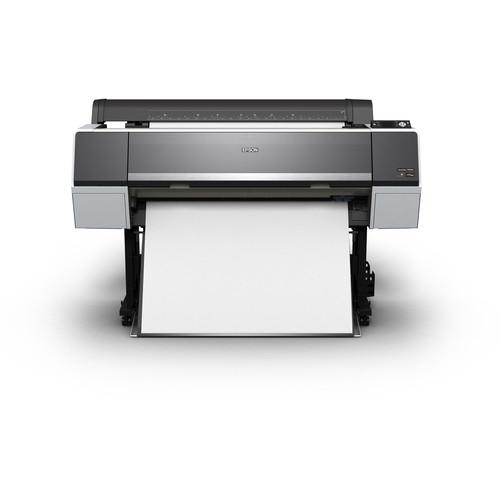

User manual for Epson SureColor P9000 Commercial Edition 44" SCP9000CE
Manufacturer: Epson
Basic description and contents of package
Product classification: Computers & Solutions - Printers & Accessories - Large Format Printers
Safety instructions
Startup and operation of the large format printers
Tips for setting up your Epson
Settings and expert assistance
Contact Epson service
Troubleshooting
Warranty information
Click to enlarge image
We recommend checking out our discussion threads on the Epson SureColor P9000 Commercial Edition 44" SCP9000CE,
which address similar problems with connecting and setting up Large Format Printers Epson.
User manual for the Epson SureColor P9000 Commercial Edition 44" SCP9000CE
The user manual for the Epson SureColor P9000 Commercial Edition 44" SCP9000CE provides
necessary instructions for the proper use of the product Computers & Solutions - Printers & Accessories - Large Format Printers.
Realize the full-potential of Epson's large-format lineup with the Commercial Edition of the SureColor P9000 44" Inkjet Printer. This unit incorporates the latest PrecisionCore TFP Print Head and PrecisionDot Screening Technology along with an eleven-color UltraChrome HDX pigment-based ink set with auto-switching black ink technology to produce vivid, brilliant images at a finely detailed resolution of 2880 x 1440 dpi. Also, the Commercial Edition utilizes a Violet ink that allows users to produce up to 99% of the Pantone Formula Guide for solid color matching, immensely useful for accurate package proofing.
This model can handle both cut-sheet and roll media up to 44" wide and can produce large, panoramic prints up to 529" in length. The P9000 is also capable of working quickly, producing a 16 x 20" print as fast as 2 minutes 2 seconds. PrecisionDot Screening technology furthers the printer's quality by using advanced math to calculate dot size and placement using a variable-sized droplet system. Also, users can manually program print head cleanings to ensure optimal performance at all times.
Operation is simple with a top-loading feed for both rolls and cut-sheet media. There is also a built-in rotary cutter for automatically cutting prints from rolls and the front control panel has a 2.7" color LCD screen for checking print status and settings. Additionally, it has both USB 2.0 and Ethernet connectivity for setting up the unit as you need it.
If you own a Epson large format printers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Epson SureColor P9000 Commercial Edition 44" SCP9000CE in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Epson SureColor P9000 Commercial Edition 44" SCP9000CE:
10-channel, drop-on-demand, inkjet PrecisionCore TFP Print Head
Maximum Resolution
2880 x 1440 dpi
Print Speed
16 x 20" / 40.6 x 50.8 cm Print: 2:02 to 6:58 (production is 4:16) 20 x 30" / 50.8 x 76.2 cm Print: 3:40 to 12:25 (production is 7:36) 40 x 60" / 101.6 x 152.4 cm Print: 11:15 to 40:05 (production is 24:20)
Minimum Ink Droplet Size
Enhanced Variable Droplet Technology as small as 3.5 pl
Ink Type
UltraChrome HDX pigment inks
Ink Cartridge Configuration
11 individual cartridges
Ink Color
C, LC, VM, VLM, Y, LK, V, O, G, PK/MK
Compatible Ink Cartridges
T834100 UltraChrome HD Photo Black Ink Cartridge (150 ml) T834200 UltraChrome HD Cyan Ink Cartridge (150 ml) T834300 UltraChrome HD Vivid Magenta Ink Cartridge (150 ml) T834400 UltraChrome HD Yellow Ink Cartridge (150 ml) T834500 UltraChrome HD Light Cyan Ink Cartridge (150 ml) T834600 UltraChrome HD Vivid Light Magenta Ink Cartridge (150 ml) T834700 UltraChrome HD Light Black Ink Cartridge (150 ml) T834800 UltraChrome HD Matte Black Ink Cartridge (150 ml) T834A00 UltraChrome HDX Orange Ink Cartridge (150 ml) T834B00 UltraChrome HDX Green Ink Cartridge (150 ml) T834D00 UltraChrome HDX Violet Ink Cartridge (150 ml) T824100 UltraChrome HD Photo Black Ink Cartridge (350 ml) T824200 UltraChrome HD Cyan Ink Cartridge (350 ml) T824300 UltraChrome HD Vivid Magenta Ink Cartridge (350 ml) T824400 UltraChrome HD Yellow Ink Cartridge (350 ml) T824500 UltraChrome HD Light Cyan Ink Cartridge (350 ml) T824600 UltraChrome HD Vivid Light Magenta Ink Cartridge (350 ml) T824700 UltraChrome HD Light Black Ink Cartridge (350 ml) T824800 UltraChrome HD Matte Black Ink Cartridge (350 ml) T824A00 UltraChrome HDX Orange Ink Cartridge (350 ml) T824B00 UltraChrome HDX Green Ink Cartridge (350 ml) T824D00 UltraChrome HDX Violet Ink Cartridge (350 ml) T804100 UltraChrome HD Photo Black Ink Cartridge (700 ml) T804200 UltraChrome HD Cyan Ink Cartridge (700 ml) T804300 UltraChrome HD Vivid Magenta Ink Cartridge (700 ml) T804400 UltraChrome HD Yellow Ink Cartridge (700 ml) T804500 UltraChrome HD Light Cyan Ink Cartridge (700 ml) T804600 UltraChrome HD Vivid Light Magenta Ink Cartridge (700 ml) T804700 UltraChrome HD Light Black Ink Cartridge (700 ml) T804800 UltraChrome HD Matte Black Ink Cartridge (700 ml) T804A00 UltraChrome HDX Orange Ink Cartridge (700 ml) T804B00 UltraChrome HDX Green Ink Cartridge (700 ml) T804D00 UltraChrome HDX Violet Ink Cartridge (700 ml)
Number of Nozzles
360 nozzles x 10
Automatic Black Ink Switching
Matte to Photo Black: 2 min 55 sec, 7.2 ml Photo to Matte Black: 2 min 7 sec, 1.12 ml
Top-loading feeder Built-in rotary cutter Media bin
Paper Sizes
Minimum Cut-Sheet Size: 8.5 x 11" / 21.6 x 27.9 cm Maximum Paper Width: 44" / 111.8 cm Maximum Roll Size: Up to 44 x 529" / 111.8 x 1343.7 cm
Borderless Printing Width
10" / 25.4 cm, 11.8" / 30 cm , 13" / 33 cm, 16" / 40.6 cm, 17" / 43.2 cm, 20.3" / 51.6 cm, 23" / 58.4 cm, 24" / 61 cm, 33" / 83.8 cm, 36" / 91.4 cm, 44" / 111.8 cm
Line Accuracy
±0.2% or specified length
Media Thickness
31.5-59.1 mil / 0.8-1.5 mm
Print Archival Life
Color: Up to 200 years Black & White: Up to 400 years
Printing: 75 W Ready: 19 W Sleep: 2 W Power Off: <0.5 W
Certifications
ENERGY STAR compliant
Acoustic Noise
47 dB(A)
Operation Conditions
Temperature: 50 to 95°F / 10 to 35°C Humidity: 20 to 80%, non-condensing Recommended Temperature: 65 to 75°F / 18 to 24°C Recommended Humidity: 40 to 60%, non-condensing
Storage Conditions
Temperature: -4 to 104°F / -20 to 40°C Humidity: 5 to 85%, non-condensing
Dimensions
74 x 48 x 26" / 188 x 122 x 66 cm
Weight
298 lb / 135 kg
The user manual for the Epson SureColor P9000 Commercial Edition 44" SCP9000CE can be downloaded in .pdf
format if it did not come with your new large format printers, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Epson users keep a unique electronic library
for Epson large format printerss,
where you can use our link to download the user manual for the Epson SureColor P9000 Commercial Edition 44" SCP9000CE.
The user manual lists all of the functions of the Epson SureColor P9000 Commercial Edition 44" SCP9000CE,
all the basic and advanced features and tells you how to use the large format printers.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Epson service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Epson SureColor P9000 Commercial Edition 44" SCP9000CE. User manuals are also
available on the Epson website under Computers & Solutions - Printers & Accessories - Large Format Printers.
