User manual for the Ergotron PowerShuttle Tablet Charging Cart 24-302-085
The user manual for the Ergotron PowerShuttle Tablet Charging Cart 24-302-085 provides
necessary instructions for the proper use of the product A/V Presentation - Mounts & Carts - Mobile Charging Stations.

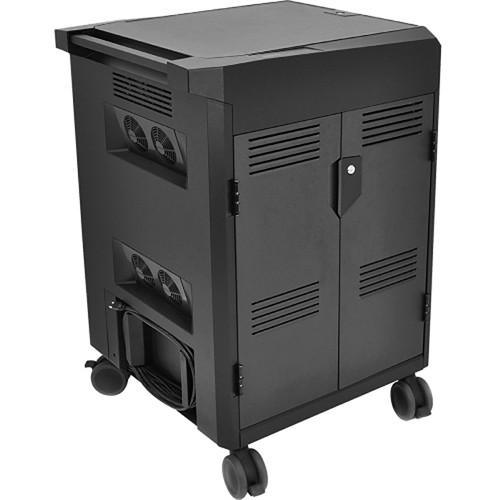

The PowerShuttle Tablet Charging Cart from Ergotron features a universal interface and can be used to charge up to 30 tablet, Chromebook, MacBook, or Ultrabook computers using the cart's power cable and the AC adapters for your devices.
Using PowerShuttle technology, the plugged in cart automatically measures and stores the current draw of the external outlet and the power strips inside the cart. It then subtracts the current for the always-on devices from the max wall current, leaving the amount of current available for the power strips. PowerShuttle then groups the power strips in the minimum number of groups for charging without exceeding the max wall current, preventing charging empty slots and avoiding circuit overloading.
The internal power cords are routed from the laptop compartments to the AC adapter storage compartment through individual cable channels for cable management. When a compartment is empty, the cables can be stowed allowing your cables to stay neat and organized without tangling. A brick storage rack is available for using brick style adapters. When not in use, the external AC power cord can be stored in the recessed cord wrap located on the side of the cart.
The cart ships fully assembled with the exception of the top shelf dividers, which are meant to be added after the device power cables are installed. The cart is made from steel and has a fire-rated ABS exterior for withstanding heavy use. A continuous operating fan and vented side panels and rear and front doors keep the equipment and cart cool.
|
If you own a Ergotron mobile charging stations and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Ergotron PowerShuttle Tablet Charging Cart 24-302-085 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Ergotron PowerShuttle Tablet Charging Cart 24-302-085:
| Maximum Device Size (H x W x D) | 12.3 x 1.1 x 15.3" / 31.2 x 2.8 x 38.9 cm
Diagonal Screen Size: 13.3" / 33.8 cm | | Device | Maximum Weight: 4.6 lb / 2.1 kg | | Slots | 30 | | Handle | Integrated | | Casters | 4 x 3.9" / 10.0 cm medical-grade, dual-wheel, locking | | Fans | 1 x 12 VDC, continuous operating | | Power | 100 to 120 V, 50/60 Hz, 12A | | Auxiliary Outlets | 2 | | Operating Temperature | 32 to 86°F / 0 to 30°C | | Certification | UL 60950 Safety of Information Technology Equipment, CAN/CSA C22 2 No. 60950
UL 1678 Household, Commercial, and Institutional-Use Carts, Stands and Entertainment Centers for Use with Audio and/or Video Equipment
ICES-003 Issue 4, Class A
FCC Part 15 Class A
RoHS and Reach compliant material used | | Cable Length | 12.5' / 3.8 m, for power | | Dimensions (W x H x D) | 28.0 x 40.0 x 24.4" / 71.1 x 101.6 x 62.0 cm | | Weight | 159.0 lb / 72.1 kg (unloaded) | |
