User manual for the ETC 14º Source Four 70 W Ellipsoidal HID 7060A1402-0XA
The user manual for the ETC 14º Source Four 70 W Ellipsoidal HID 7060A1402-0XA provides
necessary instructions for the proper use of the product Lighting & Studio - Continuous Lighting - Architectural Lights.

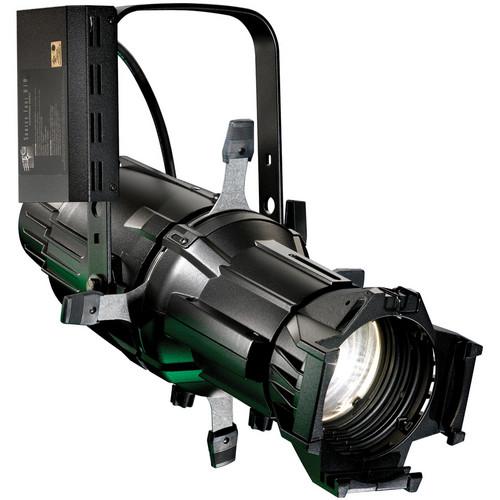

With the 14º Source Four 70 W Ellipsoidal HID with Edison Connector (Black) from ETC, you can draw attention to your interior design and architectural details, call out specific objects and dramatize display spaces, or project interest-grabbing patterns, logos and signage. This Source Four HID’s long-life 12,000-hour lamp allows for low maintenance and less lamp change-out, which is perfect for positions that can’t be reached often or easily—like tall museum ceilings or vaulted church areas.
This HID lamp gives you the level of performance of a 2,000-hour Source Four fixture but with 10,000 additional hours. The metal-halide fixture has features such as a cool beam, imaging, pattern projection, and a bright, even field. It uses an electronic ballast with a power factor greater than 95%, and has an efficiency of greater than 90%. With its 1.5 amps operating current, you can safely place more Source Four HIDs on a 20 A circuit. Plus, this non-dimmable fixture is UL listed for damp locations.
If you own a ETC architectural lights and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the ETC 14º Source Four 70 W Ellipsoidal HID 7060A1402-0XA in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the ETC 14º Source Four 70 W Ellipsoidal HID 7060A1402-0XA:
Electronic Ballast: 70 W (yoke mounted) Ballast Efficiency: 90% 120 V Ballast: 120 V ± 10%, 60 Hz (0.7 A operating current) 277 V Ballast: 277 V ± 10%, 60Hz (0.3 A operating current)
At 30' (9.1 m) Throw Distance: 1902 lux (177 footcandles) at field diameter 7.9' (2.4 m) At 40' (12.2 m) Throw Distance: 1070 lux (99 footcandles) at field diameter 10.5' (3.2 m) At 50' (15.2 m) Throw Distance: 685 lux (64 footcandles) at field diameter 13.1' (4 m) At 55' (16.8 m) Throw Distance: 566 lux (53 footcandles) at field diameter 14.4' (4.4 m)
The user manual for the ETC 14º Source Four 70 W Ellipsoidal HID 7060A1402-0XA can be downloaded in .pdf
format if it did not come with your new architectural lights, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other ETC users keep a unique electronic library
for ETC architectural lightss,
where you can use our link to download the user manual for the ETC 14º Source Four 70 W Ellipsoidal HID 7060A1402-0XA.
The user manual lists all of the functions of the ETC 14º Source Four 70 W Ellipsoidal HID 7060A1402-0XA,
all the basic and advanced features and tells you how to use the architectural lights.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from ETC service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the ETC 14º Source Four 70 W Ellipsoidal HID 7060A1402-0XA. User manuals are also
available on the ETC website under Lighting & Studio - Continuous Lighting - Architectural Lights.
