ETC Distributed Dimming Series Source Four Dimmer 7145K1001-0X
  • Manufacturer: ETC
  • Basic description and contents of package
  • Product classification: Lighting & Studio - Lighting Accessories - Dimmers
  • Safety instructions
  • Startup and operation of the dimmers
  • Tips for setting up your ETC
  • Settings and expert assistance
  • Contact ETC service
  • Troubleshooting
  • Warranty information
  • Price: 428 USD
ETC Distributed Dimming Series Source Four Dimmer 7145K1001-0X ETC Distributed Dimming Series Source Four Dimmer 7145K1001-0X
Click to enlarge image
We recommend checking out our discussion threads on the ETC Distributed Dimming Series Source Four Dimmer 7145K1001-0X, which address similar problems with connecting and setting up Dimmers ETC.


User manual for the ETC Distributed Dimming Series Source Four Dimmer 7145K1001-0X

The user manual for the ETC Distributed Dimming Series Source Four Dimmer 7145K1001-0X provides necessary instructions for the proper use of the product Lighting & Studio - Lighting Accessories - Dimmers.

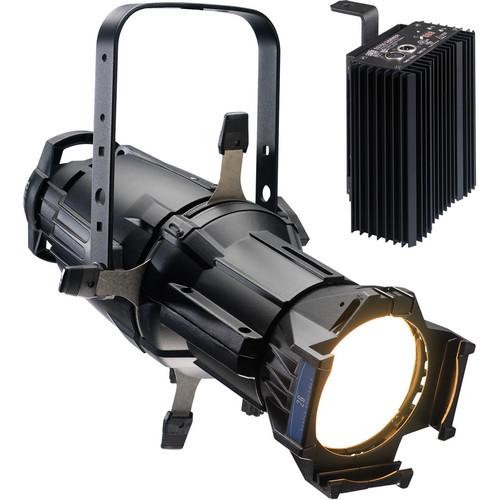

The black Distributed Dimming Series Source Four Dimmer Retrofit Kit from ETC is designed to retrofit the existing Source Four Luminaire and comes with a burner assembly and also includes a lamp housing.

The Source Four Dimmer delivers a high performance in tungsten-lighting applications. Using ETC’s ES (Electronic Silent) technology and a convection-cooled design, this dimmer can be placed in acoustically sensitive venues. By taking DMX control signals directly, this self dimming tungsten fixture can reside alongside LEDs and moving lights, allowing system designs to focus on switched power and data distribution instead of centralized dimming systems.

The Source Four Dimmer can be used in applications requiring distributed dimming and position flexibility such as theaters, hybrid incandescent, LED and discharge systems, industrial productions, rentals, conference and exhibition centers, and multi-use venues like schools and meeting rooms.
If you own a ETC dimmers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the ETC Distributed Dimming Series Source Four Dimmer 7145K1001-0X in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the ETC Distributed Dimming Series Source Four Dimmer 7145K1001-0X:
Specifications
    Electrical
    Power Supply
    Sizing Suggested Breaker Sizing: 20 A
    Voltage Range 85 to 140 and 180 to 260 V
    Frequency Range 47 to 63 Hz
    I/O Supports 208 V input to 115 V output regulation
    Isolation 2500 V isolation between control and power components
    Maximum Output 750 W
    DMX In and Thru, DMX thru is not self-terminating

    Represents 1/4 unit device load for purpose of calculating DMX daisy-chain device count. Maximum 32 unit devices can operate per DMX chain.
    Thermal and Power
    Ambient Temperature 104°F (40°C) maximum
    Humidity 10 to 95%, non-condensing
    Cooling Convection-cooled
    Optimum cooling when mounted with heatsink fins in vertical position
    BTU 171 at full load
    Status Indicator Multicolor LED for power, error, and valid DMX
    Dimmer Output Curves:
    3 selectable
    IES modified square law
    Linear
    Switched (50% threshold)
    Physical
    Dimensions (HxWxL) 6.50 x 3.57 x 7.35" (165.10 x 90.68 x 186.69 mm)
    Weight 4.0 lb (1.8 kg)
    The user manual for the ETC Distributed Dimming Series Source Four Dimmer 7145K1001-0X can be downloaded in .pdf format if it did not come with your new dimmers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other ETC users keep a unique electronic library for ETC dimmerss, where you can use our link to download the user manual for the ETC Distributed Dimming Series Source Four Dimmer 7145K1001-0X.

    The user manual lists all of the functions of the ETC Distributed Dimming Series Source Four Dimmer 7145K1001-0X, all the basic and advanced features and tells you how to use the dimmers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from ETC service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the ETC Distributed Dimming Series Source Four Dimmer 7145K1001-0X. User manuals are also available on the ETC website under Lighting & Studio - Lighting Accessories - Dimmers.
