User manual for the Event 20/20BAS Biamped Monitor V3 20/20 BAS V3
The user manual for the Event 20/20BAS Biamped Monitor V3 20/20 BAS V3 provides
necessary instructions for the proper use of the product Pro Audio - Recording - Studio Monitors.

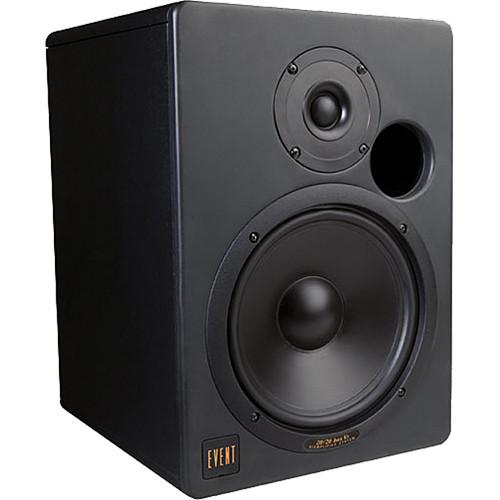

The Event Electronics 20/20BAS Biamped Monitor V3 delivers clarity, transparency, and definition. This 2-way front ported speaker offers tonal character and performance strength. The speaker maintains the transducer design and cabinet volume of the traditional 20/20 and improvises on the high and low frequency amplifiers, cabinet bracing, and overall construction to improve audio characteristics, increase dynamics, and extend reliability. With ideas and technologies incorporated from Event’s flagship Opal speaker, this speaker delivers high output, low distortion, and superior dynamics.
The fully discrete class AB amplifiers for the tweeter and woofer provide up to 250W of burst power with less than 0.01% THD (Total Harmonic Distortion). Additionally, sustained high output performance is ensured through a new oversized toroidal power supply that can ensure sustained extreme low frequency reproduction.
|
If you own a Event studio monitors and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Event 20/20BAS Biamped Monitor V3 20/20 BAS V3 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Event 20/20BAS Biamped Monitor V3 20/20 BAS V3:
| Frequency Response | 35 Hz to 20 kHz ±2 dB | | Crossover Frequency | 2,300 Hz | | Distortion | 3rd Harmonic
At 90 dB SPL, 3.2’ (1.0 m), 500 to 7 kHz: 0.08%
At 90 dB SPL, 3.2’ (1.0 m), 200 to 20 kHz: 0.2%
At 90 dB SPL, 3.2’ (1.0 m), <200 Hz: 1.5% | | Acoustic | Output
At 3.2' (1.0 m), Long term (80 Hz to 20 kHz): 105 dB
At 3.2' (1.0 m), Peak (80 Hz to 20 kHz): 108 dB | | Signal Input | XLR (balanced) | | Low Frequency Transducer | Piston Diameter: 7.1" (180.3 mm)
Voice Coil Configuration: High temperature single coil
Voice Coil Diameter: 1.5" (38.1 mm)
Former Material: High-strength polyamide - glass fiber
Magnet Type: Ferrite
Cone Type: Mineral-filled polypropylene
Magnetic Shielding: Bucking magnet and steel cap | | High Frequency Transducer | Dome Diameter: 1.00" (25.4 mm)
Voice Coil Diameter: 0.98" (24.89 mm)
Magnet Type: Ferrite
Dome Type: Silk
Gap Design: Ferrofluid cooled
Magnetic Shielding: Bucking magnet | | Frequency Response | 20 Hz to 20 kHz (±0.2 dB) | | Band | Operating Band Pass: 20 Hz to 2,400 Hz (LF) / 2,400 Hz to 20 kHz (HF) | | Total Harmonic Distortion (THD) | 0.01% 120 W into 4 Ω Load | | Power | Long Term at 4 Ω: 80 W
Burst Power at 4 Ω: 120 W | | Topology | Output: Class AB | | Trim | LF: Constantly variable ±3 dB
HF: Constantly variable ±3 dB | | Subsonic Filter | -3 dB at 30 Hz | | Protection | Driver: Current limiting
Temperature: Thermal cut-off switch | | Indicators | Event badge On mode | | Cooling | Convection - Aluminum heat sink | | Power Requirements | Voltage selector 110 to 120 V or 220 to 240 V, 50/60 Hz, 180 VA
Power via detachable 3 circuit IEC-type line cord | | Cabinet | Construction: MDF
Low Frequency Vents: Front port | | Dimensions (W x H x D) | Cabinet: 10.2 x 14.8 x 11.8" (259.0 x 379.9 x 299.7 mm) | | Weight | Cabinet: 37.48 lb (17.00 kg) | | Package Weight | 36.0 lb | | Box Dimensions (LxWxH) | 19.6 x 16.5 x 15.0" | |
