EverFocus 520 TVL Outdoor PTZ Camera with Wide Dynamic EPTZ3100
  • Manufacturer: EverFocus
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Wired Analog & HD Cameras
  • Safety instructions
  • Startup and operation of the wired analog & hd cameras
  • Tips for setting up your EverFocus
  • Settings and expert assistance
  • Contact EverFocus service
  • Troubleshooting
  • Warranty information
  • Price: 840 USD
We recommend checking out our discussion threads on the EverFocus 520 TVL Outdoor PTZ Camera with Wide Dynamic EPTZ3100, which address similar problems with connecting and setting up Wired Analog & HD Cameras EverFocus.



User manual for the EverFocus 520 TVL Outdoor PTZ Camera with Wide Dynamic EPTZ3100

The user manual for the EverFocus 520 TVL Outdoor PTZ Camera with Wide Dynamic EPTZ3100 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired Analog & HD Cameras.

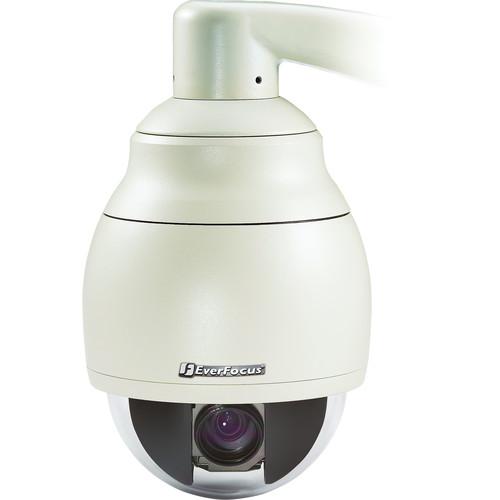

The EverFocus EPTZ3100 520 TVL Outdoor PTZ Camera with Wide Dynamic Range and True Day/Night PTZ dome camera delivers consistently bright and sharp images in a variety of lighting and scene situations. All this thanks to its use of a true Day/Night function, which auto switches the camera to a sensitive B/W mode during nighttime hours, and an advanced WDR system, which compensates for high contrast and backlit scenes. Also playing an important role is Digital Noise Reduction technology, which by reducing noise in the picture not only ensures a cleaner image but also reduces file sizes on a recording device.

With regards to PTZ functions, the EPTZ3100 boasts a powerful 30x zoom, very accurate pan & tilt movements, and a full complement of presets and tours. With these attributes, the EPTZ3100 allows the use of a single camera to cover a broad area while fulfilling the need for close-up inspection when necessary.

The EPTZ3100 comes encased in an aluminum, weatherproof housing, and is ready for outdoor installation on a pendant ceiling mount. Optional accessories are available for wall (EPTZ-WMB), corner (EPTZ-CNM), pole (EPTZ-PLM), and junction box (EPTZ-PBOX) installations. Also available is a sunshield accessory (EPTZ-SSM) in case the installation locale involves excessive exposure to sunlight.
If you own a EverFocus wired analog & hd cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the EverFocus 520 TVL Outdoor PTZ Camera with Wide Dynamic EPTZ3100 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for EverFocus 520 TVL Outdoor PTZ Camera with Wide Dynamic EPTZ3100Download user manual for EverFocus 520 TVL Outdoor PTZ Camera with Wide Dynamic EPTZ3100
(PDF file, 1.73 MB)
Additional parameters of the EverFocus 520 TVL Outdoor PTZ Camera with Wide Dynamic EPTZ3100:
Specifications
    Signal System NTSC
    Image Sensor 1/4" Color Sony Super HAD CCD
    Number of Pixels 768 x 494
    Resolution 520 TVL
    Lens Focal Length: 3.3-99mm
    Zoom: 30x optical, 8x digital (240x total)
    Aperture: F1.6-3.2 (W/T)
    Focus: auto/one push AF/manual
    Iris Operation Auto
    Minimum Illumination Norma: 0.4 lux, F1.6
    Night Mode: 0.08 lux, F1.6 (ICR on)
    Signal-to-Noise Ratio 50dB
    Pan Angle 360° unlimited
    Pan Speed 0.01°/s~360°/s (1~255 grade shift gears)
    Tilt Angle 180° pendulum motion
    Tilt Speed 0.01º ~ 180º/s
    Preset Positions 192
    Other PTZ Functions Auto Zoom Speed Control: automatic, according to the zoom length

    Auto Pan: 2 point scanning, can set freely

    Auto Pan speed: 1~255 grade available

    Dwell time (2 points): 1~99 second available

    Running to Position Speed: 1~255 grade available (0.01º/s - 360º/s)

    Dwell Time: 1~99 available (at preset position)

    Tour: 16 groups

    Tour Point Per Group: 16 preset positions

    Pattern: 4 patterns with 90 seconds long

    Position Accuracy: +/-10.1°
    Microphone No
    Controls Electronic Shutter: 1/60 ~ 1/120,000 (128x)

    Digital Slow Shutter: 128x

    True Day/Night: Yes (Off/Auto)

    Backlight Comp.: Yes, (Off/Low/Mid/High)

    Auto Gain Control: Yes, (Off/Low/Mid/High)

    Wide Dynamic Range: Yes, (Off/On/Auto)

    White Balance: Indoor/Outdoor/MAN5100K/MAN3200K/MAN2000K/ONE PUSH

    Motion Detection : Yes (Off/On)

    Privacy Zone Masking: Yes (8 zones)
    Video Output BNC
    Audio Output N/A
    Sync System Internal
    Communication Port RS-485
    Communication Protocol EVF-1, Pelco-P, Pelco-D, A-Type, Plus-D, AUTO, Panasonic (Plus-D supports all other brands, equivalent to Pelco-D)
    Alarm I/O 4 in, 2 out with tour/position auto triggering
    Power Requirements 24VAC
    Power Consumption 21W max
    Operating Temperature -40 ~ 122°F (-40 ~ +50°C)
    Dimensions (WxH) 7.1 x 11" (180 x 280mm)
    Weight 6.6 lbs (3kg)
    Packaging Info
    Package Weight 14.75 lb
    Box Dimensions (LxWxH) 27.1 x 10.7 x 9.8"
    The user manual for the EverFocus 520 TVL Outdoor PTZ Camera with Wide Dynamic EPTZ3100 can be downloaded in .pdf format if it did not come with your new wired analog & hd cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other EverFocus users keep a unique electronic library for EverFocus wired analog & hd camerass, where you can use our link to download the user manual for the EverFocus 520 TVL Outdoor PTZ Camera with Wide Dynamic EPTZ3100.

    The user manual lists all of the functions of the EverFocus 520 TVL Outdoor PTZ Camera with Wide Dynamic EPTZ3100, all the basic and advanced features and tells you how to use the wired analog & hd cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from EverFocus service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the EverFocus 520 TVL Outdoor PTZ Camera with Wide Dynamic EPTZ3100. User manuals are also available on the EverFocus website under Surveillance - Surveillance Video - Wired Analog & HD Cameras.
