User manual EverFocus ECOR HD 16F 16-Channel 720p DVR with 4TB ECORHD16F/4T

Operating instructions and pdf manual for use - EverFocus ECOR HD 16F 16-Channel 720p DVR with 4TB ECORHD16F/4T User manual, User manual EverFocus ECOR HD 16F 16-Channel 720p DVR with 4TB ECORHD16F/4T, EverFocus, ECOR, HD, 16F, 16-Channel, 720p, DV


User manual for EverFocus ECOR HD 16F 16-Channel 720p DVR with 4TB ECORHD16F/4T

EverFocus ECOR HD 16F 16-Channel 720p DVR with 4TB ECORHD16F/4T
  • Manufacturer: EverFocus
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Digital Video Recorders (DVRs)
  • Safety instructions
  • Startup and operation of the digital video recorders (dvrs)
  • Tips for setting up your EverFocus
  • Settings and expert assistance
  • Contact EverFocus service
  • Troubleshooting
  • Warranty information
  • Price: 628 USD
EverFocus ECOR HD 16F 16-Channel 720p DVR with 4TB ECORHD16F/4T EverFocus ECOR HD 16F 16-Channel 720p DVR with 4TB ECORHD16F/4T EverFocus ECOR HD 16F 16-Channel 720p DVR with 4TB ECORHD16F/4T EverFocus ECOR HD 16F 16-Channel 720p DVR with 4TB ECORHD16F/4T EverFocus ECOR HD 16F 16-Channel 720p DVR with 4TB ECORHD16F/4T EverFocus ECOR HD 16F 16-Channel 720p DVR with 4TB ECORHD16F/4T EverFocus ECOR HD 16F 16-Channel 720p DVR with 4TB ECORHD16F/4T

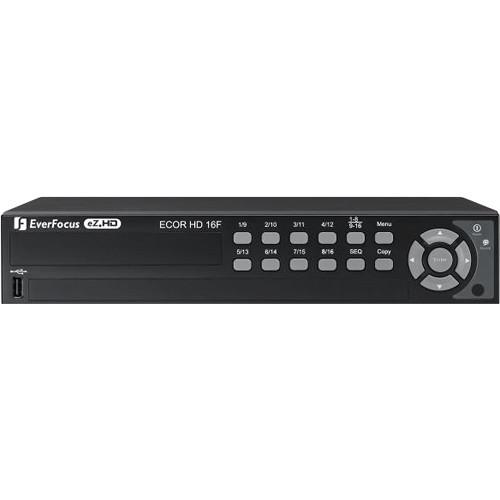

Click to enlarge image

We recommend checking out our discussion threads on the EverFocus ECOR HD 16F 16-Channel 720p DVR with 4TB ECORHD16F/4T, which address similar problems with connecting and setting up Digital Video Recorders (DVRs) EverFocus.



User manual for the EverFocus ECOR HD 16F 16-Channel 720p DVR with 4TB ECORHD16F/4T

The user manual for the EverFocus ECOR HD 16F 16-Channel 720p DVR with 4TB ECORHD16F/4T provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Digital Video Recorders (DVRs).

The ECOR HD 16F 16-Channel 720p DVR from EverFocus includes 4TB of internal memory and supports up to 16 analog cameras. The DVR is compatible with video inputs with resolution ranging from D1, 960H, or 720p and can record and playback up to 240 (NTSC) / 200 (PAL) frames per second at 720p resolution simultaneously. The recorder is capable of triple streams, useful for live view, playback, and recording modes.

In addition, the DVR supports both standard coaxial and UTP (Unshielded Twisted Pair) cable, allowing for long-distance transmission of images with zero video latency. For optimal convenience, the recorder features hardware which has 2 video outputs (HDMI and VGA) for local monitoring, audio in/out, alarm in/out, RS-485 serial interface, 2 USB interfaces, and 1 RJ45 (10/100) Base-T Ethernet interface.

The ECOR series recorder can be expanded, ensuring large capacity of the eZ.HD video recordings. It supports web UI for users to remotely access to the surveillance system and is integrated with the CMS platform and Genie XMS for application in a variety of surveillance environments.
If you own a EverFocus digital video recorders (dvrs) and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the EverFocus ECOR HD 16F 16-Channel 720p DVR with 4TB ECORHD16F/4T in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the EverFocus ECOR HD 16F 16-Channel 720p DVR with 4TB ECORHD16F/4T:
Specifications
    Video Input HD or WD1: 16 x BNC
    Video Output HDMI and VGA
    Recording Rate/Resolution NTSC 240 fps @ 720p
    PAL 200 fps @ 720p
    Playback Rate/Resolution NTSC 240 fps @ 720p
    PAL 200 fps @ 720p
    Compression Format H.264
    Operating System Linux embedded
    Audio In/Out 4 In / 1 Out
    Alarm I/O 4 In / 1 Out
    Hard Drive Capacity 2 x 3.5" HDD (max 8TB)
    Installed Hard Drives 1 x 4 TB
    Network / Protocol 10/100 Ethernet x 1/TCP-IP / DHCP / PPPoE / DDNS / SMTP / NTP
    USB 2 x USB 2.0
    RS-232 / RS-485 0 / 1
    Configuration OSD UI / Webpage
    Mobile Viewing iOS, Android
    Pentaplex Operation Simultaneous live, recording, playback, archive, and remote viewing
    Recording Mode Manual, Schedule, Event
    Playback Search Date/Time search
    User Access 3 levels of user access
    PTZ Protocols Pelco_D, Pelco_P, Samsung, EverFocus, Transparent
    Operating Temperature 32 to 104°F (0 to 40°C)
    Power Source 12 VDC, 5 A
    Power Consumption 60 W maximum
    Certificates CE, FCC,UL
    Dimensions (W x D x H) 12.6 x 10.5 x 2.4" (32.0 x 26.6 x 6.0 cm)
    Weight 6.9 lb (3.1 kg)
    Packaging Info
    Package Weight 10.15 lb
    Box Dimensions (LxWxH) 15.4 x 13.6 x 6.6"
    The user manual for the EverFocus ECOR HD 16F 16-Channel 720p DVR with 4TB ECORHD16F/4T can be downloaded in .pdf format if it did not come with your new digital video recorders (dvrs), although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other EverFocus users keep a unique electronic library for EverFocus digital video recorders (dvrs)s, where you can use our link to download the user manual for the EverFocus ECOR HD 16F 16-Channel 720p DVR with 4TB ECORHD16F/4T.

    The user manual lists all of the functions of the EverFocus ECOR HD 16F 16-Channel 720p DVR with 4TB ECORHD16F/4T, all the basic and advanced features and tells you how to use the digital video recorders (dvrs). The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from EverFocus service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the EverFocus ECOR HD 16F 16-Channel 720p DVR with 4TB ECORHD16F/4T. User manuals are also available on the EverFocus website under Surveillance - Surveillance Video - Digital Video Recorders (DVRs).
