User manual EverFocus ECOR HD Series 16-Channel 720p DVR ECORHD16X1/2T
Operating instructions and pdf manual for use - EverFocus ECOR HD Series 16-Channel 720p DVR ECORHD16X1/2T User manual, User manual EverFocus ECOR HD Series 16-Channel 720p DVR ECORHD16X1/2T, EverFocus, ECOR, HD, Series, 16-Channel, 720p, DVR, ECOR
User manual for EverFocus ECOR HD Series 16-Channel 720p DVR ECORHD16X1/2T
Manufacturer: EverFocus
Basic description and contents of package
Product classification: Surveillance - Surveillance Video - Digital Video Recorders (DVRs)
Safety instructions
Startup and operation of the digital video recorders (dvrs)
Tips for setting up your EverFocus
Settings and expert assistance
Contact EverFocus service
Troubleshooting
Warranty information
Price: 649 USD

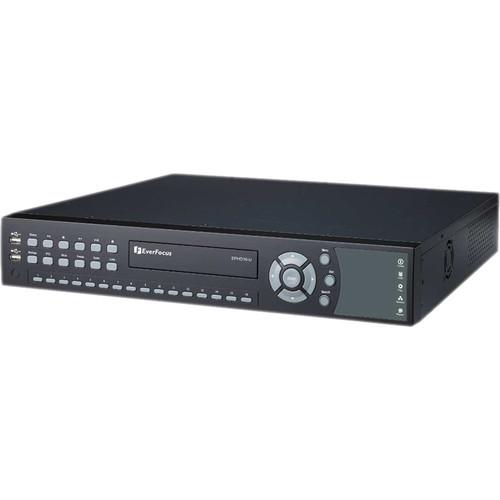

Click to enlarge image
We recommend checking out our discussion threads on the EverFocus ECOR HD Series 16-Channel 720p DVR ECORHD16X1/2T,
which address similar problems with connecting and setting up Digital Video Recorders (DVRs) EverFocus.
User manual for the EverFocus ECOR HD Series 16-Channel 720p DVR ECORHD16X1/2T
The user manual for the EverFocus ECOR HD Series 16-Channel 720p DVR ECORHD16X1/2T provides
necessary instructions for the proper use of the product Surveillance - Surveillance Video - Digital Video Recorders (DVRs).
Easily upgrade an existing analog system to high-definition resolution using the ECOR HD Series 16-Channel 720p DVR from EverFocus. The camera uses standard coax or UTP (Unshielded Twisted Pair) wires to transmit video at up to 720p resolution. A preinstalled 2TB HDD provides on-site storage, and H.264 compression minimizes your bandwidth and storage usage for mobile or multiplex viewing applications. Separately configured HDMI, VGA, and CVBS video outputs enable you to simultaneously view and playback recordings on multiple monitors. MobileFocus and MobileFocus Plus applications offer smartphone and tablet live monitoring and playback. The DVR can be controlled using multiple inputs, including a mouse, a front panel, or an IR remote control.
If you own a EverFocus digital video recorders (dvrs) and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the EverFocus ECOR HD Series 16-Channel 720p DVR ECORHD16X1/2T in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the EverFocus ECOR HD Series 16-Channel 720p DVR ECORHD16X1/2T:
Specifications
Video Input
16 x BNC
Video Output
HDMI x 1 / VGA x 1 / CVBS x 1
Recording Rate
NTSC: 240 fps @ 720p; PAL: 200 fps @ 720p
Playback Rate
NTSC: 240 fps @ 720p; PAL: 200 fps @ 720p
Compression Format
H.264
Operating System
Linux embedded
Audio In/Out
16 In / 1 Out
Alarm I/O
16 In / 2 Out
Internal Storage
3.5" HDD x 4 (support non DVD burner max 16 TB) 3.5" HDD x 2 (max 8 TB) and DVD burner x 1
HDD
2 TB
External Storage
eSATA x 1 (supports non DVD burner model)
Network Protocols
10/100/1000 Ethernet x 1/TCP-IP / DHCP / PPPoE / DDNS / SMTP / NTP USB: USB 2.0 x 2
RS-232 / RS-485
0/1
Configuration
OSD UI / Webpage
Mobile Viewing
iOS, Android
Pentaplex Operation
Simultaneous Live, Recording, Playback, Archive and Remote viewing
Dual Streaming
Yes
Recording Mode
Manual, Schedule, Event
User Access
3 Levels of user access
PTZ Protocols
Pelco D, Pelco P, Samsung, EverFocus, Transparent
Power Source
12 V, 6 A or 12 V, 8 A (Option for DVD burner model 3.5" HDD x 4)
Power Consumption
72 W maximum or 96 W maximum (Option for DVD burner model 3.5" HDD x 4)
The user manual for the EverFocus ECOR HD Series 16-Channel 720p DVR ECORHD16X1/2T can be downloaded in .pdf
format if it did not come with your new digital video recorders (dvrs), although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other EverFocus users keep a unique electronic library
for EverFocus digital video recorders (dvrs)s,
where you can use our link to download the user manual for the EverFocus ECOR HD Series 16-Channel 720p DVR ECORHD16X1/2T.
The user manual lists all of the functions of the EverFocus ECOR HD Series 16-Channel 720p DVR ECORHD16X1/2T,
all the basic and advanced features and tells you how to use the digital video recorders (dvrs).
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from EverFocus service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the EverFocus ECOR HD Series 16-Channel 720p DVR ECORHD16X1/2T. User manuals are also
available on the EverFocus website under Surveillance - Surveillance Video - Digital Video Recorders (DVRs).
