User manual EverFocus ECOR264-4F2 4-channel H.264 DVR (2 TB) ECOR264-4F2/2TB
Operating instructions and pdf manual for use - EverFocus ECOR264-4F2 4-channel H.264 DVR (2 TB) ECOR264-4F2/2TB User manual, User manual EverFocus ECOR264-4F2 4-channel H.264 DVR (2 TB) ECOR264-4F2/2TB, EverFocus, ECOR264-4F2, 4-channel, H.264, DV
User manual for EverFocus ECOR264-4F2 4-channel H.264 DVR (2 TB) ECOR264-4F2/2TB
Manufacturer: EverFocus
Basic description and contents of package
Product classification: Surveillance - Surveillance Video - Digital Video Recorders (DVRs)
Safety instructions
Startup and operation of the digital video recorders (dvrs)
Tips for setting up your EverFocus
Settings and expert assistance
Contact EverFocus service
Troubleshooting
Warranty information
Price: 530 USD
We recommend checking out our discussion threads on the EverFocus ECOR264-4F2 4-channel H.264 DVR (2 TB) ECOR264-4F2/2TB,
which address similar problems with connecting and setting up Digital Video Recorders (DVRs) EverFocus.
User manual for the EverFocus ECOR264-4F2 4-channel H.264 DVR (2 TB) ECOR264-4F2/2TB
The user manual for the EverFocus ECOR264-4F2 4-channel H.264 DVR (2 TB) ECOR264-4F2/2TB provides
necessary instructions for the proper use of the product Surveillance - Surveillance Video - Digital Video Recorders (DVRs).

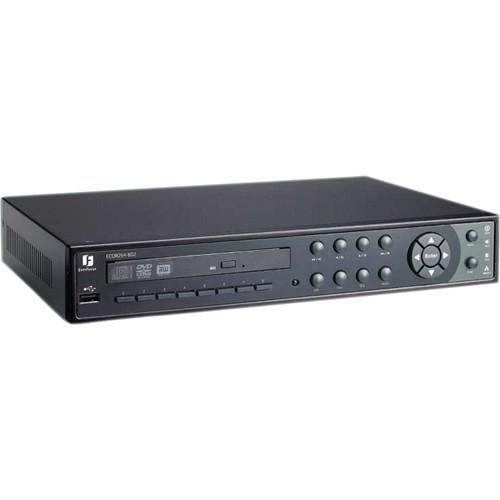

The Everfocus ECOR264-4F2 4-channel H.264 DVR (2 TB) has a maximum display resolution of 1280 x 1024, and records real-time footage at resolutions up to 704 x 576 in H.264 format, offering high-quality video at low data rates. You can configure the image resolution and frame rate for individual cameras to record in D1 resolution as well as CIF or 2CIF resolutions that utilize the entire 240 CIF FPS recording capacity of the unit.
With pentaplex operation, you can simultaneously view live footage, record, playback, backup, and access the network. Playback search is simplified, allowing you to locate events without having to slog through hours of recordings with options like time, event, and snapshot.
In case of any movement in the vicinity under surveillance, the motion detection sensor triggers an alarm and instantly sends out an email notification to your inbox. Recorded footage can be instantly viewed from miles away using a smartphone or PDA. For enhanced security, the DVR has a password protection feature that prevents unauthorized users from operating the system or viewing crucial data. A free DDNS service allows you to set up a remote connection to view the live footage from anywhere in the world.
If you own a EverFocus digital video recorders (dvrs) and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the EverFocus ECOR264-4F2 4-channel H.264 DVR (2 TB) ECOR264-4F2/2TB in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the EverFocus ECOR264-4F2 4-channel H.264 DVR (2 TB) ECOR264-4F2/2TB:
1 main monitor output, 1 Vp-p at 75 Ohm, BNC 1 main monitor output VGA, 15-pin Sub-D
Video Compression
H.264
Display Resolution VGA
1280 x 1024 / 800 x 600 / 60 Hz
Recording Resolution
704 x 576, 704 x 288, 352 x 288
Recording Rate
1 to 100 IPS (352 x 288) total / 1 to 100 IPS (704 x 288) total / 1 to 50 IPS (704 x 576) total 1 to 25 IPS individual setup per channel for normal and event recording (remaining rate to be distributed among remaining channels)
Recording Modes
Continuous, schedule or event recording
Playback search
Via date/time or event, smart search incl. snapshot search function
Video Pause
Yes
Video Loss Detection
Yes
Motion Detection
Yes, with configurable detection area (22 x 18) and sensitivity
Event Log
Yes
Alarm Input
4 alarm inputs
Alarm Output
1 alarm output
Setup
On-screen display with graphic user interface (GUI)
Control
USB mouse control, front panel control, IR remote control Optional: network, RS-485 keyboard EKB 500
The user manual for the EverFocus ECOR264-4F2 4-channel H.264 DVR (2 TB) ECOR264-4F2/2TB can be downloaded in .pdf
format if it did not come with your new digital video recorders (dvrs), although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other EverFocus users keep a unique electronic library
for EverFocus digital video recorders (dvrs)s,
where you can use our link to download the user manual for the EverFocus ECOR264-4F2 4-channel H.264 DVR (2 TB) ECOR264-4F2/2TB.
The user manual lists all of the functions of the EverFocus ECOR264-4F2 4-channel H.264 DVR (2 TB) ECOR264-4F2/2TB,
all the basic and advanced features and tells you how to use the digital video recorders (dvrs).
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from EverFocus service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the EverFocus ECOR264-4F2 4-channel H.264 DVR (2 TB) ECOR264-4F2/2TB. User manuals are also
available on the EverFocus website under Surveillance - Surveillance Video - Digital Video Recorders (DVRs).
