User manual Evertz Microsystems 7881DEC-H264HD H.264/AVC 7881DEC-H264HD 3RU

Operating instructions and pdf manual for use - Evertz Microsystems 7881DEC-H264HD H.264/AVC 7881DEC-H264HD 3RU User manual, User manual Evertz Microsystems 7881DEC-H264HD H.264/AVC 7881DEC-H264HD 3RU, Evertz, Microsystems, 7881DEC-H264HD, H.264/AV


User manual for Evertz Microsystems 7881DEC-H264HD H.264/AVC 7881DEC-H264HD 3RU

Evertz Microsystems 7881DEC-H264HD H.264/AVC 7881DEC-H264HD 3RU
  • Manufacturer: Evertz Microsystems
  • Basic description and contents of package
  • Product classification: Professional Video - Signal Processing & Distribution - Analog & Digital Converters
  • Safety instructions
  • Startup and operation of the analog & digital converters
  • Tips for setting up your Evertz Microsystems
  • Settings and expert assistance
  • Contact Evertz Microsystems service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Evertz Microsystems 7881DEC-H264HD H.264/AVC 7881DEC-H264HD 3RU, which address similar problems with connecting and setting up Analog & Digital Converters Evertz Microsystems.



User manual for the Evertz Microsystems 7881DEC-H264HD H.264/AVC 7881DEC-H264HD 3RU

The user manual for the Evertz Microsystems 7881DEC-H264HD H.264/AVC 7881DEC-H264HD 3RU provides necessary instructions for the proper use of the product Professional Video - Signal Processing & Distribution - Analog & Digital Converters.

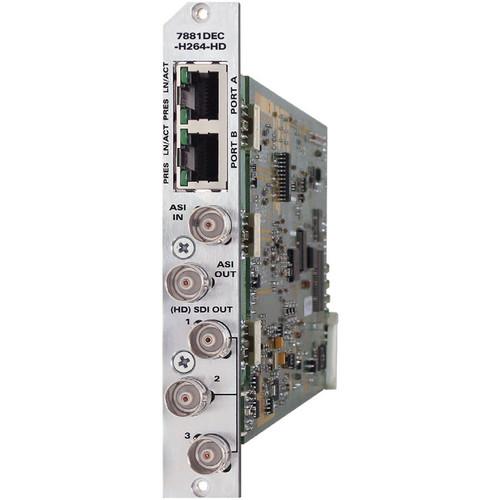

This version of the Evertz Microsystems 7881DEC-H264HD H.264/AVC Decoder includes a 3RU back plate for the 7800FR frame.

As the broadcast landscape continues to evolve, the need for a higher class of compression encoder that uses the latest in compression technology becomes more relevant to the overall success of the operation. The Evertz 7881DEC-H264HD(7881DEC) video contribution decoder is designed to satisfy this requirement--when paired with the 7881ENC-H264HD professional encoder.

This module has been designed for high quality, low latency compression of HD/SD-SDI video and audio signals over any transport network, including IP/MPLS, satellite and sonet. The decoder is equipped with an enhanced H.264/AVC (MPEG-4 Part 10) video compression engine designed to deliver high quality video with low latency--as low as 100 ms end to end.

The decoder also includes a dedicated control port that offers a built-in web server for quick and easy configuration, including true SNMP control from the VistaLINK NMS when paired with a frame controller.
If you own a Evertz Microsystems analog & digital converters and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Evertz Microsystems 7881DEC-H264HD H.264/AVC 7881DEC-H264HD 3RU in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Evertz Microsystems 7881DEC-H264HD H.264/AVC 7881DEC-H264HD 3RU:
Specifications
    Supported Resolutions 1920 x 1080 at 25, 29.97
    1280 x 720 at 50, 59.94
    720 x 576 at 25 Hz (PAL)
    720 x 480i at 29.97 Hz (NTSC) 480i: 720x480
    Compression Format Video: H.264/AVC (MPEG-4 Part 10)
    Audio: MPEG-1 Audio Layer II, Dolby-E and Dolby AC-3 passthrough
    Connectivity 1 x ASI input on BNC connector
    3 x HD-SDI/SD-SDI output on BNC connector
    1 x ASI output on BNC connector
    2 x Ethernet on RJ-45 connector - for data and control
    Power Requirements 12 VDC / 23 W - supplied by frame
    The user manual for the Evertz Microsystems 7881DEC-H264HD H.264/AVC 7881DEC-H264HD 3RU can be downloaded in .pdf format if it did not come with your new analog & digital converters, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Evertz Microsystems users keep a unique electronic library for Evertz Microsystems analog & digital converterss, where you can use our link to download the user manual for the Evertz Microsystems 7881DEC-H264HD H.264/AVC 7881DEC-H264HD 3RU.

    The user manual lists all of the functions of the Evertz Microsystems 7881DEC-H264HD H.264/AVC 7881DEC-H264HD 3RU, all the basic and advanced features and tells you how to use the analog & digital converters. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Evertz Microsystems service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Evertz Microsystems 7881DEC-H264HD H.264/AVC 7881DEC-H264HD 3RU. User manuals are also available on the Evertz Microsystems website under Professional Video - Signal Processing & Distribution - Analog & Digital Converters.
