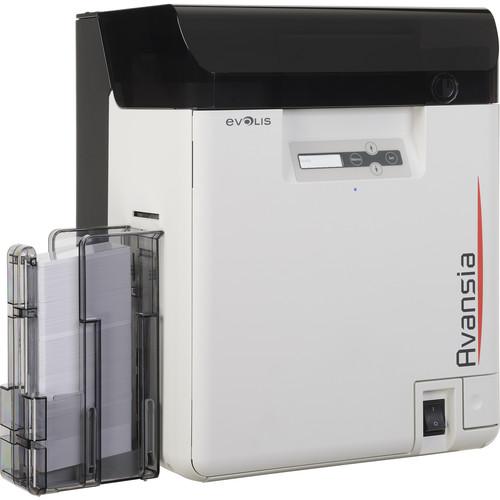

Click to enlarge image
|
We recommend checking out our discussion threads on the Evolis Avansia Duplex Retransfer Card Printer AV1HBHLBBD,
which address similar problems with connecting and setting up ID Card Printers Evolis.
|
User manual for the Evolis Avansia Duplex Retransfer Card Printer AV1HBHLBBD
The user manual for the Evolis Avansia Duplex Retransfer Card Printer AV1HBHLBBD provides
necessary instructions for the proper use of the product Computers & Solutions - Printers & Accessories - ID Card Printers.
Achieve high resolution imaging with the dye sublimation and retransfer technology found in the Avansia Duplex Retransfer Card Printer from Evolis, available here with the Evolis Elyctis dual smart card and contactless (IDENTIV chipset) encoder and a dual high/low-coercivity 3-track magnetic stripe encoder. It can reach a print resolution of 600 dpi for highly detailed images and sharp text and can work single-sided YMCK at up to 144 cards per hour or double-sided YMCKK at up to 96 cards per hour. Also, it uses CR-80 cards and has over-the-edge printing which provide true borderless printing.
For handling cards it features a 250-card input tray and a 250-card output as well as a 30-card reject tray. Also, the front panel has a two-line LCD for settings and status along with an LED indicator light. Security has been improved with an RFID electronic key which can be removed to prevent use of the printer and there is a Kensington lock slot. Additionally, it has both USB 2.0 and Ethernet interfaces for connecting to a PC.
|
If you own a Evolis id card printers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Evolis Avansia Duplex Retransfer Card Printer AV1HBHLBBD in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Evolis Avansia Duplex Retransfer Card Printer AV1HBHLBBD:
| Print Technology | Dye sublimation / reverse-transfer technology | | Resolution | 600 dpi | | Color Depth | 24-bit, 256 levels per color | | Ribbon Options | Clear Transfer Film: 500 prints/roll
Holographic Transfer Film: 400 prints/roll
YMCK Ribbon: 500 prints/roll
YMCKK Ribbon: 400 prints/roll
YMCKI Ribbon: 400 prints/roll
YMCKH Ribbon: 400 prints/roll
YMCFK Ribbon: 400 prints/roll | | Print Speed | Single-Sided Color YMCK: 144 cards/hour (25 sec/card)
Double-Sided Color YMCKK: 96 cards/hour (37.5 sec/card) | | Borderless Printing | Yes, over-the-edge | | Duplex Printing | Yes, reverse transfer | | Memory | 64 MB RAM | | Encoding | Dual High/Low-Coercivity 3-Track Magnetic Stripe Encoder
Evolis Elyctis Dual Smart Card and Contactless (IDENTIC chipset) Encoder | | Capacity | Input: 250 cards
Output: 250 cards
Reject Tray: 30 cards | | Card Type | PVC, composite PVC, PET-F, PET-G, polycarbonate, ABS | | Card Sizes | CR-80: 3.375 x 2.125" (85.6 x 54.0 mm) | | Media Thickness | 30 mil (0.76 mm) | | Interface | USB 2.0
10/100BASE-T Ethernet | | Compatible Operating Systems | Windows XP SP2 (32-bit), Vista (32-bit), 7 (32/64-bit), 8 (32/64-bit) | | Display | Two-line LCD
LED status indicator | | Security | Kensington lock slot
RFID locking key | | Acoustic Noise | Operating: 53 dB(A)
Waiting: 45 dB(A) | | Compliance | RoHS, CE, FCC, UL, IEC | | Power Requirements | 90-125, 220-240 VAC, 50/60 Hz | | Operating Conditions | Temperature: 50 to 86°F (10 to 30°C)
Humidity: 20 to 80%, non-condensing
Ventilation: Open air | | Storage Conditions | Temperature: -4 to 140°F (-20 to 60°C) | | Dimensions | 17.2 x 13.4 x 11.7" (43.6 x 34.0 x 29.7 cm) | | Weight | 44.1 lb (20 kg) | |
The user manual for the Evolis Avansia Duplex Retransfer Card Printer AV1HBHLBBD can be downloaded in .pdf
format if it did not come with your new id card printers, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Evolis users keep a unique electronic library
for Evolis id card printerss,
where you can use our link to download the user manual for the Evolis Avansia Duplex Retransfer Card Printer AV1HBHLBBD.
The user manual lists all of the functions of the Evolis Avansia Duplex Retransfer Card Printer AV1HBHLBBD,
all the basic and advanced features and tells you how to use the id card printers.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Evolis service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Evolis Avansia Duplex Retransfer Card Printer AV1HBHLBBD. User manuals are also
available on the Evolis website under Computers & Solutions - Printers & Accessories - ID Card Printers.
