User manual for Evolis Badgy100 Single-Sided Card Printer B12U0000RS
Overall Rating: 5.0
100% of respondents would recommend this to a friend.
- Manufacturer: Evolis
- Basic description and contents of package
- Product classification: Computers & Solutions - Printers & Accessories - ID Card Printers
- Safety instructions
- Startup and operation of the id card printers
- Tips for setting up your Evolis
- Settings and expert assistance
- Contact Evolis service
- Troubleshooting
- Warranty information
Click to enlarge image
|
We recommend checking out our discussion threads on the Evolis Badgy100 Single-Sided Card Printer B12U0000RS,
which address similar problems with connecting and setting up ID Card Printers Evolis.
|
User manual for the Evolis Badgy100 Single-Sided Card Printer B12U0000RS
The user manual for the Evolis Badgy100 Single-Sided Card Printer B12U0000RS provides
necessary instructions for the proper use of the product Computers & Solutions - Printers & Accessories - ID Card Printers.

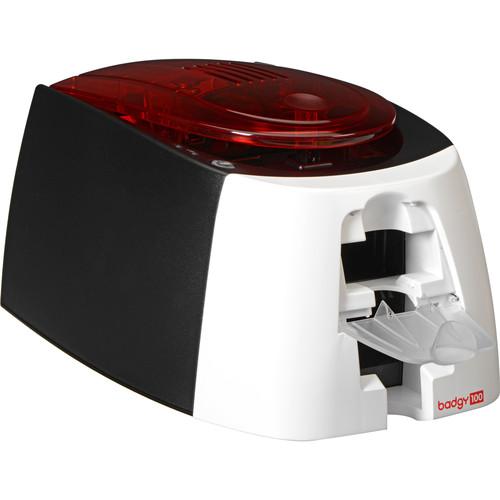

Produce a variety of ID cards and badges with the compact Badgy100 Single-Sided Card Printer from Evolis. This printer utilizes dye sublimation and thermal transfer technology to produce prints at 300 dpi and with 16 million colors. Also, it is quite fast with a color YMCKO print speed of 80 cards per hour and a monochrome speed of 180 cards per hour. And, for standard compatibility it works with CR-80 cards from 20-30 mil thick.
General usage allows for single-sided printing with small margins of 0.05" and it has a 25-card input feeder and a 25-card output hopper for convenience. The Badgy100 also has an LED display for alerts such as cleaning and end of ribbon. There is even a Kensington-style lock slot for security and it offers USB 2.0 connectivity. Additionally, this unit comes with Evolis Badge Studio software for personalizing your cards to your needs.
|
If you own a Evolis id card printers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Evolis Badgy100 Single-Sided Card Printer B12U0000RS in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Evolis Badgy100 Single-Sided Card Printer B12U0000RS:
| Print Method | Dye sublimation / thermal transfer | | Print Resolution | 300 dpi, 16 million colors | | Ribbon Options | YMCKO: 100 prints/roll
Black Monochrome: 500 prints/roll | | Double/Single-Sided | Single, with 0.05" (1.35 mm) border | | Print Speed | Color YMCKO: 80 cards/hour (45 sec per card)
Black Monochrome: 180 cards/hour (16 sec per card) | | Print Size | CR-80, ISO 7810: 3.375 x 2.125" (85.6 x 54.0 mm) | | Card Type | PVC, composite PVC, and PET cards | | Media Thickness | 20-30 mil (0.50-0.76 mm) | | Capacity | Input: 25 cards (30 mil) or 40 cards (20 mil)
Output: 25 cards (30 mil) or 40 cards (20 mil) | | Encoding | None | | Duty Cycle | 500-2,500 cards per year
Card Lifespan: 1-3 years | | Interface | USB 2.0 | | Memory | 16 MB | | Compatible Operating Systems | Windows 8 (32/64-bit), 7 (32/64-bit), Vista (32/64-bit), XP SP3 (32/64-bit)
Mac OS X 10.6 or later | | Display | LEDs for graphic printer notifications (cleaning alerts, end of ribbon alert, ribbon due to end) | | Security | Kensington lock slot | | Certifications | Erp 2009/125/CE
CE, FCC, VCCI, CIS, CCC, KC
RoHS | | Acoustics | Operating: 60 dB(A)
Standby: Background noise level | | Power Requirements | Power Supply: 100-240 VAC, 50-60 Hz, 1.7 A
Printer: 24 VDC, 2.7 A | | Operating Conditions | Temperature: 59 to 86°F (15 to 30°C)
Humidity: 20 to 65% non-condensing | | Storage Conditions | Temperature: 23 to 158°F (-5 to 70°C)
Humidity: 20 to 70% non-condensing | | Dimensions | 5.8 x 7.9 x 10.9" (14.7 x 20.0 x 27.6 cm) | | Weight | 3.8 lb (1.7 kg) | | Package Weight | 8.75 lb | | Box Dimensions (LxWxH) | 14.9 x 12.2 x 11.4" | |
The user manual for the Evolis Badgy100 Single-Sided Card Printer B12U0000RS can be downloaded in .pdf
format if it did not come with your new id card printers, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Evolis users keep a unique electronic library
for Evolis id card printerss,
where you can use our link to download the user manual for the Evolis Badgy100 Single-Sided Card Printer B12U0000RS.
The user manual lists all of the functions of the Evolis Badgy100 Single-Sided Card Printer B12U0000RS,
all the basic and advanced features and tells you how to use the id card printers.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Evolis service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Evolis Badgy100 Single-Sided Card Printer B12U0000RS. User manuals are also
available on the Evolis website under Computers & Solutions - Printers & Accessories - ID Card Printers.
