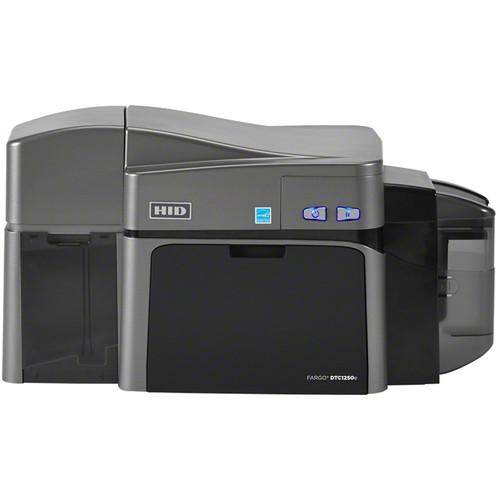

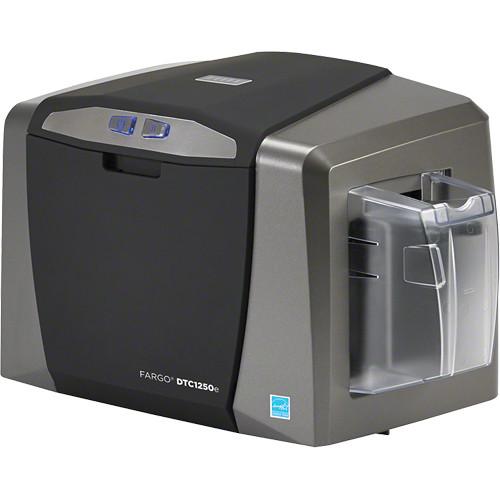

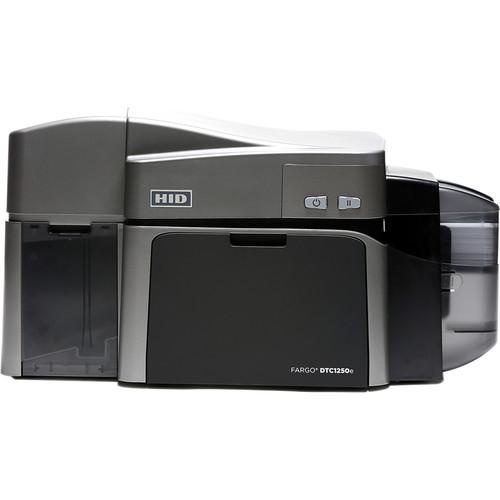

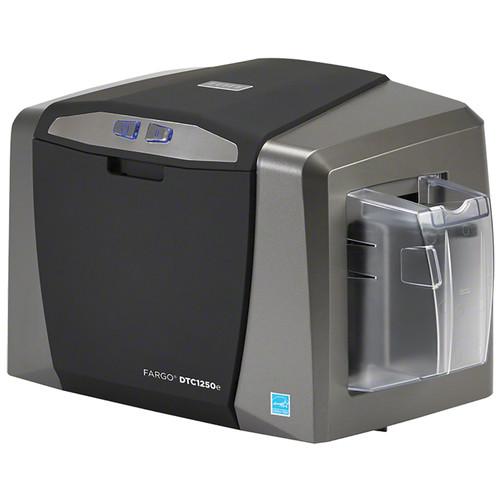

Click to enlarge image
|
We recommend checking out our discussion threads on the Fargo DTC1250e Dual-Sided ID Card Printer with Magnetic 50130,
which address similar problems with connecting and setting up ID Card Printers Fargo.
|
User manual for the Fargo DTC1250e Dual-Sided ID Card Printer with Magnetic 50130
The user manual for the Fargo DTC1250e Dual-Sided ID Card Printer with Magnetic 50130 provides
necessary instructions for the proper use of the product Computers & Solutions - Printers & Accessories - ID Card Printers.
With an internal print server for secure printing and a magnetic stripe encoder, the versatile Fargo DTC1250e Dual-Sided ID Card Printer is a well-featured printer that utilizes dye sublimation and resin thermal transfer processes to quickly create 300 dpi resolution prints. This dual-sided printer works with CR-80 and CR-79 adhesive back card sizes and can print edge-to-edge as well as encode ISO standard magnetic stripes for additional security. The printer is also fast with the ability to print black & white at a rate of 6 seconds per card or full color with two black resin panels at 24 seconds per card. The printer can also hold 100 cards in the input hopper and 100 cards in the output hopper.
The embedded Swift ID badging application allows you to design custom badges on the spot and the FARGO Workbench maintenance software has monitoring features that will make maintaining your printer easier. The DTC1250e also has a SmartScreen graphical display for setup and operation and is ENERGY STAR qualified. It has a USB 2.0 interface for connecting to a computer.
|
If you own a Fargo id card printers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Fargo DTC1250e Dual-Sided ID Card Printer with Magnetic 50130 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Fargo DTC1250e Dual-Sided ID Card Printer with Magnetic 50130:
| Printing Technology | Dye sublimation / resin thermal transfer | | Maximum Resolution | 300 dpi (11.8 dots/mm) continuous tone | | Colors Supported | 16.7 million / 256 shades per pixel | | Ribbon Options | EZ and ECO
Full-color with resin black and overlay panel, YMCKO (250 prints)
Resin black, standard (1000 prints)
ECO Only
Full-color half-panel with resin black and overlay pane, YMCKO (350 prints)
EZ Only
Full-color with two resin black panels and overlay panel, YMCKOK (200 prints)
Resin black and overlay panel, KO (500 prints)
Resin black, premium (1000 prints)
Dye-sublimation black and overlay panel, BO (500 prints)
Resin green, blue, red, white, silver, gold (1000 prints)
Silver and gold metallic (500 prints)
Rewrite technology, no ribbon is required
Card cleaning roller integrated into ribbon cartridge that is automatically replaced with each ribbon change | | Print Speed | K: 6 sec/card
KO: 8 sec/card
YMCKO: 16 sec/card
TMCKOK: 24 sec/card | | Card Sizes | CR-80: 3.375 x 2.125" (85.6 x 54.0 mm)
CR-79 Adhesive Back: 3.313 x 2.063" (84.1 x 52.4 mm) | | Print Area | CR-80 Edge-to-Edge: 3.36 x 2.11" (85.3 x 53.7 mm)
CR-79: 3.3 x 2.04" (83.8 x 51.8 mm) | | Media Thickness | 9-40 mil (0.229-1.016 mm) | | Double/Single-Sided | Dual | | Card Type | PVC of polyester card with polished PVC finish
Monochrome resign required for 100% polyester cards
Optical memory cards with PVC finish
Rewrite | | Paper Capacity | Input: 100 cards with 30 mil (0.762 mm) thickness
Output: 100 cards with 30 mil (0.762 mm) thickness | | Encoding | Dual high- and low-coercivity ISO magnetic stripe encoding, tracks 1, 2 and 3 | | Computer Interface | USB 2.0
Ethernet | | Memory | 32 MB RAM | | System & Software Requirements | Windows XP, Vista (32/64-bit), Server 2003 & 2008, 7, 8 (32/64-bit)
Mac OS X 10.5-10.8
Linux | | Front Panel Buttons | Color changing status buttons | | Certifications | Safety: UL 60950-2, CSA C22.2 (60950-07), and CE
EMC: FCC Class A, CE (EN 55022 Class A, EN 55024), CCC, BSMI, KC
Environmental: ENERGY STAR qualified | | Operating Temperature | 65 to 80°F (18 to 27°C) | | Humidity | 20-80%, non-condensing | | Power Requirements | 100-240 VAC, 50-60 Hz, 1.6 A max | | Dimensions | 9.8 x 18.7 x 9.2" (249 x 475 x 234 mm) | | Weight | 10 lb (4.5 kg) | |
The user manual for the Fargo DTC1250e Dual-Sided ID Card Printer with Magnetic 50130 can be downloaded in .pdf
format if it did not come with your new id card printers, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Fargo users keep a unique electronic library
for Fargo id card printerss,
where you can use our link to download the user manual for the Fargo DTC1250e Dual-Sided ID Card Printer with Magnetic 50130.
The user manual lists all of the functions of the Fargo DTC1250e Dual-Sided ID Card Printer with Magnetic 50130,
all the basic and advanced features and tells you how to use the id card printers.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Fargo service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Fargo DTC1250e Dual-Sided ID Card Printer with Magnetic 50130. User manuals are also
available on the Fargo website under Computers & Solutions - Printers & Accessories - ID Card Printers.
