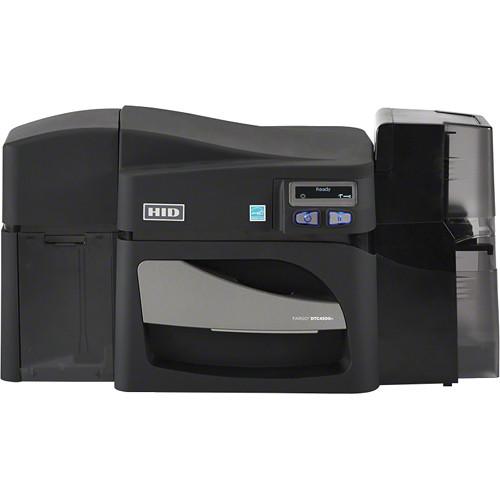

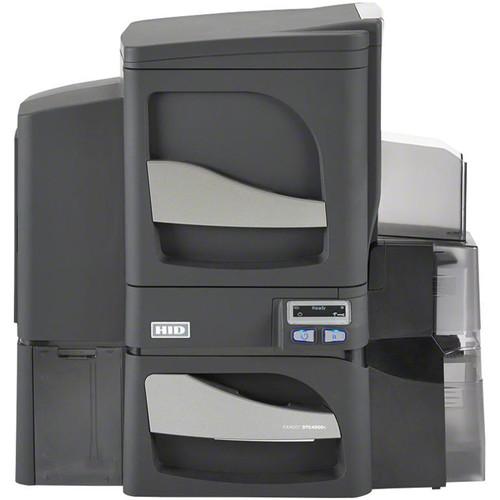

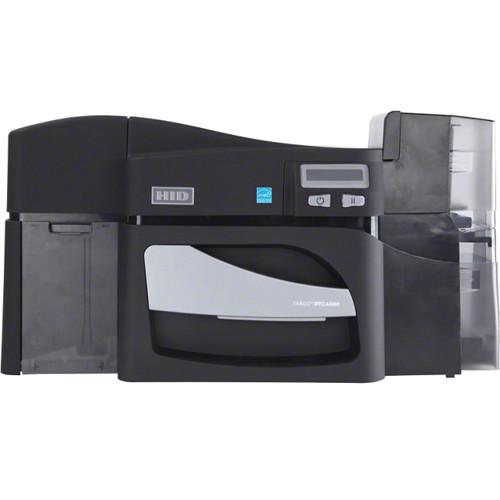

Click to enlarge image
|
We recommend checking out our discussion threads on the Fargo DTC4500e Dual-Sided Card Printer with Dual-Sided 055500,
which address similar problems with connecting and setting up ID Card Printers Fargo.
|
User manual for the Fargo DTC4500e Dual-Sided Card Printer with Dual-Sided 055500
The user manual for the Fargo DTC4500e Dual-Sided Card Printer with Dual-Sided 055500 provides
necessary instructions for the proper use of the product Computers & Solutions - Printers & Accessories - ID Card Printers.
Built to withstand large print volumes required by organizations, the DTC4500e Dual-Sided Card Printer from Fargo comes equipped with a variety of features as well as dual-sided lamination that will allow users to quickly produce ID cards that suit their needs. This direct-to-card printer uses dye sublimation and thermal transfer technology to produce CR-80 and CR-79 adhesive backed cards with a 300 dpi resolution. Also, this system allows for fast print speeds of 16 seconds per card in YMCKO and 6 seconds per card in monochrome. And, this model can print double-sided and edge-to-edge for optimum quality.
Batch jobs are simplified by the use of a 200-card input hopper and a 100-card output hopper. There is also a 100-card reject hopper for getting misprints out of the way. Checking print status is easy with a SmartScreen graphical display on the front panel and the inclusion of the embedded Swift ID card badging for quickly making ID cards and the FARGO Workbench with Color Assist tool for diagnostics and matching colors for accurate prints. Additionally, it has both USB 2.0 and Ethernet connectivity options.
|
If you own a Fargo id card printers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Fargo DTC4500e Dual-Sided Card Printer with Dual-Sided 055500 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Fargo DTC4500e Dual-Sided Card Printer with Dual-Sided 055500:
| Printing Technology | Dye sublimation / resin thermal transfer | | Maximum Resolution | 300 dpi (11.8 dots/mm) continuous tone | | Colors Supported | 16.7 million / 256 shades per pixel | | Ribbon Options | Full-color with resin black and overlay panel, YMCKO, 500 prints, more economical and eco-friendly refill ribbon for cartridge (ECO only)
Full-color half-panel with resin black and overlay panel, YMCKO, 850 prints, ECO only
Full-color with two resin black panels and overlay panel, YMCKOK, 500 prints, ECO only
Full-color with fluorescing, resin black and overlay panel, YMCFKO, 500 prints, ECO only
Full-color with fluorescing, two resin black panels and overlay panel, YMCFKOK, 400 prints, ECO only
Full-color with two resin black panels and overlay panel, YMCKK, 500 prints, ECO only
Resin black and overlay panel, KO, 1250 prints, ECO only
Dye-sublimation black and overlay panel, BO, 1250 prints, ECO only
Resin black (standard and premium), 3000 prints, ECO only
Resin green, blue, red, white, silver, and gold, 2000 prints, ECO only
Rewrite technology | | Print Speed | K: 6 sec/card
KO: 8 sec/card
YMCKO: 16 sec/card
YMCKOK: 24 sec/card | | Card Sizes | CR-80: 3.375 x 2.125" (85.6 x 54.0 mm)
CR-79 Adhesive Back: 3.313 x 2.063" (84.1 x 52.4 mm) | | Print Area | CR-80 Edge-to-Edge: 3.36 x 2.11" (85.3 x 53.7 mm)
CR-79: 3.3 x 2.04" (83.8 x 51.8 mm) | | Media Thickness | Print Only: 9-40 mil (0.229-1.016 mm)
Print & Lamination: 30-40 mil (0.762-1.020 mm) | | Card Type | PVC or polyester cards with polished PVC finish
Monochrome resin required for 100% polyester cards
Optical memory cards with PVC finish
Rewrite | | Capacity | Input: 200 cards with 30 mil (0.762 mm) thickness
Output: 100 cards with 30 mil (0.762 mm) thickness
Reject: 100 cards with 30 mil (0.762 mm) thickness | | Care & Cleaning | Card cleaning roller integrated into ribbon cartridge; cleaning roller is automatically replaced with each ribbon change | | Advanced Features | Dual-sided lamination | | Computer Interface | USB 2.0
Ethernet with internal print server | | Memory | 32 MB RAM | | Compatible Operating Systems | Windows XP, Vista (32/64-bit), Server 2003, Server 2008, 7, 8 (32/64-bit)
Mac OS X 10.5-10.9
Linux | | Security | Printer access password protected | | Front Panel | SmartScreen graphical display
Buttons | | Certifications | Safety: UL 60950-2, CSA C22.2 (60950-07), and CE
EMC: FCC Class A, CE (EN 55022 Class A, EN 55024), CCC, BSMI, KC
Environmental: Refillable supply cartridges (ECO) | | Operating Temperature | 65 to 80°F (18 to 27°C) | | Humidity | 20-80%, non-condensing | | Power Requirements | 100-240 VAC, 50-60 Hz, 1.6 A max | | Dimensions | 18.9 x 18.7 x 9.2" (48.0 x 47.5 x 23.4 cm) | | Weight | 20 lb (9.1 kg) | |
