User manual for the Fargo DTC4500e Dual-Sided Card Printer with Single-Sided 55410
The user manual for the Fargo DTC4500e Dual-Sided Card Printer with Single-Sided 55410 provides
necessary instructions for the proper use of the product Computers & Solutions - Printers & Accessories - ID Card Printers.

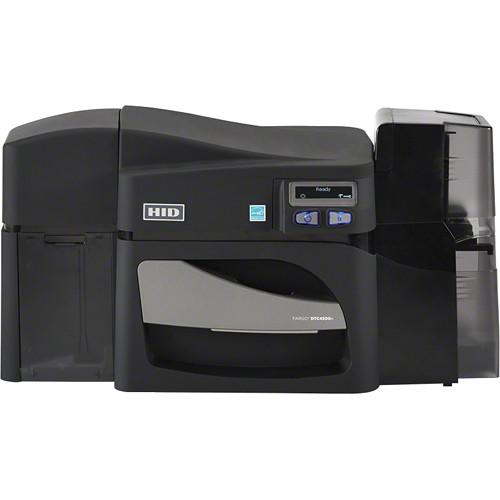

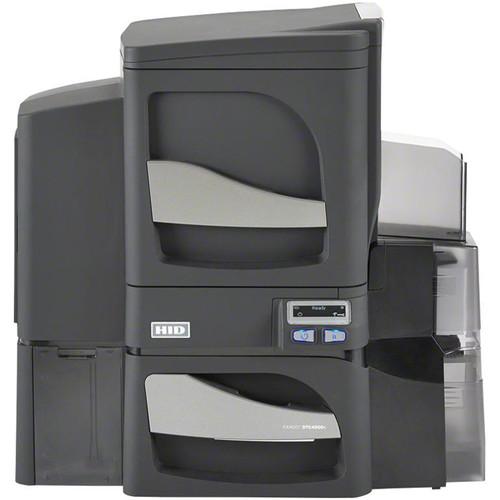

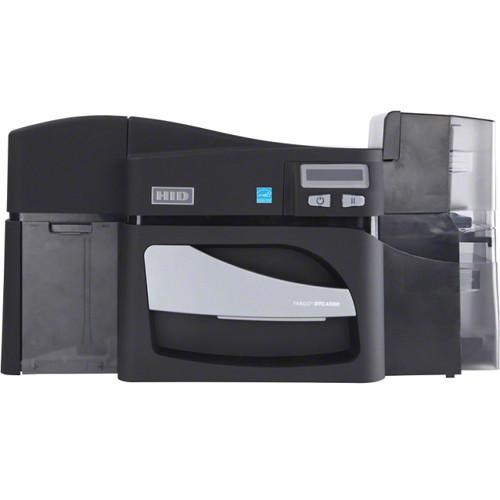

Built to withstand large print volumes required by organizations, the DTC4500e Dual-Sided Card Printer from Fargo comes equipped with a variety of features as well as single-sided lamination and magnetic stripe encoding options that will allow users to quickly produce ID cards that suit their needs. This direct-to-card printer uses dye sublimation and thermal transfer technology to produce CR-80 and CR-79 adhesive backed cards with a 300 dpi resolution. Also, this system allows for fast print speeds of 16 seconds per card in YMCKO and 6 seconds per card in monochrome. And, this model can print double-sided and edge-to-edge for optimum quality.
Batch jobs are simplified by the use of a 200-card input hopper and a 100-card output hopper. There is also a 100-card reject hopper for getting misprints out of the way. Checking print status is easy with a SmartScreen graphical display on the front panel and the inclusion of the embedded Swift ID card badging for quickly making ID cards and the FARGO Workbench with Color Assist tool for diagnostics and matching colors for accurate prints. Additionally, it has both USB 2.0 and Ethernet connectivity options.
If you own a Fargo id card printers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Fargo DTC4500e Dual-Sided Card Printer with Single-Sided 55410 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Fargo DTC4500e Dual-Sided Card Printer with Single-Sided 55410:
Full-color with resin black and overlay panel, YMCKO, 500 prints, more economical and eco-friendly refill ribbon for cartridge (ECO only) Full-color half-panel with resin black and overlay panel, YMCKO, 850 prints, ECO only Full-color with two resin black panels and overlay panel, YMCKOK, 500 prints, ECO only Full-color with fluorescing, resin black and overlay panel, YMCFKO, 500 prints, ECO only Full-color with fluorescing, two resin black panels and overlay panel, YMCFKOK, 400 prints, ECO only Full-color with two resin black panels and overlay panel, YMCKK, 500 prints, ECO only Resin black and overlay panel, KO, 1250 prints, ECO only Dye-sublimation black and overlay panel, BO, 1250 prints, ECO only Resin black (standard and premium), 3000 prints, ECO only Resin green, blue, red, white, silver, and gold, 2000 prints, ECO only Rewrite technology
CR-80: 3.375 x 2.125" (85.6 x 54.0 mm) CR-79 Adhesive Back: 3.313 x 2.063" (84.1 x 52.4 mm)
Print Area
CR-80 Edge-to-Edge: 3.36 x 2.11" (85.3 x 53.7 mm) CR-79: 3.3 x 2.04" (83.8 x 51.8 mm)
Media Thickness
Print Only: 9-40 mil (0.229-1.016 mm) Print & Lamination: 30-40 mil (0.762-1.020 mm)
Card Type
PVC or polyester cards with polished PVC finish Monochrome resin required for 100% polyester cards Optical memory cards with PVC finish Rewrite
Capacity
Input: 200 cards with 30 mil (0.762 mm) thickness Output: 100 cards with 30 mil (0.762 mm) thickness Reject: 100 cards with 30 mil (0.762 mm) thickness
Care & Cleaning
Card cleaning roller integrated into ribbon cartridge; cleaning roller is automatically replaced with each ribbon change
Safety: UL 60950-2, CSA C22.2 (60950-07), and CE EMC: FCC Class A, CE (EN 55022 Class A, EN 55024), CCC, BSMI, KC Environmental: Refillable supply cartridges (ECO)
Operating Temperature
65 to 80°F (18 to 27°C)
Humidity
20-80%, non-condensing
Power Requirements
100-240 VAC, 50-60 Hz, 1.6 A max
Dimensions
18.9 x 18.7 x 9.2" (48.0 x 47.5 x 23.4 cm)
Weight
20 lb (9.1 kg)
