User manual for the Fat Shark Attitude V2 Headset Bundle FSV2300
The user manual for the Fat Shark Attitude V2 Headset Bundle FSV2300 provides
necessary instructions for the proper use of the product Camcorders - Aerial Imaging & Drones - FPV (First Person View) Components.

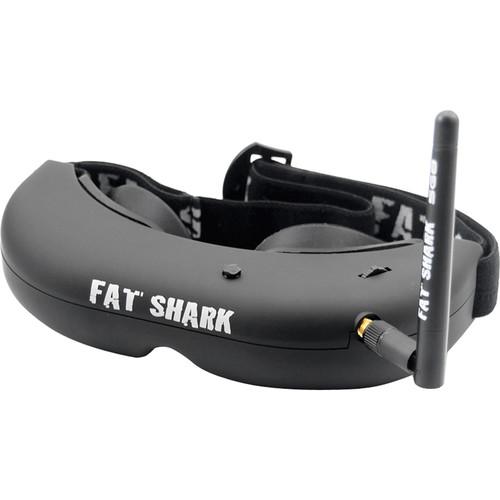

The Attitude V2 Headset Bundle from Fat Shark is designed for users get started with first-person viewing (FPV) using their existing RC aircraft. It combines a pair of FPV goggles with dual VGA resolution displays, a 600TVL fixed-focal-length CMOS camera, and all the components required for park-flying applications. The components all plug together, so no soldering is required.
The Attitude V2 features a 5.8GHz receiver with a SpiroNET antenna. The headset is powered by 7 to 13 VDC from 2S/3S RC battery packs via balance lead connectors. A battery pack and banana plug charge cable come included. Ports on the headset include an AV in/out, headphone jack, power in, and a PS/2 DIN port for being powered from external radios/transmitters. A head tracker cable is included for controlling the position of the camera using your Spektrum/JR style transmitter. For a fully immersive FPV experience, the CMOS 600TVL fixed camera which can be combined with the optional Pan/Tilt/Roll Camera Mount to take full advantage of the built-in 3-axis head tracker functionality of the Attitude headset. The headset accepts a diopter insert to accommodate those who wear glasses.
Please note: Please use in accordance with all applicable Federal, State, and local laws.
|
If you own a Fat Shark fpv (first person view) components and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Fat Shark Attitude V2 Headset Bundle FSV2300 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Fat Shark Attitude V2 Headset Bundle FSV2300:
| Optics | 35° diagonal FOV
Interpupillary Distance (IPD): 2.3 to 2.7" (59 to 69 mm) | | Display | Two full color LCD LED backlit Kopin CyberDisplays
VGA (640 x 480), 922,000 pixels per display
| | Interface | 1 x 3.5 mm AV in/out
1 x Power in
1 x 3.5 mm headphone jack
1 x PS/2 DIN head tracker data port | | System | NTSC/PAL auto select
Interlaced only (no progressive scan) | | Head Tracker | Trinity 3-Axis | | Antenna | 5.8 GHz, 3 dBi external dipole | | User Controls | Channel selection
Volume control
Mode selection (wire/wireless)
Contrast/brightness control | | Receiver | 5.8 GHz, 7-channel
Operates at: 5740 MHz, 5760 MHz, 5780 MHz, 5800 MHz, 5820 MHz, 5840 MHz, 5860 MHz
Note: Fat Shark headsets use NexWave brand RF modules. Compatibility is only guaranteed with Fat Shark and ImmersionRC transmitters | | Power Requirements | 7 to 13 VDC from 2S/3S supply (battery not included) | | Power Consumption | 300 mA (wireless mode, at 7.4V nominal)
150 mA (direct mode, RX off, at 7.4V nominal) | | Weight | 5.3 oz (150 g) | | Frequency Band | 5.8 GHz | | Operating Range | 656' (200 m) | | Power Requirements | 6 to 16 VDC from 2S, 3S, or 4S lithium polymer battery packs | | Imaging Sensor | 1/3" CMOS
600 TVL | | System | NTSC or PAL (selectable; jumper on = PAL) | | Focal Length | 2.8 mm | | Field of View | 100° diagonal | | Lens Coating | IR coated | | Dimensions | Body: 0.83 x 0.83 x 0.47" (21 x 21 x 12 mm) Lens extrude (Depth x Diam.): 0.59 x 0.55" (15 x 14 mm) | | Weight | 0.5 oz (15 g) | | Power Supply | 7 to 16 VDC, via battery balance lead (2S to 4S supply) | | Power Consumption | 390 mA at 7.4 VDC | | Total Weight | TX, camera, filtered power adapter, antenna, and wires: 1.5 oz (42 g) | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 8.8 x 6.7 x 2.8" | |
