User manual for the Feiyu Feiyu G4 QD 3-Axis Handheld Gimbal and GoPro HERO4 Silver

The user manual for the Feiyu Feiyu G4 QD 3-Axis Handheld Gimbal and GoPro HERO4 Silver provides necessary instructions for the proper use of the product Camcorders - Sports & Action Cameras.

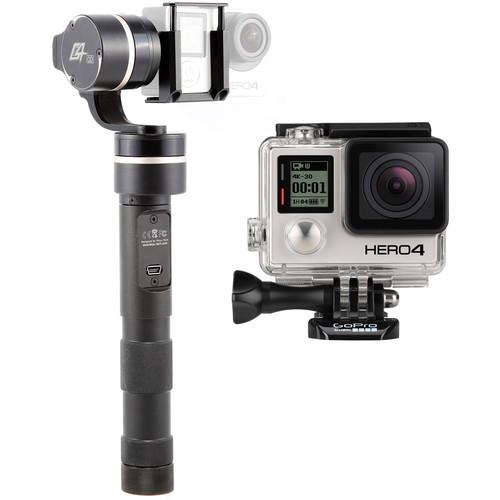

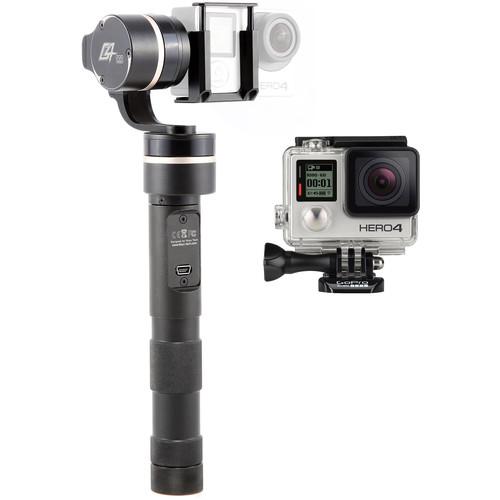

This B&H Kit pairs the Feiyu G4 QD 3-Axis Handheld Gimbal with a GoPro HERO4 Silver, allowing you to capture stabilized, free-floating footage at resolutions up to 2.7K (2704 x 1520) video at 30 fps. The motorized gimbal is held and operated using a single hand and features four different operating modes for increased creative possibilities. You can choose to lock the camera in place along all three axes (pan, tilt, and roll), or select modes where the camera will smoothly follow as you pan and tilt the handle. Switching between modes is done using a single LED push-button on the handle, which flashes to indicate the mode selected. The G4 is powered using two rechargeable 900mAh batteries, which slot into the handle. A battery indicator light on the device lets you know when it's time to recharge the batteries using the included charger.

In addition to 2.7K video, the HERO4 Silver can record 4K Ultra HD (3840x2160) video up to 15 fps, 1080p video up to 60 fps, and 720p video up to 120 fps for slow-motion playback. It can also take 12-megapixel still photos in single-shot or bursts up to 30 fps. The camera features a built-in rear LCD touchscreen display and is equipped with Wi-Fi and Bluetooth connectivity for pairing it with a mobile device or the separately available Wi-Fi Smart Remote. There is also a USB port for file transfer, charging, or to connect the separately available 3.5mm mic adapter.

Please see the links below for more information on the components of this kit.
If you own a sports & action cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Feiyu Feiyu G4 QD 3-Axis Handheld Gimbal and GoPro HERO4 Silver in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Feiyu Feiyu G4 QD 3-Axis Handheld Gimbal and GoPro HERO4 Silver:
Specifications
  • Feiyu G4 QD 3-Axis Handheld Gimbal for GoPro and Similar Action Cameras
    Compatibility GoPro and similar cameras 1.3 to 1.8" (33 to 46 mm) in height
    Motor 2804F
    Pan Angle -160° (left) to +160° (right) (held vertically)
    -50° (left) to +50° (right) (held horizontally)
    Tilt Angle -160° to +160° (held vertically)
    Roll Angle -50° to +50°
    Panning Following Rate 3°/s to 150°/s
    Tilt Following Rate 2°/s to 75°/s
    Motion Attitude Tracking Accuracy Minimum: 0.1°
    Standard: 0.2°
    Maximum: 0.5°

    (Motor overload <2G)
    Static Attitude Tracking Accuracy Minimum: 0.01°
    Standard: 0.02°
    Maximum: 0.05°

    (Gimbal in static mode)
    Start-Up Time 2.5 seconds
    Battery Type 2 x 18350 type, 900 mAh batteries
    Voltage 8.4 VDC (6 to 17 VDC)
    Overload Current Protection 800 mA
    Dimensions 9.4 x 3.0 x 2.6" (23.9 x 7.5 x 6.5 cm)
    Weight 10.2 oz (290 g) (without camera or batteries)
    Packaging Info
    Box Dimensions (LxWxH) 11.0 x 5.6 x 3.9"
  • GoPro HERO4 Silver
    Recording
    System NTSC/PAL
    Recording Media microSD/HC/XC Up To 64 GB

    Class 10 or UHS-1 rating required. See GoPro website for list of latest recommended cards.

    Video Format 4K
    H.264
    3840 x 2160p / 15 fps / 12.5 fps
    High Definition
    H.264
    2704 x 1520p / 30 fps / 25 fps / 24 fps
    High Definition
    H.264
    1920 x 1440p / 48 fps
    High Definition
    H.264
    1920 x 1440p / 30 fps / 25 fps / 24 fps
    High Definition
    H.264
    1920 x 1080p / 60 fps / 50 fps / 48 fps
    High Definition
    H.264
    1920 x 1080p / 30 fps / 25 fps / 24 fps
    High Definition
    H.264
    1280 x 960p / 100 fps / 60 fps / 50 fps
    High Definition
    H.264
    1280 x 720p / 120 fps / 100 fps
    High Definition
    H.264
    1280 x 720p / 50 fps / 30 fps / 25 fps
    High Definition
    H.264
    1280 x 720p / 30 fps / 25 fps
    Standard Definition
    H.264
    848 x 480p / 240 fps
    Aspect Ratio 16:9
    4:3
    Still Image Resolution JPEG: 12 Megapixel, 4000 x 3000 (4:3)
    JPEG: 7 Megapixel, 3000 x 2250 (4:3)
    JPEG: 5 Megapixel, 2560 x 1920 (4:3)
    Touchscreen Yes
    Exposure Control
    Interval Recording .5 sec
    1 sec
    2 sec
    5 sec
    10 sec
    30 sec
    60 sec
    Features
    Waterproof Depth Rating 131.0' / 40.0 m (Waterproof Housing)
    Wi-Fi Yes
    Input/Output Connectors
    Outputs 1x USB Mini-B For charging, optional 3.5mm mic adapter, and optional A/V cable
    1x HDMI D (Micro)

    USB port also serves as mic input using separately available 3.5mm adapter. Also supports composite output using a separately available A/V cable.

    General
    System Requirements Mac
    • OS X 10.8+
    • Core 2 Duo Processor or greater
    • 4 GB RAM

    Windows
    • 7
      8
    • Core 2 Duo Processor or greater
    • 4 GB RAM
    Battery Rechargeable Lithium-Ion Battery Pack Batteries, 3.8 VDC, 1160 mAh,
    Providing up to 2 Hours per Charge
    Charging Method USB
    Weight 2.93 oz / 83 g camera only
    5.19 oz / 147 g with housing
    Packaging Info
    Box Dimensions (LxWxH) 9.9 x 4.9 x 4.0"
