User manual for the Feiyu Feiyu G4 QD 3-Axis Handheld Gimbal and Ribcage Modified

The user manual for the Feiyu Feiyu G4 QD 3-Axis Handheld Gimbal and Ribcage Modified provides necessary instructions for the proper use of the product Camcorders - Sports & Action Cameras.

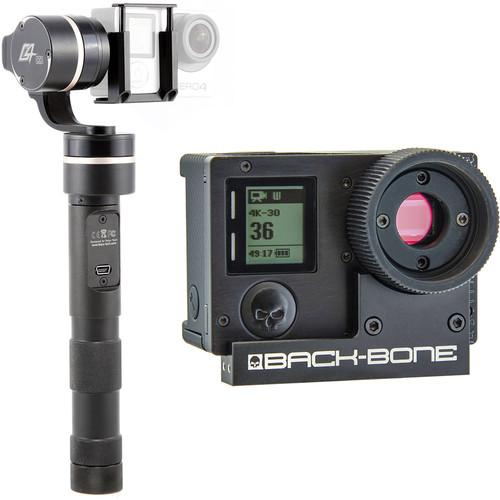

This B&H Kit pairs the Feiyu G4 QD 3-Axis Handheld Gimbal with a Back-Bone Gear Ribcage Modified GoPro HERO4 Black, allowing you to capture stabilized, free-floating footage at resolutions up to 4K Ultra HD (3840 x 2160) video at 30 fps using interchangeable lenses. The motorized gimbal is held and operated using a single hand and features four different operating modes for increased creative possibilities. You can choose to lock the camera in place along all three axes (pan, tilt, and roll), or select modes where the camera will smoothly follow as you pan and tilt the handle. Switching between modes is done using a single LED push-button on the handle, which flashes to indicate the mode selected. The G4 is powered using two rechargeable 900mAh batteries, which slot into the handle. A battery indicator light on the device lets you know when it's time to recharge the batteries using the included charger.

The Back-Bone Gear Ribcage HERO4 Black has been modified with an aluminum face plate and removable lens mount system, turning it into a compact, interchangeable lens camera. You can now select the right lens for a given shot. The camera is compatible with widely available M12, CS-Mount, and C-Mount lenses, as well as other types of lenses via optional C-mount adapters. This lets you take advantage of all the benefits that professional lenses have to offer, including manual focus and iris control, macro shooting, increased depth-of-field, and optical zoom. The HERO4's original ultra-wide lens is included and has been modified for use on the Ribcage. Additionally, all accessories and cables originally supplied with the HERO4 Black are included, as well as a custom GOcase for storing and carrying the camera, optional lenses, and accessories.

In addition to 4K video, the HERO4 Black can record 2.7K video at up to 60 fps, and 1080p video at up to 120 fps for slow-motion playback. It can also take 12-megapixel still photos in single-shot or bursts up to 30 fps. The camera is equipped with Wi-Fi and Bluetooth connectivity for pairing it with a mobile device or the separately available Wi-Fi Smart Remote. There is also a USB port for file transfer, charging, or to connect the separately available 3.5mm mic adapter.

Please see the links below for more information on the components of this kit.
If you own a sports & action cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Feiyu Feiyu G4 QD 3-Axis Handheld Gimbal and Ribcage Modified in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Feiyu Feiyu G4 QD 3-Axis Handheld Gimbal and Ribcage Modified:
Specifications
  • Feiyu G4 QD 3-Axis Handheld Gimbal for GoPro and Similar Action Cameras
    Compatibility GoPro and similar cameras 1.3 to 1.8" (33 to 46 mm) in height
    Motor 2804F
    Pan Angle -160° (left) to +160° (right) (held vertically)
    -50° (left) to +50° (right) (held horizontally)
    Tilt Angle -160° to +160° (held vertically)
    Roll Angle -50° to +50°
    Panning Following Rate 3°/s to 150°/s
    Tilt Following Rate 2°/s to 75°/s
    Motion Attitude Tracking Accuracy Minimum: 0.1°
    Standard: 0.2°
    Maximum: 0.5°

    (Motor overload <2G)
    Static Attitude Tracking Accuracy Minimum: 0.01°
    Standard: 0.02°
    Maximum: 0.05°

    (Gimbal in static mode)
    Start-Up Time 2.5 seconds
    Battery Type 2 x 18350 type, 900 mAh batteries
    Voltage 8.4 VDC (6 to 17 VDC)
    Overload Current Protection 800 mA
    Dimensions 9.4 x 3.0 x 2.6" (23.9 x 7.5 x 6.5 cm)
    Weight 10.2 oz (290 g) (without camera or batteries)
    Packaging Info
    Box Dimensions (LxWxH) 11.0 x 5.6 x 3.9"
  • Back-Bone Gear Ribcage Modified GoPro HERO4 Black
    Recording
    System NTSC/PAL
    Recording Media microSD/HC/XC Up To 64 GB

    Class 10 or UHS-I rating required. See GoPro website for list of latest recommended cards.
    Video Format 4K
    H.264
    3840 x 2160p / 30 fps / 25 fps / 24 fps
    High Definition
    H.264
    2704 x 2028p / 30 fps / 25 fps
    2704 x 1520p / 60 fps / 50 fps / 48 fps
    2704 x 1520p / 30 fps / 25 fps / 24 fps
    1920 x 1440p / 80 fps / 60 fps / 50 fps
    1920 x 1440p / 48 fps / 30 fps / 25 fps
    1920 x 1440p / 24 fps
    1920 x 1080p / 120 fps / 90 fps / 80 fps
    1920 x 1080p / 60 fps / 50 fps / 48 fps
    1920 x 1080p / 30 fps / 25 fps / 24 fps
    1280 x 960p / 120 fps / 60 fps / 50 fps
    1280 x 720p / 240 fps / 120 fps / 60 fps
    1280 x 720p / 50 fps / 30 fps / 25 fps
    Standard Definition
    H.264
    848 x 480p / 240 fps
    Aspect Ratio 16:9
    4:3
    Still Image Resolution JPEG: 12 Megapixel, 4000 x 3000 (4:3)
    JPEG: 7 Megapixel, 3000 x 2250 (4:3)
    JPEG: 5 Megapixel, 2560 x 1920 (4:3)
    Channels 1.0-Channel Mono
    Audio Format AAC with AGC
    Exposure Control
    Interval Recording .5 sec
    1 sec
    2 sec
    5 sec
    10 sec
    30 sec
    60 sec
    Features
    Waterproof Depth Rating 131.0' / 40.0 m (Waterproof Housing)
    Wi-Fi Yes
    Input/Output Connectors
    Outputs 1x Mini-USB
    1x HDMI D (Micro)

    USB port also serves as mic input using separately available 3.5mm adapter. Also supports composite output using a separately available A/V cable.
    General
    System Requirements Mac
    • OS X 10.8+
    • Core 2 Duo Processor or greater
    • 4 GB RAM

    Windows
    • 7
      8
    • Core 2 Duo Processor or greater
    • 4 GB RAM
    Battery Rechargeable Lithium-Ion Battery Pack, 3.8 VDC, 1160 mAh,
    Providing up to 2 Hours per Charge
    Charging Method USB
    Dimensions (WxHxD) 2.3 x 1.6 x 1.0" / 59.0 x 41.0 x 24.5 mm without mounting rings or Tripod Mount
    2.3 x 1.9 x 1.2" / 59.0 x 48.5 x 30.0 mm with Tripod Mount and M12 ring
    2.3 x 1.9 x 1.6" / 59.0 x 48.5 x 41.0 mm with Tripod Mount and CS/C rings
    Weight 3.42 oz / 97 g Camera without Tripod Mount or CS/C Rings
    4.16 oz / 118 g Camera with C-Mount and Tripod Mount Attached
    .32 oz / 9 g CS-Ring
    .11 oz / 3 g C-Ring
    .35 oz / 10 g Tripod Mount
    Packaging Info
    Box Dimensions (LxWxH) 8.7 x 6.5 x 3.9"
The user manual for the Feiyu Feiyu G4 QD 3-Axis Handheld Gimbal and Ribcage Modified can be downloaded in .pdf format if it did not come with your new sports & action cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other users keep a unique electronic library for sports & action camerass, where you can use our link to download the user manual for the Feiyu Feiyu G4 QD 3-Axis Handheld Gimbal and Ribcage Modified.

The user manual lists all of the functions of the Feiyu Feiyu G4 QD 3-Axis Handheld Gimbal and Ribcage Modified, all the basic and advanced features and tells you how to use the sports & action cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Feiyu Feiyu G4 QD 3-Axis Handheld Gimbal and Ribcage Modified. User manuals are also available on the website under Camcorders - Sports & Action Cameras.
