User manual Feiyu G4 3-Axis Handheld Gimbal for Smartphones GM-G4-P

Operating instructions and pdf manual for use - Feiyu G4 3-Axis Handheld Gimbal for Smartphones GM-G4-P User manual, User manual Feiyu G4 3-Axis Handheld Gimbal for Smartphones GM-G4-P, Feiyu, G4, 3-Axis, Handheld, Gimbal, Smartphones, GM-G4-P,


User manual for Feiyu G4 3-Axis Handheld Gimbal for Smartphones GM-G4-P

Overall rating 4.0
Overall Rating: 4.0

80% of respondents would recommend this to a friend.
Feiyu G4 3-Axis Handheld Gimbal for Smartphones GM-G4-P
  • Manufacturer: Feiyu
  • Basic description and contents of package
  • Product classification: Professional Video - Tripods, Supports & Rigs - Gimbal Stabilizers
  • Safety instructions
  • Startup and operation of the gimbal stabilizers
  • Tips for setting up your Feiyu
  • Settings and expert assistance
  • Contact Feiyu service
  • Troubleshooting
  • Warranty information
  • Price: 199 USD
Feiyu G4 3-Axis Handheld Gimbal for Smartphones GM-G4-P Feiyu G4 3-Axis Handheld Gimbal for Smartphones GM-G4-P Feiyu G4 3-Axis Handheld Gimbal for Smartphones GM-G4-P Feiyu G4 3-Axis Handheld Gimbal for Smartphones GM-G4-P Feiyu G4 3-Axis Handheld Gimbal for Smartphones GM-G4-P
Click to enlarge image

We recommend checking out our discussion threads on the Feiyu G4 3-Axis Handheld Gimbal for Smartphones GM-G4-P, which address similar problems with connecting and setting up Gimbal Stabilizers Feiyu.



User manual for the Feiyu G4 3-Axis Handheld Gimbal for Smartphones GM-G4-P

The user manual for the Feiyu G4 3-Axis Handheld Gimbal for Smartphones GM-G4-P provides necessary instructions for the proper use of the product Professional Video - Tripods, Supports & Rigs - Gimbal Stabilizers.

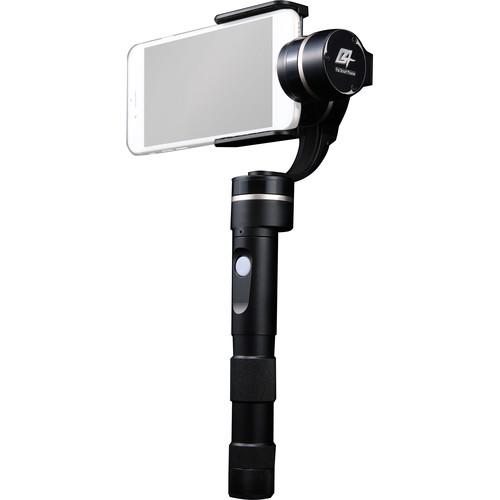

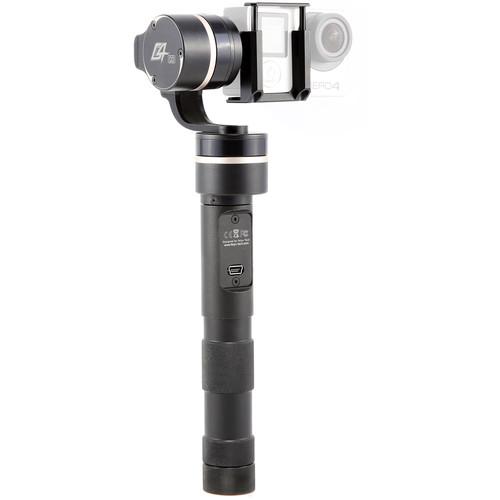

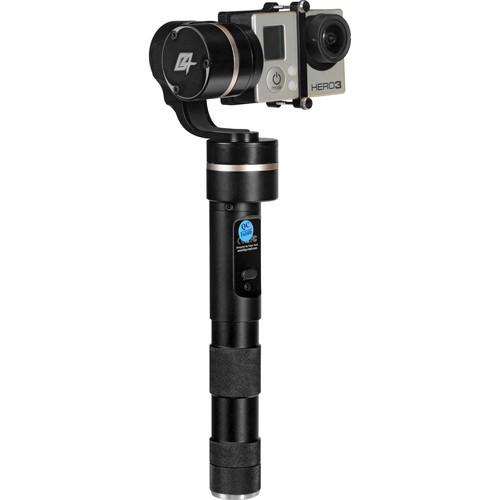

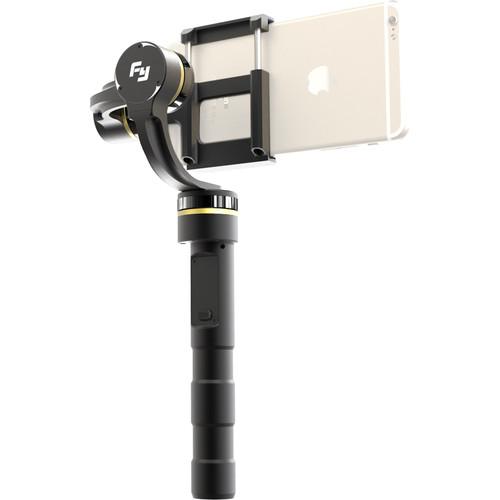

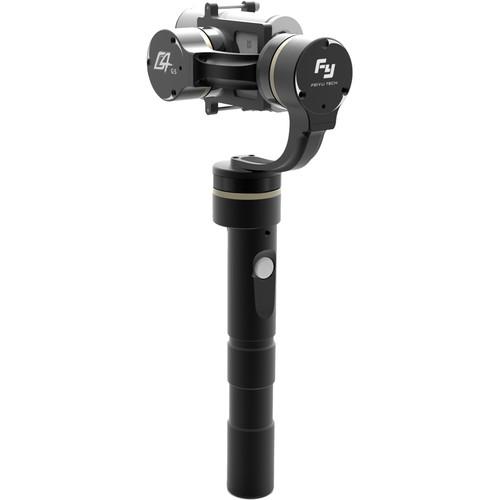

The Feiyu G4 3-Axis Handheld Gimbal allows you to capture stabilized, free-floating shots with your smartphone. It is held and operated using a single hand and features four different operating modes for increased creative possibilities. You can choose to lock the camera in place along all three axes (pan, tilt, and roll), or select modes where the camera will smoothly follow as you pan and tilt the handle. Switching between modes is done using a single LED push-button on the handle, which flashes to indicate the mode selected.

The G4 is designed for one-handed operation and features a design that hides all wires, resulting is a cleaner and sleeker look. It is powered using two rechargeable 900mAh batteries, which slot into the handle. A battery indicator light on the device lets you know when it's time to recharge the batteries using the included charger.
If you own a Feiyu gimbal stabilizers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Feiyu G4 3-Axis Handheld Gimbal for Smartphones GM-G4-P in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Feiyu G4 3-Axis Handheld Gimbal for Smartphones GM-G4-PDownload user manual for Feiyu G4 3-Axis Handheld Gimbal for Smartphones GM-G4-P
(PDF file, 2.36 MB)
Additional parameters of the Feiyu G4 3-Axis Handheld Gimbal for Smartphones GM-G4-P:
Compatibility Phones up to iPhone 6 / Galaxy S6
Motor 2804F
Pan Angle -160° (left) to +160° (right) (held vertically)
-50° (left) to +50° (right) (held horizontally)
Tilt Angle -160° to +160° (held vertically)
Roll Angle -50° to +50°
Panning Following Rate 3°/s to 150°/s
Tilt Following Rate 2°/s to 75°/s
Motion Attitude Tracking Accuracy Minimum: 0.1°
Standard: 0.2°
Maximum: 0.5°

(Motor overload <2G)
Static Attitude Tracking Accuracy Minimum: 0.01°
Standard: 0.02°
Maximum: 0.05°

(Gimbal in static mode)
Start-Up Time 2.5 seconds
Battery Type 2 x 18350 type, 900 mAh batteries
Voltage 8.4 VDC (6 to 17 VDC)
Overload Current Protection 800 mA
Dimensions 9.8 x 3.7 x 1.5" (25.0 x 9.3 x 3.8 cm)
Weight 9.3 oz (265 g) (without smartphone or batteries)
Packaging Info
Package Weight 1.65 lb
Box Dimensions (LxWxH) 13.3 x 5.9 x 2.2"
The user manual for the Feiyu G4 3-Axis Handheld Gimbal for Smartphones GM-G4-P can be downloaded in .pdf format if it did not come with your new gimbal stabilizers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Feiyu users keep a unique electronic library for Feiyu gimbal stabilizerss, where you can use our link to download the user manual for the Feiyu G4 3-Axis Handheld Gimbal for Smartphones GM-G4-P.

The user manual lists all of the functions of the Feiyu G4 3-Axis Handheld Gimbal for Smartphones GM-G4-P, all the basic and advanced features and tells you how to use the gimbal stabilizers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Feiyu service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Feiyu G4 3-Axis Handheld Gimbal for Smartphones GM-G4-P. User manuals are also available on the Feiyu website under Professional Video - Tripods, Supports & Rigs - Gimbal Stabilizers.
