User manual for the FLIR 3MP Indoor/Outdoor Bullet Network Camera with 2.8 - N237BE

The user manual for the FLIR 3MP Indoor/Outdoor Bullet Network Camera with 2.8 - N237BE provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

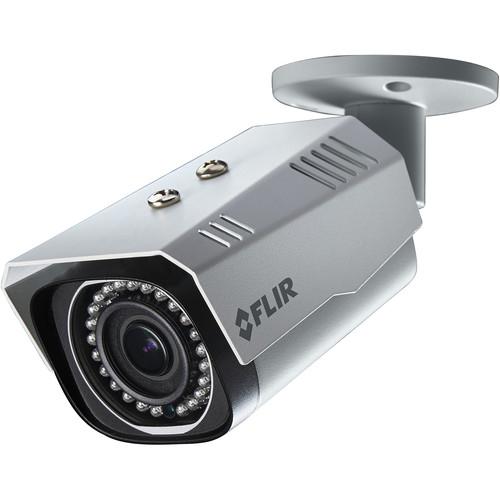

The N237BE 3MP 1080p IR Bullet IP Camera from FLIR captures 1080p video and audio footage. Featuring a 1/3" CMOS image sensor and a 2.8 to 12mm motorized varifocal lens, the camera offers 28° to 73° field of view for monitoring a large area. The camera also features backlight compensation, wide dynamic range, automatic gain control, and noise reduction. Integrated IR LEDs allow the camera to capture footage up to 90' away even in complete darkness. The IP66 and IK10-rated enclosure allows installation of this camera outdoors even in challenging weather conditions.
If you own a FLIR wired ip cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the FLIR 3MP Indoor/Outdoor Bullet Network Camera with 2.8 - N237BE in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the FLIR 3MP Indoor/Outdoor Bullet Network Camera with 2.8 - N237BE:
Specifications
Camera
Imaging Device 3 MP, 1/3" progressive scan
Effective Pixels (H x V) 2048 x 1536
Image Type CMOS
Day/Night Auto / Color / B&W
Minimum Illumination 0.01 lux @ 40 IRE F1.8 (B&W)
0.1 lux @ 40 IRE F1.8 (Color)
S/N Ratio > 50 dB
Field of View H: 28° to 73°
IR Illumination 90' (27 m), 850 nm
Video Output RJ45
Electronic Shutter Range: 1/3(4) to 1/10,000 sec
Optical
Lens Type Motorized varifocal
Mount Type Board type
Focal Length 2.8 to 12 mm
Aperture f/1.4
Optical Zoom 3.2x
Focus Auto
Iris Control Electronic
Video
Video Compression H.264 / MJPEG
Video Streams H.264 & MJPEG dual stream encoding
Resolution 3 MP (2052 x 1536) / 1080p (1920 x 1080) / 720p (1280 x 720) / D1 (704 x 576 / 704 x 480) / CIF (352 x 288 / 352 x 240)
Aspect Ratio 4:3
Frame Rates 3 MP @ 20 fps
1080p / 720p @ 25/30 fps
Bit Rate Control: CBR / VBR with cap
Selection: H.264 40K to 8192 kb/s; MJPEG 40K to 16384 kb/s
Wide Dynamic Range Digital WDR
Backlight Compensation BLC / HLC
White Balance Auto / Manual
Gain Control Auto / Manual
Noise Reduction 3D
IR Yes, user adjustable
Digital Zoom 3X
Mirroring Horizontal mirror / Vertical flip
Video Overlay Time / Date / Camera / Custom
Privacy Up to 4 areas
Menu Languages English
Network
Protocols IPv4 / IPv6, HTTP, HTTPS, SSL, TCP / IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
ONVIF Conformance Profile S
Video RTSP: Standard RFC2326, Support QuickTime/VLC
Users Up to 20 users
Electrical
Ports RJ45 (10 / 100 Base-T)
Power Input 12 VDC
PoE 802.3af
Power Consumption 5 W maximum
Current Consumption 380 mA maximum
Environmental
Operating/Storage Temperature -22 to 140°F (-30 to 60°C)
Humidity Operating/Storage: Less than 95% RH
Cold Start -22°F (-30°C)
Ingress Protection IP66
Vandal Resistance IK10 rated
Mechanical
Dimensions (H x W x D) 3.1 x 8.5 x 3.6" (78.7 x 215.9 x 91.4 mm)
Weight 1.7 lb (0.7 kg)
Packaging Info
Package Weight 2.2 lb
Box Dimensions (LxWxH) 11.1 x 5.3 x 4.4"
