User manual FLIR Vue Pro Thermal Imaging Camera for Commercial 436001700S

Operating instructions and pdf manual for use - FLIR Vue Pro Thermal Imaging Camera for Commercial 436001700S User manual, User manual FLIR Vue Pro Thermal Imaging Camera for Commercial 436001700S, FLIR, Vue, Pro, Thermal, Imaging, Camera, Commerci


User manual for FLIR Vue Pro Thermal Imaging Camera for Commercial 436001700S

FLIR Vue Pro Thermal Imaging Camera for Commercial 436001700S
  • Manufacturer: FLIR
  • Basic description and contents of package
  • Product classification: Camcorders - Aerial Imaging & Drones - Misc. Aerial Accessories
  • Safety instructions
  • Startup and operation of the misc. aerial accessories
  • Tips for setting up your FLIR
  • Settings and expert assistance
  • Contact FLIR service
  • Troubleshooting
  • Warranty information
FLIR Vue Pro Thermal Imaging Camera for Commercial 436001700S FLIR Vue Pro Thermal Imaging Camera for Commercial 436001700S FLIR Vue Pro Thermal Imaging Camera for Commercial 436001700S FLIR Vue Pro Thermal Imaging Camera for Commercial 436001700S FLIR Vue Pro Thermal Imaging Camera for Commercial 436001700S FLIR Vue Pro Thermal Imaging Camera for Commercial 436001700S FLIR Vue Pro Thermal Imaging Camera for Commercial 436001700S FLIR Vue Pro Thermal Imaging Camera for Commercial 436001700S FLIR Vue Pro Thermal Imaging Camera for Commercial 436001700S
Click to enlarge image

We recommend checking out our discussion threads on the FLIR Vue Pro Thermal Imaging Camera for Commercial 436001700S, which address similar problems with connecting and setting up Misc. Aerial Accessories FLIR.



User manual for the FLIR Vue Pro Thermal Imaging Camera for Commercial 436001700S

The user manual for the FLIR Vue Pro Thermal Imaging Camera for Commercial 436001700S provides necessary instructions for the proper use of the product Camcorders - Aerial Imaging & Drones - Misc. Aerial Accessories.

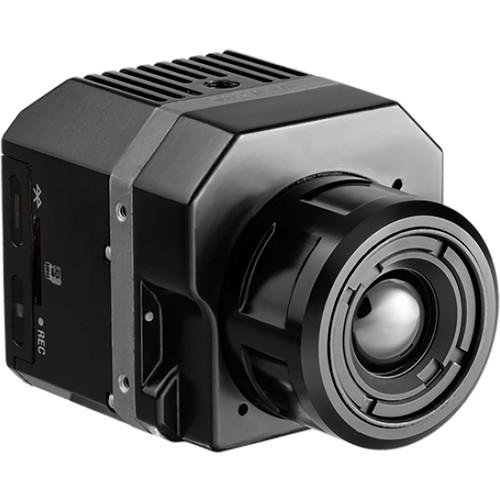

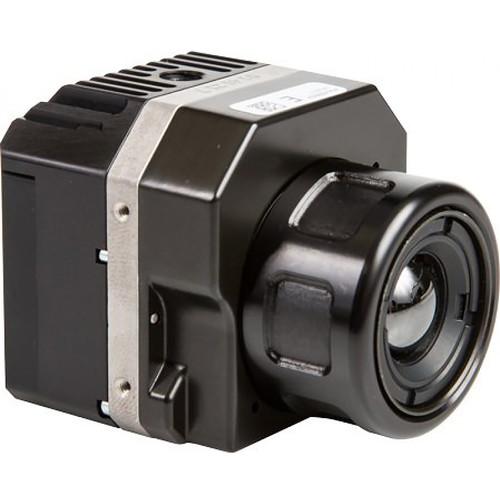

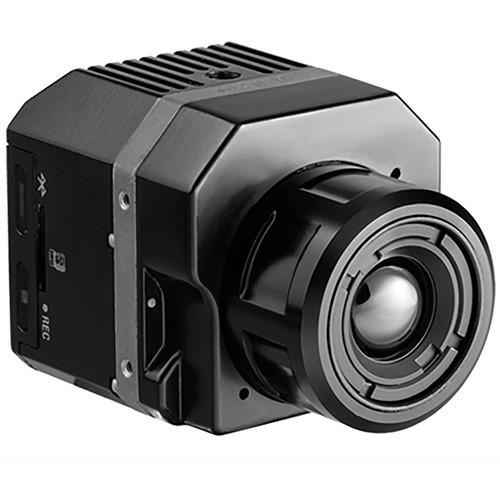

FLIR Vue Pro is a compact thermal-imaging camera that features internal recording capability for use on small commercial UAS (unmanned aerial systems). It includes a 13mm lens and captures 640 x 512 resolution images at 7.5 Hz in NTSC mode. The camera is designed for plug-n-play operation and features Wi-Fi and Bluetooth to enable access to advanced settings as well as remote camera control in the field. There is also a desktop GUI you can use when a computer is available. A PWM port allows the camera to integrate with the host UAV's flight control system. It is then possible to operate the camera via the transmitter. An all-purpose mini-USB port enables data transfer from the card, powering the camera, and video output. Accepting 5 VDC power, Vue Pro can be adapted to power from the main flight battery with a suitable BEC installed.
If you own a FLIR misc. aerial accessories and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the FLIR Vue Pro Thermal Imaging Camera for Commercial 436001700S in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the FLIR Vue Pro Thermal Imaging Camera for Commercial 436001700S:
Specifications
Camera
Imager Uncooled VOx Microbolometer
Spectral Band 7.5 to 13.5 μm
Resolution 640 x 512
Frame Rate NTSC: 7.5 Hz
PAL: 8.3 Hz
Lens Focal Length: 13mm
Angle of View: 45 x 37°
Minimum Focus Distance: 3" / 7.6 cm
Hyperfocal Distance: 14.4' / 4.4 m
Minimum Focus Depth of Field: 7.2' / 2.2 m
Image Processing Digital Detail Enhancement: Yes (adjustable via GUI)
Image Inversion: Yes (adjustable via GUI)
Polarity Control (black hot/whitehot): Yes (adjustable via GUI)
Color Palettes: Yes (adjustable via GUI)
Recording Media microSD
File Formats Video: MJPEG, H.264
General
Connectivity 1 x mini-USB for power, data I/O, and video out
1 x PWM control port
Bluetooth LE
Wi-Fi
Mounting Holes Two M2x0.4 on each of two sides & bottom
One 1/4"-20 threaded hole on top
Power Requirements 4.0 to 6.0 VDC
Operating Temperature -4 to 122°F / -20 to 50°C
Storage Temperature -67 to 203°F / -55 to 95°C
Operating Altitude Up to 40,000' / 12,192 m
Dimensions 2.26 x 1.75" / 57.4 x 44.4 mm (including lens)
Weight 3.25 to 4 oz / 92.1 to 113.4 g (configuration dependent)
The user manual for the FLIR Vue Pro Thermal Imaging Camera for Commercial 436001700S can be downloaded in .pdf format if it did not come with your new misc. aerial accessories, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other FLIR users keep a unique electronic library for FLIR misc. aerial accessoriess, where you can use our link to download the user manual for the FLIR Vue Pro Thermal Imaging Camera for Commercial 436001700S.

The user manual lists all of the functions of the FLIR Vue Pro Thermal Imaging Camera for Commercial 436001700S, all the basic and advanced features and tells you how to use the misc. aerial accessories. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from FLIR service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the FLIR Vue Pro Thermal Imaging Camera for Commercial 436001700S. User manuals are also available on the FLIR website under Camcorders - Aerial Imaging & Drones - Misc. Aerial Accessories.
