User manual for the FLIR Vue Thermal Imaging Camera for Commercial sUAS 436000400
The user manual for the FLIR Vue Thermal Imaging Camera for Commercial sUAS 436000400 provides
necessary instructions for the proper use of the product Camcorders - Aerial Imaging & Drones - Misc. Aerial Accessories.

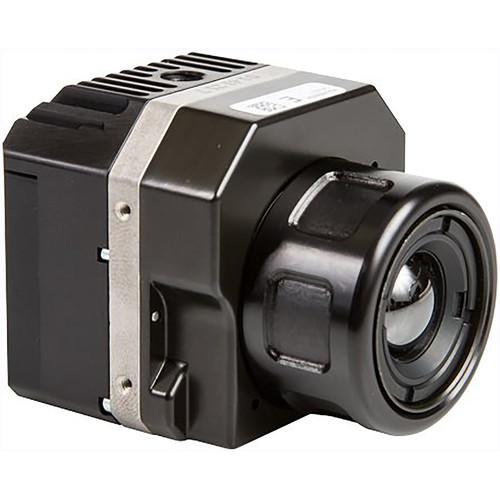

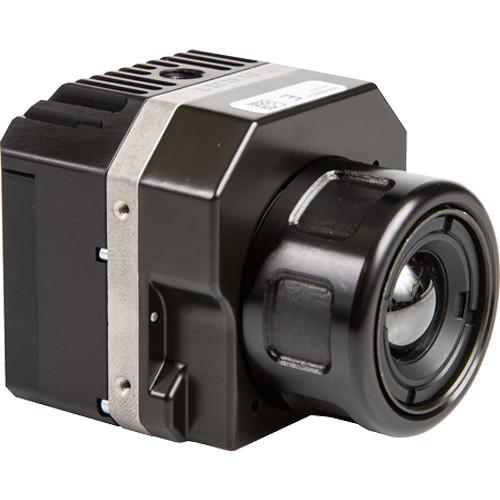

FLIR Vue is a compact thermal imaging camera for use on small commercial UAS (unmanned aerial systems). The camera features a 9mm lens and captures 336 x 256 resolution images at 30 Hz in NTSC mode. A mini-USB form factor port does double duty supplying power and outputting NTSC or PAL video. Accepting 5 VDC power, it can be adapted to power from the main flight battery with a suitable BEC installed. The camera works plug-n-play, or can be connected to a computer to access advanced settings using the Camera Controller GUI.
If you own a FLIR misc. aerial accessories and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the FLIR Vue Thermal Imaging Camera for Commercial sUAS 436000400 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the FLIR Vue Thermal Imaging Camera for Commercial sUAS 436000400:
Focal Length: 9mm Angle of View: 35 x 27° Minimum Focus Distance: 1.3" / 3.2 cm Hyperfocal Distance: 6.9' / 2.1 m Minimum Focus Depth of Field: 3.6' / 1.1 m
Image Processing
Digital Detail Enhancement: Yes (adjustable via GUI) Image Inversion: Yes (adjustable via GUI) Polarity Control (black hot/whitehot): Yes (adjustable via GUI) Color Palettes: Yes (adjustable via GUI)
Two M2x0.4 on each of two sides & bottom One 1/4"-20 threaded hole on top
Power Requirements
4.0 to 6.0 VDC
Operating Temperature
-4 to 122°F / -20 to 50°C
Storage Temperature
-67 to 203°F / -55 to 95°C
Operating Altitude
Up to 40,000' / 12,192 m
Dimensions
2.26 x 1.75" / 57.4 x 44.4 mm (including lens)
Weight
3.25 to 4 oz / 92.1 to 113.4 g (configuration dependent)
The user manual for the FLIR Vue Thermal Imaging Camera for Commercial sUAS 436000400 can be downloaded in .pdf
format if it did not come with your new misc. aerial accessories, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other FLIR users keep a unique electronic library
for FLIR misc. aerial accessoriess,
where you can use our link to download the user manual for the FLIR Vue Thermal Imaging Camera for Commercial sUAS 436000400.
The user manual lists all of the functions of the FLIR Vue Thermal Imaging Camera for Commercial sUAS 436000400,
all the basic and advanced features and tells you how to use the misc. aerial accessories.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from FLIR service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the FLIR Vue Thermal Imaging Camera for Commercial sUAS 436000400. User manuals are also
available on the FLIR website under Camcorders - Aerial Imaging & Drones - Misc. Aerial Accessories.
