User manual Fluid Audio F8S - 200W 8" Active Studio Reference FA-F8S

Operating instructions and pdf manual for use - Fluid Audio F8S - 200W 8" Active Studio Reference FA-F8S User manual, User manual Fluid Audio F8S - 200W 8" Active Studio Reference FA-F8S, Fluid, Audio, F8S, 200W, 8, Active, Studio, Reference, FA-F8


User manual for Fluid Audio F8S - 200W 8" Active Studio Reference FA-F8S

Fluid Audio F8S - 200W 8
  • Manufacturer: Fluid Audio
  • Basic description and contents of package
  • Product classification: Pro Audio - Recording - Studio Monitors
  • Safety instructions
  • Startup and operation of the studio monitors
  • Tips for setting up your Fluid Audio
  • Settings and expert assistance
  • Contact Fluid Audio service
  • Troubleshooting
  • Warranty information
  • Price: 360 USD
Fluid Audio F8S - 200W 8 Fluid Audio F8S - 200W 8
Click to enlarge image

We recommend checking out our discussion threads on the Fluid Audio F8S - 200W 8" Active Studio Reference FA-F8S, which address similar problems with connecting and setting up Studio Monitors Fluid Audio.



User manual for the Fluid Audio F8S - 200W 8" Active Studio Reference FA-F8S

The user manual for the Fluid Audio F8S - 200W 8" Active Studio Reference FA-F8S provides necessary instructions for the proper use of the product Pro Audio - Recording - Studio Monitors.

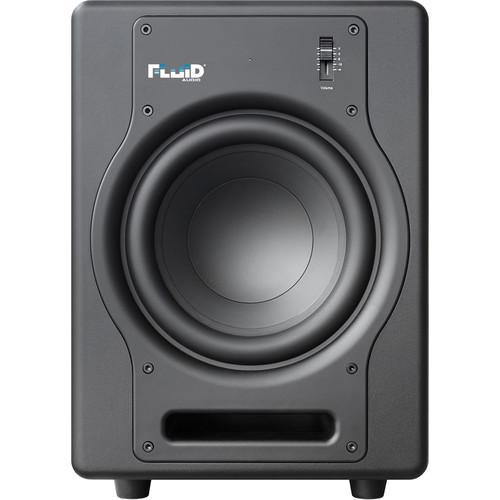

The black F8S from Fluid Audio is an active studio reference subwoofer well suited for project and professional studio applications, as well as home entertainment and gaming systems. The 200W Class-D amplifier powers the single 8" driver, while the optimized front-loaded slot port directs the low frequency energy towards the listener and simplifies placement. The subwoofer offers a frequency response of 30 to 200 Hz for rich deep bass. A variable low pass filter allows you to dial in the perfect crossover setting, while the variable phase control (0-180°) allows you to fine tune the phase for optimal matching to your full range monitors. The included foot switch allows you to enable/disable the subwoofer to quickly check your mixes without the sub woofer. Additionally, there is a switch for flat and punchy settings, with the latter offering a boost for dance or other mid-bass heavy music.
If you own a Fluid Audio studio monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Fluid Audio F8S - 200W 8" Active Studio Reference FA-F8S in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Fluid Audio F8S - 200W 8Download user manual for Fluid Audio F8S - 200W 8" Active Studio Reference FA-F8S
(PDF file, 5.33 MB)
Additional parameters of the Fluid Audio F8S - 200W 8" Active Studio Reference FA-F8S:
Specifications
Type Active Studio Reference Subwoofer
Driver Size 8.0" / 20.3 cm composite paper cone with high temperature voice coil and damped rubber surround
Magnetically shielded
Frequency Response 30 to 200 Hz
Amplifier Power 200 W
Crossover Frequencies Variable Low Pass Filter: 50 to 200 Hz
High Pass Filter: 80 Hz (with foot switch) for satellite connections
Signal to Noise Ratio (SNR) >100 dB typical, A-weighted
Input Connectors 1x XLR balanced input
1x RCA unbalanced input
1x TRS balanced/unbalanced input
Polarity Positive signal at + input produces outward LF cone displacement
Input Sensitivity 85 mV pink noise produces 97 dBA output at 3.3' / 1 m with volume control at maximum
Impedance Balanced: 20 kOhms
Unbalanced: 10 kOhms
Protection RF interference
Output current limiting
Over temperature
Turn-on/off transient
Subsonic filter
External mains fuse
Cabinet Vinyl-laminated, high acoustic efficient MDF
Power Requirements 100 - 120 VAC, 60 Hz
Dimensions (H x W x D) 13.4 x 10.0 x 10.5" / 34.0 x 25.4 x 26.7 cm
Weight 17.4 lb / 7.9 kg
Packaging Info
Package Weight 21.2 lb
Box Dimensions (LxWxH) 18.0 x 13.0 x 13.0"
Fluid Audio F5 unboxing
FLUID AUDIO FX8 unboxing
The user manual for the Fluid Audio F8S - 200W 8" Active Studio Reference FA-F8S can be downloaded in .pdf format if it did not come with your new studio monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Fluid Audio users keep a unique electronic library for Fluid Audio studio monitorss, where you can use our link to download the user manual for the Fluid Audio F8S - 200W 8" Active Studio Reference FA-F8S.

The user manual lists all of the functions of the Fluid Audio F8S - 200W 8" Active Studio Reference FA-F8S, all the basic and advanced features and tells you how to use the studio monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Fluid Audio service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Fluid Audio F8S - 200W 8" Active Studio Reference FA-F8S. User manuals are also available on the Fluid Audio website under Pro Audio - Recording - Studio Monitors.
