User manual for the Focal SM9 11" 600W 3-Way Active Studio Monitor FOPRO-SM9R

The user manual for the Focal SM9 11" 600W 3-Way Active Studio Monitor FOPRO-SM9R provides necessary instructions for the proper use of the product Pro Audio - Recording - Studio Monitors.

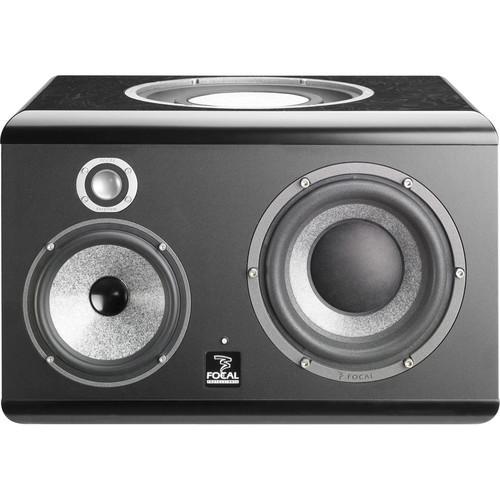

The SM9 from Focal Professional is a professional-quality active studio monitor speaker that offers accurate sound quality and terrific flexibility for a variety of monitoring applications. The speaker features an 11" passive radiator, an 8" subwoofer, a 6.5" midrange driver, and a 1" pure Beryllium tweeter. The radiator, subwoofer, and midrange driver each use Focal's "W" composite sandwich cone technology, which provides a perfect blend of mass, rigidity, and damping for excellent neutrality and an optimal frequency response. The tweeter has an inverted dome design to produce a high output without requiring high output or increasing directivity, ensuring clear treble with a wide sweet spot.

The speaker can be used in 3-way mode, with the 11" driver for bass, the 8" and 6.5" drivers for midrange, and the 1" tweeter for treble. It can also be used in 2-way mode with just the 6.5" driver and the tweeter. This allows you to choose the optimal monitoring scenario for your particular equipment and application. Switching between modes is achieved by simply turning on the FOCUS mode from the side panel. Low-distortion Class-AB power stages provide a combined amplifier power of 600W to ensure powerful, transparent performance with no distortion.

The rear panel offers an electronically-balanced XLR input with an adjustable sensitivity. It also has controls for high-pass crossover, high and low frequency shelving, and EQ controls, allowing you to precisely tune the monitor's response and performance to match your workspace and application. The cabinet is internally braced and has a black finish to provide lasting durability and style.
If you own a Focal studio monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Focal SM9 11" 600W 3-Way Active Studio Monitor FOPRO-SM9R in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Focal SM9 11Download user manual for Focal SM9 11" 600W 3-Way Active Studio Monitor FOPRO-SM9R
(PDF file, 1.93 MB)
Additional parameters of the Focal SM9 11" 600W 3-Way Active Studio Monitor FOPRO-SM9R:
Low Frequency Driver 11" (280mm) Focal "W" Composite Sandwich Cone Piston, Extra-Wide Inverted Surround Radiator
Mid Frequency Driver 8" (203mm) Focal "W" Composite Sandwich Cone Driver
6.5" (165mm) Focal "W" Composite Sandwich Cone Driver
High Frequency Driver 1" (25mm) Pure Beryllium Inverted Dome Tweeter
Frequency Response 3-Way: 30Hz - 40kHz ±3dB
2-Way: 90Hz - 20kHz ±3dB
Amplifier LF: 400W Class-AB
MF: 100W Class-AB
HF: 100W Class-AB
Max Input Sound Level (SPL) 3-Way: 116dB
2-Way: 106dB
Connectors 1 x AC Power Input
1 x Electronically-Balanced XLR Input
Input Sensitivity +4dBu or -10dBV, Adjustable
Input Impedance 10 kOhms
Controls 1 x Input Sensitivity Selector
1 x High-Pass Crossover Control
1 x LF Shelving Control
1 x HF Shelving Control
1 x Low EQ Control
1 x Low-Mid EQ Control
1 x Mid EQ Control
1 x Standby/On Switch
1 x Direct Switch
1 x Focus Switch
Indicators LEDs for Power, Clip, and Default
Cabinet 0.88" (22mm) and 1.2" (30mm) Internally-Braced Panels
Natural Black Veneering on Top and Bottom Panels, Black Body
Power 115V, 6.3A
230V, 3.15A
Dimensions (HxWxD) 12.8 x 19.6 x 15.6" (320 x 490 x 390mm)
Weight 77 lbs (35kg)
Packaging Info
Package Weight 80.8 lb
Box Dimensions (LxWxH) 24.0 x 21.0 x 18.3"
