User manual for the Focal TRIO6 Be 3-Way Near-Field Monitor (Single)
The user manual for the Focal TRIO6 Be 3-Way Near-Field Monitor (Single) provides
necessary instructions for the proper use of the product Pro Audio - Recording - Studio Monitors.

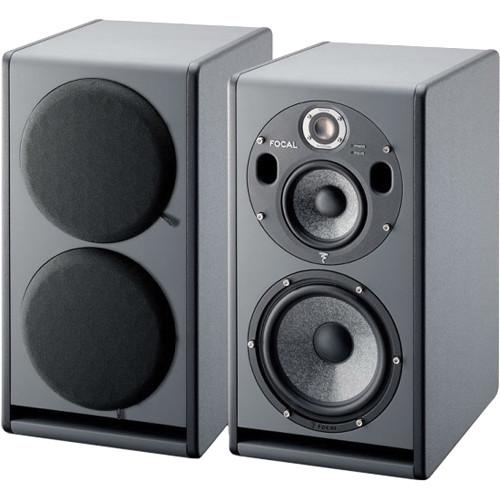

The Focal TRIO6 Be 3-Way Near-Field Monitor innovates upon the concept of a professional near-field studio monitor by combining the company's famous 1" inverted Beryllium dome tweeter, a dual bass reflex ported 5" composite sandwich cone woofer in an isolated chamber, and a ported 8" composite sandwich cone subwoofer in a selectable 3-way or 2-way configuration, when set to "FOCUS" mode. The "FOCUS" mode can be activated by connecting a standard 1/4" foot pedal and is useful for when you want focus your attention on the mid and high frequencies of your mix. The drivers are contained within a 22mm MDF cabinet.
To allow both vertical and horizontal orientations of the speaker box, the tweeter and woofer are mounted in a rotating baffle which is capable of rotating 360 degrees in 90 degree increments. Using 450W of total power through a combination of one Class A/B (tweeter) and two Class G amplifiers (woofer and subwoofer), the monitors can deliver a frequency response of 35 to 40,000 Hz (in three-way mode) at up to 115 dB peak output with low, high, and 160 Hz notch filter adjustment controls.
If you own a Focal studio monitors and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Focal TRIO6 Be 3-Way Near-Field Monitor (Single) in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
3-Way Mode: 35 to 40,000 Hz ±3 dB 2-Way Mode (Focus): 90 to 20,000 Hz ±3 dB
SPL
3-Way Mode: 115 dB SPL (peak at 1 m) 2-Way Mode (Focus): 105 dB SPL (peak at 1 m)
Amplifier (Power)
Bass: 200 W, class G Midrange: 150 W, class G Treble: 100 W, class AB
Transducer
Subwoofer: 8.0" (20.3 cm) Focal driver with W composite sandwich cone (8W64701) Medium: 5.0" (12.7 cm) Focal driver with W composite sandwich cone (5W04701) Tweeter: 1.0" (2.54 cm) Focal pure Beryllium inverted dome tweeter (TB872)
Power Supply
Mains voltage: 230 V (class T fuse 1.6 A fuse rating) to 115 V (class T fuse 3.5 A fuse rating) Wiring: detachable IEC power cable
Controls
Rear Panel Input Sensitivity Selector: (+4 dBu/-10 dBV) Low Frequency Shelving: (±3 dB from 35 to 250 Hz) High Frequency Shelving: (±3 dB from 4500 to 40,000 Hz) EQ Low-Mid Frequencies: (± 3 dB at 160 Hz, Q factor = 1) FOCUS input/ FOCUS output
The user manual for the Focal TRIO6 Be 3-Way Near-Field Monitor (Single) can be downloaded in .pdf
format if it did not come with your new studio monitors, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Focal users keep a unique electronic library
for Focal studio monitorss,
where you can use our link to download the user manual for the Focal TRIO6 Be 3-Way Near-Field Monitor (Single).
The user manual lists all of the functions of the Focal TRIO6 Be 3-Way Near-Field Monitor (Single),
all the basic and advanced features and tells you how to use the studio monitors.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Focal service.
