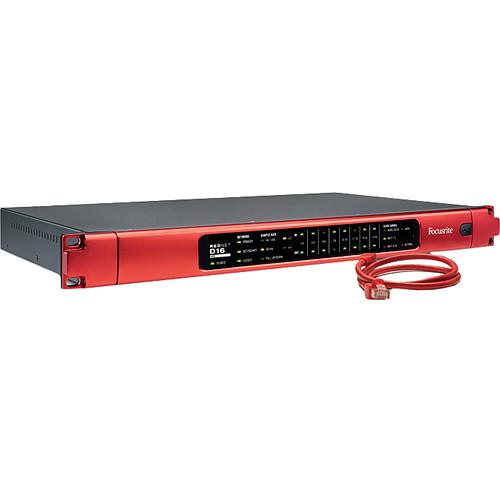

The RedNet D16 AES from Focusrite is an interface that provides sixteen-channel AES3 input and output for Dante audio networks. Perfect for bridging between digital consoles, power amplifiers or any other AES3 equipped audio equipment and a Dante network, the interface has a Sample Rate Convertor (SRC) on each input pair, allowing instant operation with any AES3 source. SRC allows external equipment to run at any sample rate, irrespective of the sample rate or clocking of the Dante audio network.
Dual rear-panel Ethernet connectors (primary and secondary connectors) provide maximum network reliability with seamless switchover to a standby network in the unlikely event of a network failure. The ports can alternatively be used to daisy-chain additional units. AES input/output is via 25-pin D-Sub connectors, and a rear panel XLR input connector can either be used as a DARS input or as a traditional AES3 audio input. S/PDIF input and outputs are available via RCA connectors, ideal for connecting CD players or solid-state recorders.
Wordclock I/O on BNC connectors allows synchronization of the Dante network to house clock, or syncing external equipment to the Dante network, while RedNet Control software allows full routing and control from the audio computer system via a software control panel with no hardware patching required. The 1U compact design allows maximum functionality in minimum rack space, and includes an internal, universal power supply.
If you own a Focusrite audio interfaces & systems and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Focusrite RedNet D16 AES - Dante Equipped REDNET D16 AES in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Focusrite RedNet D16 AES - Dante Equipped REDNET D16 AES:
Specifications
Inputs
AES/EBU 2 x 25-pin D-Sub for 16 channels, wired to AES 59, with switchable SRC by input pair (combined I/O) Tascam digital pin configuration 1 x XLR3-F (replaces channels 1 and 2 from DB25) S/PDIF 1 x RCA coaxial for 2 channels (replaces channels 3 and 4 from DB25) Input Format Channel status ignored - assumed to be 24-bit, 2-channel audio
Sample Rate Converter
Input Sample Rate Range: 32 to 216 kHz Gain Error: -0.3 dB Dynamic Range: >138 dB (-60 dBFS method) THD+N: <-130 dB (0.00003%), 0 dBFS input
Outputs
AES/EBU 2 x 25-pin D-Sub for 16 channels, wired to AES 59 (combined I/O) Tascam digital pin configuration 1 x XLR3-M (duplicates channels 1 and 2) S/PDIF: 1 x RCA coaxial for 2 channels, synchronous with unit sample rate (output can duplicate any adjacent odd/even pair of channels 1 through 16) Output Format AES3
Network Modes
Redundant Allows unit to connect to two independent networks Switched Connects both ports to integrated network switch allowing daisy-chaining of devices
Digital Performance
Supported Sample Rates: 44.1, 48, 88.2, 96, 176.4 and 192 kHz (-4, -0.1, +0.1, +4.167%) at 24-bit Clock Sources: Internal or from network master device Local Clock Sources: Internal, DARS, Wordclock, Input 1 and 2, Input 9 and 10 External Wordclock Range: Nominal sample rate +/-7.5%
Front Panel Indicators
Power Indicator Primary Network Secondary Network Locked Unit Sample Rate Pull/Up Down Signal Indicators Clock Source Indicators
The user manual for the Focusrite RedNet D16 AES - Dante Equipped REDNET D16 AES can be downloaded in .pdf
