User manual for the For.A HVS-390HS 2 M/E Video Switcher HVS-390HS 2M/E TYPE A

The user manual for the For.A HVS-390HS 2 M/E Video Switcher HVS-390HS 2M/E TYPE A provides necessary instructions for the proper use of the product Professional Video - Studio & EFP Equipment - Production Switchers.

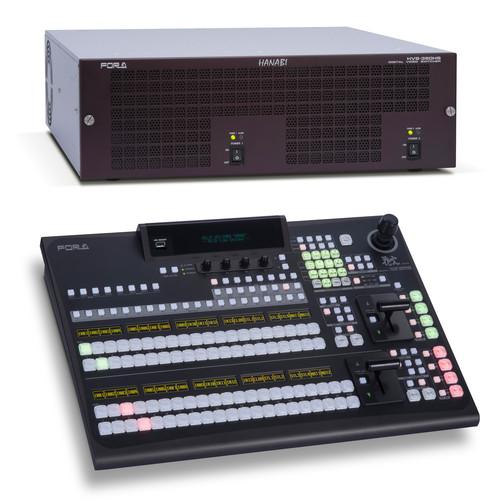

The For.A HVS-390HS 2 M/E Video Switcher with 2 M/E 20-Button Control Panel is a multi-format video switcher paired with a 2-line, 20-button control panel, both part of the HVS-390 system. The switcher features 16 SDI inputs, 8 SDI outputs, and 1 HDMI output. The SDIs support up to 1.5 Gbps and up to 1080/59.94i/50i. The inputs all have frame synchronizers on them. Signal processing is at 4:2:2. A large fan and an efficient exhaust process guarantee silent operation.

By means of optional input/output option boards, the SDI inputs can be increased to 24 and the outputs to 13, all also supporting 1.5 Gbps. Of the existing inputs, 13 through 16 can be used to resize SD signals to HD. The addition of optional boards will allow resizing on more inputs and will also allow resizing computer signals. 8 keyers come standard and each includes a bus and a luminance key and an independent 2.5D DVE. Up to 100 events can be stored, and each can be recalled at the push of a button. Many more features come standard, and many more can be upgraded to, as described below.
If you own a For.A production switchers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the For.A HVS-390HS 2 M/E Video Switcher HVS-390HS 2M/E TYPE A in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the For.A HVS-390HS 2 M/E Video Switcher HVS-390HS 2M/E TYPE A:
Specifications
    Switcher
    Video Formats 1080/59.94i, 1080/50i, 1080/29.97PsF, 1080/25PsF, 1080/24PsF, 1080/23.98PsF, 720/59.94p, 720/50p, 525/60 (NTSC), 625/50 (PAL)
    Processing 4:2:2 digital component
    Quantization HD/SD-SDI: 10-bit
    Video Input 16x HD/SD-SDI, 1.5 Gbps / 270 Mbps, 75Ω, frame synchronizer on each input
    Video Output 8x HD/SD-SDI, 1.5 Gbps / 270 Mbps, 75Ω (2x PGM, 6x AUX -- crossfade switching available on each AUX)
    1x HDMI
    Genlock Input 1x BNC
    BB: NTSC 0.429 Vp-p/PAL 0.45 Vp-p
    Tri-level sync: 0.6 Vp-p, 75Ω
    System Phase Adjust Horizontal: -1/2H to +1/2H
    I/O Delay HD: 1 H, SD: 1.7 H (minimum delay)
    1 to 1.5 frames + minimum delay (when FS or up-resize engine used)
    2 to 2.5 frames + minimum delay (when FS or up-resize engine plus DVE used)
    3 to 3.5 frames + minimum delay (when FS or up-resize engine plus output resize engine and DVE used)
    Interfaces 4x RS-422 on 9-pin D-sub female (inch screw)
    1x Editor on 9-pin D-sub female (inch screw)
    1x GPI input 15-pin D-sub female, 10 inputs (inch screw)
    1x Tally output 25-pin D-sub female, 20 outputs (inch screw)
    1x ARCnet loop-through on BNC, 75Ω (terminate with 75Ω terminator, if unused)
    1x Ethernet, 100BASE-TX/1000BASE-T, on RJ-45
    Operating Temperature 32 to 104°F (0 to 40ºC)
    Operating Humidity 30 to 90% (no condensation)
    Power 100 V AC to 240 V AC ±10% 50/60Hz
    Power Consumption Max. 510 VA
    Dimensions 17 x 17.7 x 5.2" (43 x 45 x 13.2 cm)
    Weight 42.3 lb (19.2 kg)
    Control Panel
    Power Consumption Max. 43 W
    Dimensions 22.7 x 15.7 x 5.2" (57.6 x 40 x 13.2 cm)
    Weight 17 lb (7.7 kg)
    The user manual for the For.A HVS-390HS 2 M/E Video Switcher HVS-390HS 2M/E TYPE A can be downloaded in .pdf format if it did not come with your new production switchers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other For.A users keep a unique electronic library for For.A production switcherss, where you can use our link to download the user manual for the For.A HVS-390HS 2 M/E Video Switcher HVS-390HS 2M/E TYPE A.

    The user manual lists all of the functions of the For.A HVS-390HS 2 M/E Video Switcher HVS-390HS 2M/E TYPE A, all the basic and advanced features and tells you how to use the production switchers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from For.A service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the For.A HVS-390HS 2 M/E Video Switcher HVS-390HS 2M/E TYPE A. User manuals are also available on the For.A website under Professional Video - Studio & EFP Equipment - Production Switchers.
