User manual Fostex DC-R302 3-Channel Audio Mixer and Stereo Recorder DC-R302

Operating instructions and pdf manual for use - Fostex DC-R302 3-Channel Audio Mixer and Stereo Recorder DC-R302 User manual, User manual Fostex DC-R302 3-Channel Audio Mixer and Stereo Recorder DC-R302, Fostex, DC-R302, 3-Channel, Audio, Mixer, St


User manual for Fostex DC-R302 3-Channel Audio Mixer and Stereo Recorder DC-R302

Overall rating 4.0
Overall Rating: 4.0

80% of respondents would recommend this to a friend.

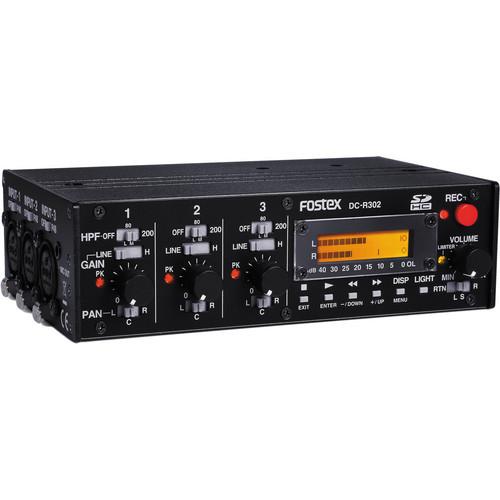

Fostex DC-R302 3-Channel Audio Mixer and Stereo Recorder DC-R302
  • Manufacturer: Fostex
  • Basic description and contents of package
  • Product classification: Pro Audio - Recording - Portable Digital Recorders
  • Safety instructions
  • Startup and operation of the portable digital recorders
  • Tips for setting up your Fostex
  • Settings and expert assistance
  • Contact Fostex service
  • Troubleshooting
  • Warranty information
  • Price: 800 USD
We recommend checking out our discussion threads on the Fostex DC-R302 3-Channel Audio Mixer and Stereo Recorder DC-R302, which address similar problems with connecting and setting up Portable Digital Recorders Fostex.



User manual for the Fostex DC-R302 3-Channel Audio Mixer and Stereo Recorder DC-R302

The user manual for the Fostex DC-R302 3-Channel Audio Mixer and Stereo Recorder DC-R302 provides necessary instructions for the proper use of the product Pro Audio - Recording - Portable Digital Recorders.

The DC-R302 3-Channel Audio Mixer and Stereo Recorder by Fostex is a professional, portable audio recorder designed specifically for use with DSLR cameras. It features three XLR mic preamps each with its own limiter, high pass filter, volume control and 48V phantom power. With its onboard line-mixer and rugged, extruded aluminum chassis the DC-R302 is an ideal solution for field recording. It also helps simplify the capture process by allowing you to operate the recorder and camera simultaneously.

Not only does the DC-R302 capture and sync high-quality 24bit/96kHz audio with your DSLR's video footage, it also offers metering capabilities and a built-in headphone monitoring system. The DC-R302 captures directly to SDHC cards and transfers both audio and data via USB.

The DC-R302 includes a DSLR mounting bracket, allowing a camera to mount its top panel. 3 screw holes on the bottom panel allow the DC-R302 to be mounted on a tripod.
If you own a Fostex portable digital recorders and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Fostex DC-R302 3-Channel Audio Mixer and Stereo Recorder DC-R302 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Fostex DC-R302 3-Channel Audio Mixer and Stereo Recorder DC-R302Download user manual for Fostex DC-R302 3-Channel Audio Mixer and Stereo Recorder DC-R302
(PDF file, 4.32 MB)
Additional parameters of the Fostex DC-R302 3-Channel Audio Mixer and Stereo Recorder DC-R302:
Inputs 3 x XLR balanced
Reference Input Level: Hi -60, Mid -55, Low -50 dBu (Mic), -10 dBu (Line)
Maximum Input Level: Hi -32, Mid -27, Low -22 dBu (Mic), +10 dBu (Line)
Input Impedance: more than 10k ohm
Phantom power: P48V+-4V (10mA/CH) (Mic)
RTN Input Connector: 3.5mm, stereo mini (unbalanced)
Reference Input Level: -10 dBV
Maximum Input Level: +2 dBV
Input Impedance: more than 10 kohm
Main Output Connector: RCA pin / unbalanced
Reference Output Level: -10 dBV (at reference level input and -12 dBFS signal
Maximum Output Level: +2 dBV (at 0 dBFS)
Load Impedance: more than 10 kohm
Mic Output Reference Output Level: -50 dBV (at reference level input)
Maximum Output Level: -30 dBV
Load Impedance: more than 10k ohm
Performance Frequency response:
Line In - Main out: 20 - 20 kHz +-1dB (at reference level)
Mic In - Main out: 40 - 20 kHz +-3dB (at reference level)
S/N ratio (A-weighted):
Line: more than 95 dB (Input Gain -10 dBV)
MIC: more than 55dB (Max. Input Gain - 150 ohm loaded)
Total harmonic distortion:
Line: less than 0.01% at 1 kHz (Input gain: Line)
Mic: less than 0.1% at 1 kHz (Input gain: Hi)
Power Internal batteries: 4 x AA (alkaline or NiMH) rated range DC 4.8 to 6V
External power supply: AC adapter or equivalent, rated range DC9 to 24V
Dimensions (WxHxD) 5.98 x 1.65 x 4.21" (15.2 x 4.5 x 10.7 cm) w/o camera mount
5.98 x 2.06 x 4.21" (15.2 x 5.25 x 10.7 cm) w/ camera mount
Weight 1.52 lb (690 g)
Packaging Info
Package Weight 2.5 lb
Box Dimensions (LxWxH) 12.4 x 8.0 x 3.9"
The user manual for the Fostex DC-R302 3-Channel Audio Mixer and Stereo Recorder DC-R302 can be downloaded in .pdf format if it did not come with your new portable digital recorders, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Fostex users keep a unique electronic library for Fostex portable digital recorderss, where you can use our link to download the user manual for the Fostex DC-R302 3-Channel Audio Mixer and Stereo Recorder DC-R302.

The user manual lists all of the functions of the Fostex DC-R302 3-Channel Audio Mixer and Stereo Recorder DC-R302, all the basic and advanced features and tells you how to use the portable digital recorders. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Fostex service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Fostex DC-R302 3-Channel Audio Mixer and Stereo Recorder DC-R302. User manuals are also available on the Fostex website under Pro Audio - Recording - Portable Digital Recorders.
