User manual for the FSR DV-WPXT-2C HDMI HD Extender Decora Wallplate DV-WPXT-2C-IVO

The user manual for the FSR DV-WPXT-2C HDMI HD Extender Decora Wallplate DV-WPXT-2C-IVO provides necessary instructions for the proper use of the product Professional Video - Signal Processing & Distribution - Video Extenders & Repeaters.

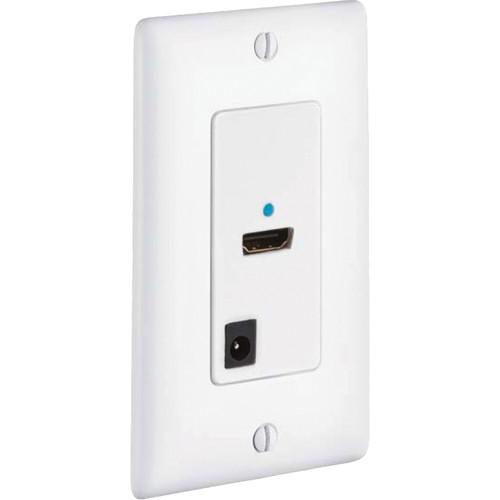

The ivory DV-WPXT-2C HDMI HD Extender Decora Wallplate Set from FSR is comprised of a local transmitter plate and a remote receiver plate that extend an HDMI signal via 2 CATx cables (Cat5 or higher). The wallplate-set extends HD video at a resolution of up to 1080p and enables a video display device to be located up to 140' away from a digital source. The DV-WPXT-2C is ideal for use with projectors, smart boards, HDTVs, flat screens, monitors, and other video display devices. The source is connected to the HDMI input of the local transmitter wallplate and the display is connected to the HDMI output of the remote receiver wallplate. To interconnect, terminate two CATx cables to the termination blocks on the rear of the two wallplates. The extender set draws its power from the included 5V power adapter, used on the receiver side. An LED on the receiver wallplate lights up when the wallplate is powered. Ivory Decora Trim Plates are included with the wallplate-set.
If you own a FSR video extenders & repeaters and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the FSR DV-WPXT-2C HDMI HD Extender Decora Wallplate DV-WPXT-2C-IVO in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the FSR DV-WPXT-2C HDMI HD Extender Decora Wallplate DV-WPXT-2C-IVO:
Transmission Range Resolutions up to 1080p:
140.0' (42.7 m) using Cat 6A
125.0' (38.1 m) using Cat 6
110.0' (33.5 m) using Cat 5e
Video Resolutions 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Audio Support PCM, DVD-audio, Super Audio CD, Dolby true HD, DTS-HD master audio
Material High impact thermoplastic
Connectors Local Wallplate:
1 x HDMI type A, input
1 x 8-position termination block, CATx 1
1 x 8-position termination block, CATx 2
Remote Wallplate:
1 x HDMI type A, output
1 x 8-position termination block, CATx 1
1 x 8-position termination block, CATx 2
1 x barrel power plug
Power Source 5 VDC, 1.2 A power adapter (included)
Dimensions (L x W x D) Each Wallplate:
4.2 x 1.5 x 1.1" (10.6 x 3.7 x 2.7 cm)
Weight 1.0 lb (0.5 kg), for both units
The user manual for the FSR DV-WPXT-2C HDMI HD Extender Decora Wallplate DV-WPXT-2C-IVO can be downloaded in .pdf format if it did not come with your new video extenders & repeaters, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other FSR users keep a unique electronic library for FSR video extenders & repeaterss, where you can use our link to download the user manual for the FSR DV-WPXT-2C HDMI HD Extender Decora Wallplate DV-WPXT-2C-IVO.
