User manual for the FSR PFD-32x24-HDA Pathfinder Component & Audio PFD-32X24-HDA

The user manual for the FSR PFD-32x24-HDA Pathfinder Component & Audio PFD-32X24-HDA provides necessary instructions for the proper use of the product Professional Video - Signal Processing & Distribution - Routers & Switchers.

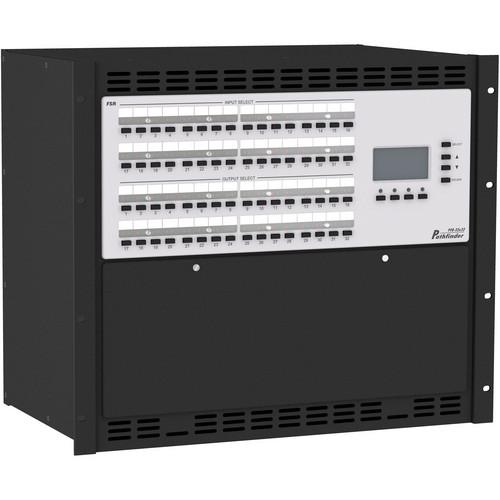

The PFD-32x24-HDA Pathfinder Component & Audio Matrix Switcher from FSR is designed to offer 32 inputs and 24 outputs of matrix switching capability for component and stereo audio signals. It is well suited for use in video & control rooms, educational institutions, government offices, and houses of worship, among many other possible settings and applications.
If you own a FSR routers & switchers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the FSR PFD-32x24-HDA Pathfinder Component & Audio PFD-32X24-HDA in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the FSR PFD-32x24-HDA Pathfinder Component & Audio PFD-32X24-HDA:
Specifications
    Video
    Inputs/Outputs 32x24 component
    Connector Female BNC
    Bandwidth 600MHz at -3dB
    Gain Flatness +/- 1.0dB to 300MHz
    Gain Unity
    Impedance 75 Ohms
    Level 0.7V nominal, 2V maximum p-p
    Audio
    Inputs/Outputs 32x24 balanced stereo audio
    Connector 5-position pluggable captive screw terminal
    Frequency 20Hz to 20KHz
    Audio THD + Noise 0.05% at 1KHz at maximum rated output
    Signal-to-Noise Ratio >90dB
    Impedance Input: 10 kOhms
    Output: 50 Ohms
    Level +22dBm maximum input and output
    Input Gain 0/+14dB switchable per input
    Trim/Gain Control +/- 10dB per input
    Volume -45 to +5db per output volume range
    Testing Parameters Input: 1kHz tone @ 0 dBm
    Output: 600 Ohms load
    Dimensions (HxWxD) Not specified by manufacturer
    Weight Not specified by manufacturer
    The user manual for the FSR PFD-32x24-HDA Pathfinder Component & Audio PFD-32X24-HDA can be downloaded in .pdf format if it did not come with your new routers & switchers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other FSR users keep a unique electronic library for FSR routers & switcherss, where you can use our link to download the user manual for the FSR PFD-32x24-HDA Pathfinder Component & Audio PFD-32X24-HDA.

    The user manual lists all of the functions of the FSR PFD-32x24-HDA Pathfinder Component & Audio PFD-32X24-HDA, all the basic and advanced features and tells you how to use the routers & switchers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from FSR service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the FSR PFD-32x24-HDA Pathfinder Component & Audio PFD-32X24-HDA. User manuals are also available on the FSR website under Professional Video - Signal Processing & Distribution - Routers & Switchers.
