User manual for the FSR PFD-4x4-PC Pathfinder Computer Video & Audio PFD-4X4-PC

The user manual for the FSR PFD-4x4-PC Pathfinder Computer Video & Audio PFD-4X4-PC provides necessary instructions for the proper use of the product Professional Video - Signal Processing & Distribution - Routers & Switchers.

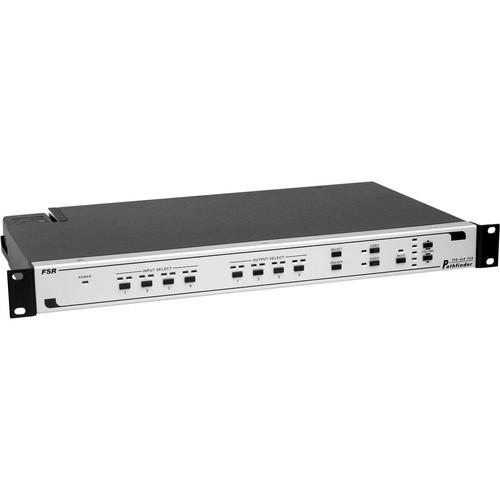

The PFD-4x4-PC Pathfinder Computer Video & Audio Matrix Switcher from FSR is designed to offer 4 inputs and 4 outputs of matrix switching capability for computer video signals. It is well suited for use in video & control rooms, educational institutions, government offices, and houses of worship, among many other possible settings and applications.
If you own a FSR routers & switchers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the FSR PFD-4x4-PC Pathfinder Computer Video & Audio PFD-4X4-PC in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the FSR PFD-4x4-PC Pathfinder Computer Video & Audio PFD-4X4-PC:
Specifications
    Video VIDEO INPUT
    Number: 4
    Input impedance: 75 Ohms for R, G, and B inputs (pins 1, 2, and 3)
    Nominal level: 0.7V p-p
    Maximum level: 3V p-p with 0V offset
    Input return loss: -48dB @ 5MHz, -44dB @ 10MHz

    VIDEO OUTPUT
    Number: 4
    Output impedance: 75 Ohms for R, G, and B outputs (pins 1, 2, and 3)
    Minimum bandwidth: -3dB @ 375MHz, 0.7V p-p
    Typical bandwidth: -3dB @ 410MHz, 0.7V p-p
    Flatness: +/-0.5dB 0 to 250MHz
    Output offset voltage: +/-10 mV maximum (with input floating)
    Gain: unity into 75-Ohm load
    Adjacent channel crosstalk: -62dB @ 10MHz, -47dB @ 100MHz
    Output return loss: -48dB @ 5MHZ, -42dB @ 10MHz

    Sync SYNC IN
    Frequency range: 0 to 200MHz
    Input Impedance: 576 Ohms for H and V inputs (pins 13 and 14)
    Polarity: positive or negative
    Minimum level: 2.2V
    Maximum level: 6V

    SYNC OUT
    Delay: 18nS maximum
    Rise/fall time: 2nS maximum
    Output impedance: 75 Ohms for H and V outputs (pins 13 and 14)
    Polarity: same as input (non-inverting)
    Level: 4.5V min into Hi-Z, 2.2V min into 75 Ohms
    NOTE: RGB switching is performed during vertical blanking interval of the old source for the cleanest possible switch

    Power 100 to 240VAC, 50/60Hz, 25VA
    Dimensions (HxWxD) Not specified by manufacturer
    Weight Not specified by manufacturer
    The user manual for the FSR PFD-4x4-PC Pathfinder Computer Video & Audio PFD-4X4-PC can be downloaded in .pdf format if it did not come with your new routers & switchers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other FSR users keep a unique electronic library for FSR routers & switcherss, where you can use our link to download the user manual for the FSR PFD-4x4-PC Pathfinder Computer Video & Audio PFD-4X4-PC.

    The user manual lists all of the functions of the FSR PFD-4x4-PC Pathfinder Computer Video & Audio PFD-4X4-PC, all the basic and advanced features and tells you how to use the routers & switchers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from FSR service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the FSR PFD-4x4-PC Pathfinder Computer Video & Audio PFD-4X4-PC. User manuals are also available on the FSR website under Professional Video - Signal Processing & Distribution - Routers & Switchers.
