User manual for the FSR T2-DRX IR/Data Receiver T2-DRX
The user manual for the FSR T2-DRX IR/Data Receiver T2-DRX provides
necessary instructions for the proper use of the product Professional Video - Signal Processing & Distribution - Video Extenders & Repeaters.

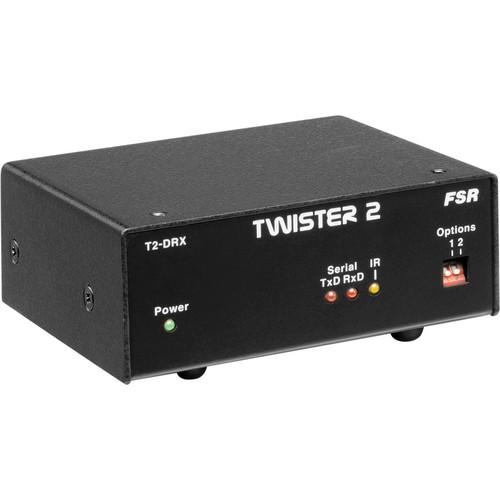

The T2-DRX IR/Data Receiver forms part of FSR's Twister 2 Cat-5 data transmission system. Combined with an optional T2-DTX transmitter, this receiver allows for long-distance transmission of RS-232 data and/or IR control data using affordable, easily available Cat-5/5E/6 cable. This means not only cost savings but ease of installation versus bulkier, traditional data cables.
Using up to 1000 feet of Cat-5 type cable, the T2-DRX receives data and control instructions from the transmitter via its RJ-45 connector, allowing remote control of a projector or other RS-232 controlled device. This makes the receiver ideal for control rooms, classrooms, houses of worship, boardrooms and other applications needing error-free data transmission with no electrical interference.
If you own a FSR video extenders & repeaters and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the FSR T2-DRX IR/Data Receiver T2-DRX in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the FSR T2-DRX IR/Data Receiver T2-DRX:
Specifications
Construction
Metal
Input
RS-232/IR: RJ-45
Output
RS-232: 9-pin DSub IR: 3-pin Phoenix (x2)
Power Source
9VAC @0.2A 12VDC @0.1A
Dimensions (WxHxD)
4.2 x 1.6 x 3.93" (10.7 x 4.1 x 10 cm)
Weight
1.2 lbs (0.54kg)
