User manual for the FSR TPRO-HUB 1-In/8-Out Expansion Hub TPRO-HUB

The user manual for the FSR TPRO-HUB 1-In/8-Out Expansion Hub TPRO-HUB provides necessary instructions for the proper use of the product Professional Video - Signal Processing & Distribution - Video Extenders & Repeaters.

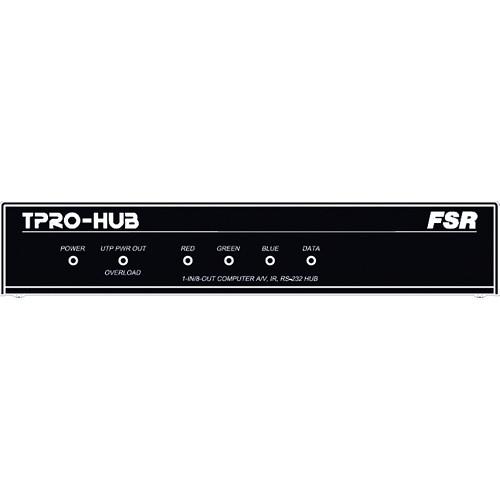

The FSR TPRO-HUB 1-In/8-Out Expansion Hub works with TwisterPro Cat-5 Transmitter/Receiver Systems. Used for more demanding applications, it outputs a transmitter's audio/video/data/IR signals to 8 receivers via low-cost Cat-5 type cable, while simultaneously powering both ends of the system. The signals are then fed to projectors, monitors or other peripherals, with up to 512 outputs possible using cascading multiple hubs.

The TPRO-HUB and Twister Pro system can be rackmounted with an optional 1RU rack mount kit, and is perfect for control rooms, classrooms, houses of worship, boardrooms and other applications needing error-free video and audio transmission with zero electrical interference.
If you own a FSR video extenders & repeaters and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the FSR TPRO-HUB 1-In/8-Out Expansion Hub TPRO-HUB in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the FSR TPRO-HUB 1-In/8-Out Expansion Hub TPRO-HUB:
Construction Metal
Cable Type Cat-5, 5E, 6
Range (when powered by Hub):
600 ft (183m) to Receiver (1000 ft if Receiver also powered)
1000 ft (305m) to Transmitter
Video Signals RGBHV, RGBS, RGsB, RsGsBs, Component, S-Video
Maximum Resolution 1920 x 1080 (1080p)
Impedance Video: 75 Ohms
Audio: 50 Ohms
Input (1) RJ-45
Output (8) RJ-45
Power Source 24VDC @2.7A (max)
Dimensions (WxHxD) 8.47 x 1.6 x 4.88" (21.5 x 4.1 x 12.4 cm)
Weight Not specified by manufacturer
The user manual for the FSR TPRO-HUB 1-In/8-Out Expansion Hub TPRO-HUB can be downloaded in .pdf format if it did not come with your new video extenders & repeaters, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other FSR users keep a unique electronic library for FSR video extenders & repeaterss, where you can use our link to download the user manual for the FSR TPRO-HUB 1-In/8-Out Expansion Hub TPRO-HUB.

The user manual lists all of the functions of the FSR TPRO-HUB 1-In/8-Out Expansion Hub TPRO-HUB, all the basic and advanced features and tells you how to use the video extenders & repeaters. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from FSR service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the FSR TPRO-HUB 1-In/8-Out Expansion Hub TPRO-HUB. User manuals are also available on the FSR website under Professional Video - Signal Processing & Distribution - Video Extenders & Repeaters.
