User manual FSR TPRO-RXD 1RU x 1/4 Wide Brick Receiver TPRO-RXD

Operating instructions and pdf manual for use - FSR TPRO-RXD 1RU x 1/4 Wide Brick Receiver TPRO-RXD User manual, User manual FSR TPRO-RXD 1RU x 1/4 Wide Brick Receiver TPRO-RXD, FSR, TPRO-RXD, 1RU, x, 1/4, Wide, Brick, Receiver, TPRO-RXD,


User manual for FSR TPRO-RXD 1RU x 1/4 Wide Brick Receiver TPRO-RXD

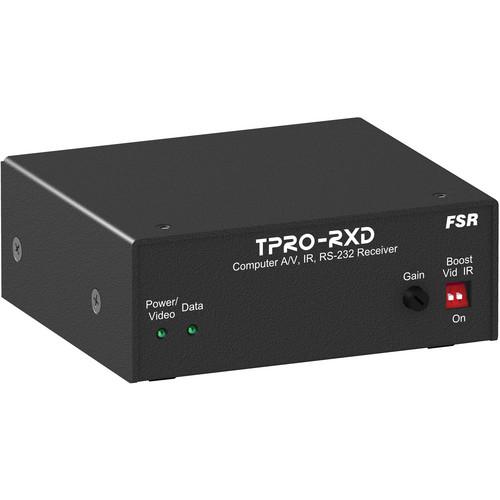

FSR TPRO-RXD 1RU x 1/4 Wide Brick Receiver TPRO-RXD
  • Manufacturer: FSR
  • Basic description and contents of package
  • Product classification: Professional Video - Signal Processing & Distribution - Video Extenders & Repeaters
  • Safety instructions
  • Startup and operation of the video extenders & repeaters
  • Tips for setting up your FSR
  • Settings and expert assistance
  • Contact FSR service
  • Troubleshooting
  • Warranty information
  • Price: 268 USD
We recommend checking out our discussion threads on the FSR TPRO-RXD 1RU x 1/4 Wide Brick Receiver TPRO-RXD, which address similar problems with connecting and setting up Video Extenders & Repeaters FSR.



User manual for the FSR TPRO-RXD 1RU x 1/4 Wide Brick Receiver TPRO-RXD

The user manual for the FSR TPRO-RXD 1RU x 1/4 Wide Brick Receiver TPRO-RXD provides necessary instructions for the proper use of the product Professional Video - Signal Processing & Distribution - Video Extenders & Repeaters.

The TPRO-RXD 1RU x 1/4 Wide Brick Receiver forms part of FSR's TwisterPro UTP Transmitter/Receiver system. Combined with an optional TPRO-TX transmitter, this receiver allows for long-distance transmission of RGB video, stereo audio, RS-232 data and IR control data. Offering the highest level of signal integrity and error-free transmission, this system uses affordable, easily installed Cat-5/5E/6 cable--a major advantage over bulkier, traditional video and data cables.

Through cable runs of up to 1000 feet, the TPRO-RXD uses RJ-45 connections to transmit not only all RS-232 and IR data, but video resolutions up to 1920 x 1080 and 24-bit stereo audio @48kHZ. A single VGA port handles RGB, component, composite or S-Video signals, while RS-232/IR data is carried via 9-pin DSub. Full expandability is possible using separate 1-in/8-out hubs, which can be cascaded to allow up to 512 outputs.

The TPRO-RXD is ideal for control rooms, classrooms, houses of worship, boardrooms and other applications needing reliable video, audio and data transmission with zero electrical interference. Its "brick" style enclosure can be used on any surface, or it can be rack mounted with an optional rack kit.
If you own a FSR video extenders & repeaters and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the FSR TPRO-RXD 1RU x 1/4 Wide Brick Receiver TPRO-RXD in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the FSR TPRO-RXD 1RU x 1/4 Wide Brick Receiver TPRO-RXD:
Specifications
    Construction Metal
    Cable Type Cat-5, 5E, 6
    Range 600 ft (when powered at transmitter)
    1000 ft (when powered at receiver)
    Video Signals RGBHV, RGBS, RGsB, RsGsBs, Component, S-Video
    Maximum Resolution 1920 x 1080 (1080p)
    Impedance Video: 75 Ohms
    Audio: 50 Ohms
    Input Audio/Video: RJ-45
    Output VGA: 15-pin DSub (x1, x1 Loop Through)
    Audio: 3-pin pluggable screw terminals
    RS-232: 9-pin DSub
    IR: 3.5mm mini
    Power Source 24VDC @0.12A
    Dimensions (WxHxD) 4.2 x 4.1 x 1.6" (10.7 x 10.4 x 4.1 cm)
    Weight Not specified by manufacturer
    Packaging Info
    Package Weight 1.4 lb
    Box Dimensions (LxWxH) 8.8 x 5.3 x 3.4"
    The user manual for the FSR TPRO-RXD 1RU x 1/4 Wide Brick Receiver TPRO-RXD can be downloaded in .pdf format if it did not come with your new video extenders & repeaters, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other FSR users keep a unique electronic library for FSR video extenders & repeaterss, where you can use our link to download the user manual for the FSR TPRO-RXD 1RU x 1/4 Wide Brick Receiver TPRO-RXD.

    The user manual lists all of the functions of the FSR TPRO-RXD 1RU x 1/4 Wide Brick Receiver TPRO-RXD, all the basic and advanced features and tells you how to use the video extenders & repeaters. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from FSR service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the FSR TPRO-RXD 1RU x 1/4 Wide Brick Receiver TPRO-RXD. User manuals are also available on the FSR website under Professional Video - Signal Processing & Distribution - Video Extenders & Repeaters.
