User manual Fuji X30 Digital Camera, Fujifilm X30 at

Operating instructions and pdf manual for use - Fuji X30 Digital Camera, Fujifilm X30 at User manual, User manual Fuji X30 Digital Camera, Fujifilm X30 at, Fuji, X30, Digital, Camera, Fujifilm, X30, at,


User manual for Fuji X30 Digital Camera, Fujifilm X30 at

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
Fuji X30 Digital Camera, Fujifilm X30 at
  • Basic description and contents of package
  • Product classification: Photography - Digital Cameras - Point & Shoot Cameras
  • Safety instructions
  • Startup and operation of the point & shoot cameras
  • Tips for setting up your
  • Settings and expert assistance
  • Contact service
  • Troubleshooting
  • Warranty information
  • Price: 499 USD
Fuji X30 Digital Camera, Fujifilm X30 at Fuji X30 Digital Camera, Fujifilm X30 at
Click to enlarge image

We recommend checking out our discussion threads on the Fuji X30 Digital Camera, Fujifilm X30 at, which address similar problems with connecting and setting up Point & Shoot Cameras .



User manual for the Fuji X30 Digital Camera, Fujifilm X30 at

The user manual for the Fuji X30 Digital Camera, Fujifilm X30 at provides necessary instructions for the proper use of the product Photography - Digital Cameras - Point & Shoot Cameras.

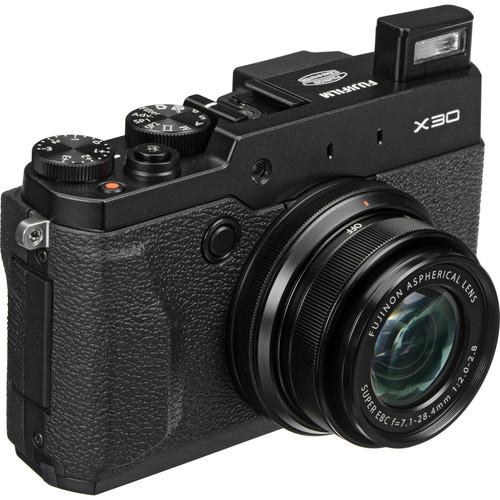

The black Fujifilm X30 Digital Camera is an update to the X20, adding a high-resolution electronic viewfinder, a larger 3" 920k-dot tilting rear LCD screen, a second control ring to adjust aperture and shutter speed settings, and a Classic Chrome film simulation mode. It features a 12 megapixel 2/3" X-Trans CMOS II sensor and an EXR Processor II to provide high quality imagery at up to 12 fps, and a sensitivity range to ISO 12800. This sensor uses a randomized pixel array, removing the need for an optical low-pass filter, thereby allowing the camera to produce sharp and clear imagery.

The main improvement in this camera over the X20 is the a 0.65x-magnification 2.36m-dot OLED Real Time EVF, with adaptive brightness and orientation settings, and only a 0.005 second lag time. For menu navigation and image review, a 3" 920k-dot LCD screen is located on the rear of the camera. The screen tilts to aid in low-angle shooting.

The Intelligent Hybrid AF system uses both contrast- and phase-detection methods to acquire focus as fast as 0.06 sec. The built-in lens is a 28-112mm (35mm equivalent) f/2.0-2.8 lens that integrates three aspheric and two extra-low dispersion glass elements to help reduce aberrations and improve image sharpness and quality.

Full HD movie recording is supported up to 1920 x 1080p at 60fps with a 36Mbps bit-rate for clear, fluid-looking videos. Zoom and exposure can be manually controlled during recording, and stereo audio can be recorded using an optional external microphone.

The X30's film simulation takes advantage of Fuji's long history of film production, allowing you to choose between eleven different Fuji films, as well as the Classic Chrome simulation that provides muted tones and deep color reproduction.
If you own a point & shoot cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Fuji X30 Digital Camera, Fujifilm X30 at in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Fuji X30 Digital Camera, Fujifilm X30 at:
Imaging
Pixels 12 Megapixel
Sensor 2/3" CMOS
File Formats Still Images: JPEG, RAW
Movies: MOV
Max Resolution 12 MP: 4000 x 3000
Aspect Ratio 1:1, 3:2, 4:3, 16:9
Optics
Lens 11 elements in 9 groups
3 Aspherical, 2 ED
EFL: 7.1-28.4mm (35 mm equivalent: 28-112mm)
Aperture: f/2 (W) - 2.8 (T)
Zoom Optical: 4x
Focus Range Wide: 1.6' (48.77 cm) - Infinity
Telephoto: 2.6' (79.25 cm) - Infinity
Wide Macro: 3.9" (9.91 cm) - 9.8' (2.99 m)
Tele Macro: 1.6' (48.77 cm) - 9.8' (2.99 m)
Super-Macro: 0.4" (1.02 cm) - 3.3' (1.01 m)
Exposure Control
ISO Sensitivity Auto, 100-12800
Shutter 30 - 1/4000 second
Exposure Metering Average, Multi, Spot
Exposure Modes Modes: Aperture Priority, Manual, Programmed Auto, Shutter Priority
Shooting Modes Beach
Fireworks
Flower
Landscape
Night
Night (Tripod)
Party/Indoor
Portrait
Portrait Enhancer
Snow
Sports
Sunset
Text
Underwater
White Balance Modes Color Temperature, Custom, Fine, Fluorescent, Fluorescent (Cool White), Fluorescent (Daylight), Fluorescent (Warm White), Incandescent, Shade, Underwater
Burst Rate Up to 12 fps for up to 11 frames
Self Timer 10 Sec, 2 Sec
Interval Recording Yes
Remote Control Camera Remote App (Optional)
Flash
Flash Modes Auto
Commander
Forced On
Forced On/Red-eye Reduction
Red-eye Reduction
Slow Sync
Slow Sync/Red-eye Reduction
Suppressed Flash
Built-in Flash Yes
Maximum Effective Flash Range Wide: 1 - 22.9' (0.30 - 6.98 m)
Telephoto: 1.6 - 16.4' (0.49 - 5.00 m)
External Flash Connection Hot Shoe
Memory
Built-in Memory Not Specified By Manufacturer
Memory Card Type SD
SDHC
SDXC
Recording
Video Recording Yes
Resolution 1920 x 1080: 60 fps, 50 fps, 30 fps, 25 fps, 24 fps
Video
Video Clip Length Not Specified By Manufacturer
Audio Recording Optional External Mic: With Video, Stereo
Viewfinder/Display
Viewfinder Type Electronic
Diopter Adjustment - 4 to +2 m
Viewfinder Coverage 100%
Screen 3" LCD Rear Screen (920,000 pixels)
Screen Coverage 100%
Connectivity/System Requirements
Connectivity 2.5mm Sub-mini (2-Ring), HDMI D (Micro), Micro-USB
Wi-Fi Yes, 802.11b/g/n built-in
Environmental
Operating/Storage Temperature Operating
32 to 104°F (0 to 40°C)
Humidity: 10 - 80%
Waterproofing None
Power
Battery 1x NP-95 Rechargeable Lithium-Ion Battery Pack, 3.6 VDC, 1800 mAh
AC Power Adapter AC-5VT (Included)
Physical
Dimensions (WxHxD) 4.7 x 2.8 x 2.4" / 11.9 x 7.1 x 6.1 cm
Weight 14.9 oz / 422 g

Including battery and memory card

Packaging Info
Package Weight 1.7 lb
Box Dimensions (LxWxH) 6.772 x 5.984 x 3.78"
The user manual for the Fuji X30 Digital Camera, Fujifilm X30 at can be downloaded in .pdf format if it did not come with your new point & shoot cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other users keep a unique electronic library for point & shoot camerass, where you can use our link to download the user manual for the Fuji X30 Digital Camera, Fujifilm X30 at.

The user manual lists all of the functions of the Fuji X30 Digital Camera, Fujifilm X30 at, all the basic and advanced features and tells you how to use the point & shoot cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Fuji X30 Digital Camera, Fujifilm X30 at. User manuals are also available on the website under Photography - Digital Cameras - Point & Shoot Cameras.
