User manual Fujifilm IS-mini LUT Box 16386365

Operating instructions and pdf manual for use - Fujifilm IS-mini LUT Box 16386365 User manual, User manual Fujifilm IS-mini LUT Box 16386365, Fujifilm, IS-mini, LUT, Box, 16386365, Video


User manual for Fujifilm IS-mini LUT Box 16386365

Fujifilm  IS-mini LUT Box 16386365
  • Manufacturer: Fujifilm
  • Basic description and contents of package
  • Product classification: Professional Video - Studio & EFP Equipment - Color Calibration Equipment
  • Safety instructions
  • Startup and operation of the color calibration equipment
  • Tips for setting up your Fujifilm
  • Settings and expert assistance
  • Contact Fujifilm service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Fujifilm IS-mini LUT Box 16386365, which address similar problems with connecting and setting up Color Calibration Equipment Fujifilm.



User manual for the Fujifilm IS-mini LUT Box 16386365

The user manual for the Fujifilm IS-mini LUT Box 16386365 provides necessary instructions for the proper use of the product Professional Video - Studio & EFP Equipment - Color Calibration Equipment.

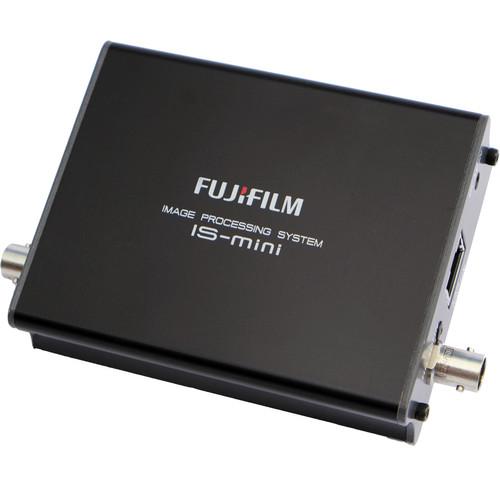

The IS-mini LUT Box from Fujifilm is a color management tool that applies a LUT (look-up table) to an HD-SDI video stream to give your video a particular, pre-defined look. It features both an SDI and an HDMI output so that it can be used with a computer monitor or TV.

Applying a look can serve a number of purposes, and is particularly useful in ensuring consistency when monitoring. In an edit suite it can be used in conjunction with a monitor probe such as the Minolta CS200 as a way to calibrate a computer monitor, especially a non-broadcast model with limited built-in adjustment. On set or in the studio it can be connected to the separately available IS-100 "CCBOXX" so footage can be previewed with any color correct that is expected to be applied in post. In multi-camera systems you can dedicate one IS-mini per camera/monitor pair, giving each a uniquely tailored color profile.

An Ethernet port allows the IS-mini to interface with the IS-100 using standard networking hardware such as switches and cable you might already have in place. To provide a direct link when using it as monitor calibrator there is a mini-USB port.
If you own a Fujifilm color calibration equipment and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Fujifilm IS-mini LUT Box 16386365 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Fujifilm IS-mini LUT Box 16386365:
Specifications
    Connectivity
    Input 1 x HD/SD-SDI on BNC
    Output 1 x HD/SD-SDI on BNC
    1 x HDMI
    SDI Bandwidth 1.5 Gb/s (single-link)
    Supported Standards SDI: SMPTE-292
    Computer Interface 1 x USB 2.0 type B mini
    Networking 1 x Ethernet on RJ-45 connector
    System Requirements
    Software Windows: 8, 7 SP1, Vista SP2, XP SP3
    OS X: 10.9, 10.8, 10.7
    Hardware Free Disk Space: 1 GB or more Display: 1024 x 768 or higher resolution with 24-bit or higher color
    Internet connection for software download
    Third-party monitor probe device and drivers for it
    2 x Free USB ports (compatibility with USB hubs is not assured)
    Supported Probes X-rite: i1 Pro1, X-Rite i1 Pro2
    Jeti
    Minolta CS200
    Photo Research Inc.: PR-655, PR-670*
    Klein: K-10A, K10*

    *Note: The Photo Research Inc. PR-655 and PR-670 and Klein: K-10A and K10 probes require a separately available license to use with FujiFilm's software
    Supported LUT Files Fujifilm: .islut
    Blackmagic Design: DaVinci .cube*
    Filmlight Ltd.: Truelight .cube*

    *Note: DaVinci and Truelight files require an additional license, available separately
    General
    Power Requirements 5 VDC
    Dimensions (W x D x H) 4.1 x 3.2 x 1.4" / 103 x 81 x 29 mm
    Weight 9.2 oz / 260 g
    Packaging Info
    Package Weight 1.25 lb
    Box Dimensions (LxWxH) 11.1 x 6.2 x 1.7"
    The user manual for the Fujifilm IS-mini LUT Box 16386365 can be downloaded in .pdf format if it did not come with your new color calibration equipment, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Fujifilm users keep a unique electronic library for Fujifilm color calibration equipments, where you can use our link to download the user manual for the Fujifilm IS-mini LUT Box 16386365.

    The user manual lists all of the functions of the Fujifilm IS-mini LUT Box 16386365, all the basic and advanced features and tells you how to use the color calibration equipment. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Fujifilm service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Fujifilm IS-mini LUT Box 16386365. User manuals are also available on the Fujifilm website under Professional Video - Studio & EFP Equipment - Color Calibration Equipment.
