User manual Fujinon 3 Mp 15 to 50mm Day/Night Vari-focal 3.3x YV3.3X15SR4A-2

Operating instructions and pdf manual for use - Fujinon 3 Mp 15 to 50mm Day/Night Vari-focal 3.3x YV3.3X15SR4A-2 User manual, User manual Fujinon 3 Mp 15 to 50mm Day/Night Vari-focal 3.3x YV3.3X15SR4A-2, Fujinon, 3, Mp, 15, to, 50mm, Day/Night, Var


User manual for Fujinon 3 Mp 15 to 50mm Day/Night Vari-focal 3.3x YV3.3X15SR4A-2

Fujinon 3 Mp 15 to 50mm Day/Night Vari-focal 3.3x YV3.3X15SR4A-2
  • Manufacturer: Fujinon
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Lenses - Lenses
  • Safety instructions
  • Startup and operation of the lenses
  • Tips for setting up your Fujinon
  • Settings and expert assistance
  • Contact Fujinon service
  • Troubleshooting
  • Warranty information
  • Price: 183 USD
We recommend checking out our discussion threads on the Fujinon 3 Mp 15 to 50mm Day/Night Vari-focal 3.3x YV3.3X15SR4A-2, which address similar problems with connecting and setting up Lenses Fujinon.



User manual for the Fujinon 3 Mp 15 to 50mm Day/Night Vari-focal 3.3x YV3.3X15SR4A-2

The user manual for the Fujinon 3 Mp 15 to 50mm Day/Night Vari-focal 3.3x YV3.3X15SR4A-2 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Lenses - Lenses.

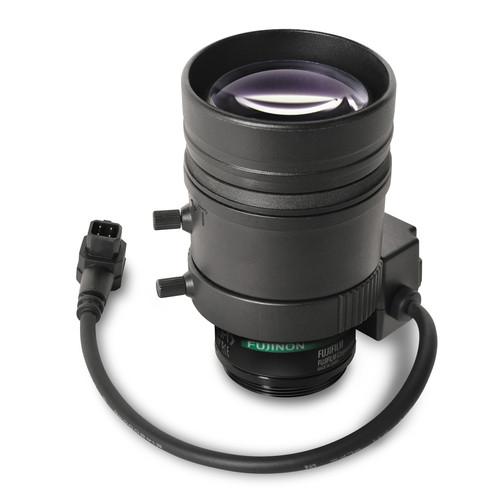

The 3 Mp 15 to 50mm Day/Night Vari-focal 3.3x Zoom Lens from Fujinon supports high-quality image monitoring with support up to a resolution of 3 Mp. Thanks to the advanced design and use of special optic glass, this lens is compatible with color, B & W, and Day/Night cameras. The lens is useful to maximize optical performance with high-accuracy aspheric lens, low-dispersion glass, and high refractive-index glass. The built-in ND filter that is used in T360 digital camera supports high sensitivity cameras.
If you own a Fujinon lenses and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Fujinon 3 Mp 15 to 50mm Day/Night Vari-focal 3.3x YV3.3X15SR4A-2 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Fujinon 3 Mp 15 to 50mm Day/Night Vari-focal 3.3x YV3.3X15SR4A-2:
Mount CS
Focal Length 15 to 50 mm
Focus Manual
Iris Range F1.3 - T360
Iris Manual
Zoom 3.3x manual
Back Focal Distance 8.33 mm
Exit Pupil Position 116 mm
Object Dimensions at M.O.D. 1/2.7"
Wide: 1398 × 731 mm, Tele: 299 × 218 mm
1/3"
Wide: 1080 × 625 mm, Tele:269 × 197 mm
1/4"
Wide: 625 × 417 mm, Tele: 197 × 146 mm
Object Dimensions at M.O.D. (16:9) 1/2.7"
Wide: 1896 × 532 mm, Tele: 329 × 176 mm
1/3"
Wide: 1358 × 466 mm, Tele: 296 × 159 mm
1/4"
Wide: 718 × 327 mm, Tele: 216 × 119 mm
Angular Field of View 1/2.7"
Wide: 20°1' × 15°5', Tele: 6°9' × 4°39'
1/3"
Wide: 18°14' × 13°43', Tele: 5°37' × 4°14'
1/4"
Wide: 13°43' × 10°18', Tele: 4°14' × 3°11'
Angular Field of View (16:9) 1/2.7"
Wide: 21°45' × 12°20', Tele: 6°41' × 3°49'
1/3"
Wide: 19°49' × 11°14', Tele: 6°6' × 3°28'
1/4"
Wide: 14°56' × 8°26', Tele: 4°36' × 2°36'
Focusing Range ∞ to 1.0 m
Weight 2.6 oz (75.0 g)
Packaging Info
Package Weight 0.25 lb
Box Dimensions (LxWxH) 3.8 x 2.6 x 1.9"
The user manual for the Fujinon 3 Mp 15 to 50mm Day/Night Vari-focal 3.3x YV3.3X15SR4A-2 can be downloaded in .pdf format if it did not come with your new lenses, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Fujinon users keep a unique electronic library for Fujinon lensess, where you can use our link to download the user manual for the Fujinon 3 Mp 15 to 50mm Day/Night Vari-focal 3.3x YV3.3X15SR4A-2.

The user manual lists all of the functions of the Fujinon 3 Mp 15 to 50mm Day/Night Vari-focal 3.3x YV3.3X15SR4A-2, all the basic and advanced features and tells you how to use the lenses. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Fujinon service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Fujinon 3 Mp 15 to 50mm Day/Night Vari-focal 3.3x YV3.3X15SR4A-2. User manuals are also available on the Fujinon website under Surveillance - Surveillance Video - Lenses - Lenses.
